Product Details

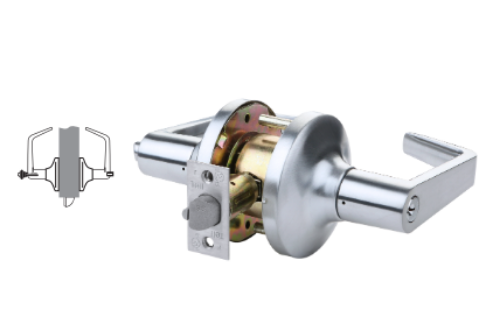

Tell LC1282 CTL Office Lock- ANSI F82
Deadlocking latchbolt operated by lever from either side except when outside lever is locked by push button on inside. When outside lever is locked, operating key in outside lever or operating inside lever unlocks push button and retracts latchbolt. Closing door does not release push button.
Performance:Complies with ANSI A156.2 - 2003, Series 4000, Grade 1, 800,000 cycles, UL listed for 3 hour fire door
Lever:Non-handed, solid cast
Latch:1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw
Backset:2-3/4"
Strike: Square corner 1-1/4" x 4-7/8th ANSI ASA Strike standard. also available with T Strike (1-1/8" x 2-3/4"), and F Strike (full lip)
Door Range:1-3/8" to 2"
Door Preparation:2-1/8" diameter for lever, 1" diameter for latch bolt. Fits standard 161 door prep with through-bolting through the door.
Cylinder:Schlage (SCC), Schlage C 6-pin standard. also available with (SC5) 5-pin, Schlage E (SCE), Arrow A (ARA), Corbin 60 (C06), Corbin 59A1 (C059A1), Corbin Russwin L4 (CL4), Russwin D1 (RD1), Sargent LA (SAL), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA)
IC Keyway Cylinder:Prep. for Best small format interchangeable core Less core (00). Also available with core, Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best F (BF), Best G (BG), Best H (BH), Best J (BJ), Best K (BK), Best L (BL), Best M (BM), Best Q (BQ), Best U (BU), Black construction core (BLK).
Keying:Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT)
Keys:Two nickel silver per lock cylinder
Warranty:5 year limited
