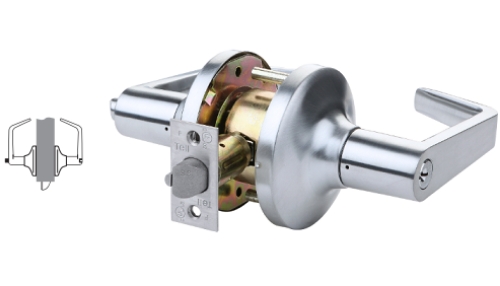

Tell LC2476 Grade 2 Privacy Lock

Tell LC2476 Grade 2 Privacy Lock

Latchbolt operated by lever from either side *Outside lever locked by push button on inside*Unlocked by emergency release on outside,  rotating inside lever, or closing door

Lever:Non-handed, solid cast

Thru-bolts:Thru-bolts standard. Removable available.

Latch:1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw

Backset:2-3/4" Standard. Available with 2-3/8" Backset

Strike: Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard. Also available with T Strike (1-1/8" x 2-3/4"), and F Strike (full lip)

Door Range:1-3/8" to 2"

Door Preparation:2-1/8" diameter for lever, 1" diameter for latch bolt. Fits standard 161 door prep.

Warranty:1 year limited

Model:Tell LC2476BUC, LC2476CTL, LC2476BUC26D, LC2476CTLD6D, LC2476BUC10B, LC2476CTL10B, LC2476BUC3, LC2476CTL3

Performance Complies wth ANSI A156.2, Series 4000, Grade 2, (400,000 cycles), UL listed for 3 hour fire door. ANSI A117.1 American Disabilities Act (ADA)

Chassis Cylindrical, steel - coated with zinc dichromate (corrosion resistance), freewheeling clutch (added security from hammer attacks), independent spring cages.

Chassis conforms to Grade 1 ANSI A156.2 specifications.
