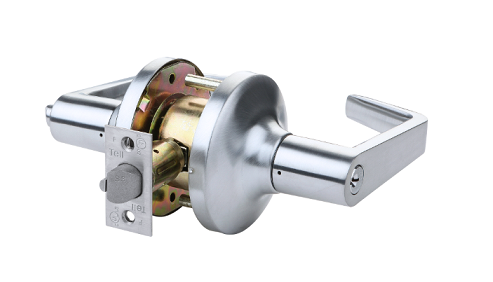

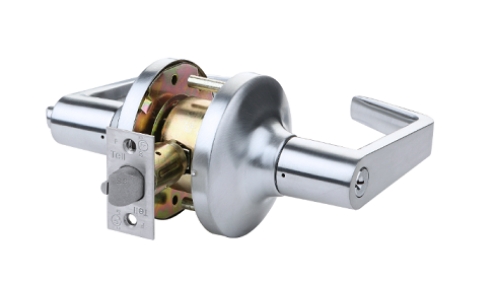

Tell LC2486 Grade 2 Storeroom Lock

Tell LC2486 Grade 2 Storeroom Lock

Latch operated by rotating inside lever or key in outside lever **Outside lever always fixed

Lever:Non-handed, solid cast

Thru-bolts:Thru-bolts standard. Removable available.

Latch:1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw

Backset:2-3/4" Standard. Available with 2-3/8" Backset

Strike: Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard. Also available with T Strike (1-1/8" x 2-3/4"), and F Strike (full lip)

Door Range:1-3/8" to 2"

Door Preparation:2-1/8" diameter for lever, 1" diameter for latch bolt. Fits standard 161 door prep.

Cylinder:Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD)

Keys:Two nickel silver per lock cylinder

Keying:Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT)     Warranty:1 year limited

Model:Tell LC2486BUC, LC2486CTL, LC2486BUC26D, LC2486CTLD6D, LC2486BUC10B, LC2486CTL10B, LC2486BUC3, LC2486CTL3

Performance Complies wth ANSI A156.2, Series 4000, Grade 2, (400,000 cycles), UL listed for 3 hour fire door. ANSI A117.1 American Disabilities Act (ADA)

Chassis Cylindrical, steel - coated with zinc dichromate (corrosion resistance), freewheeling clutch (added security from hammer attacks), independent spring cages.

Chassis conforms to Grade 1 ANSI A156.2 specifications.
