Product Details

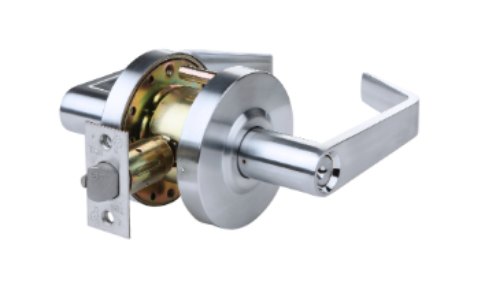

Tell LC2684 CTL Grade 2 Classroom Lock
Latchbolt operated by knob from each sideOutside knob locked or unlocked by key from outsideInside knob always operates latch
Lever:Non-handed
Latch:1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel)
Thru-bolts:Thru-bolts standard. Removable available.
Backset:2-3/8" or 2-3/4
Strike:Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard. T Strike (1-1/8" x 2-3/4"), and F Strike (full lip) available
Door Range: 1-1/2" to 2"
Door Preparation:2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep.
Cylinder:Schlage (SCC), Schlage C 6-pin keyway standard. (SC5) 5-pin, Schlage E (SCE), Arrow A (ARA), Corbin 60 (C06), Corbin 59A1 (C059A1), Corbin Russwin L4 (CL4), Russwin D1 (RD1), Sargent LA (SAL), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA) available
Keying:Available Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), 0-bitted (0BIT)
Keys:Two nickel silver per lock
Warranty: 1 year limited
