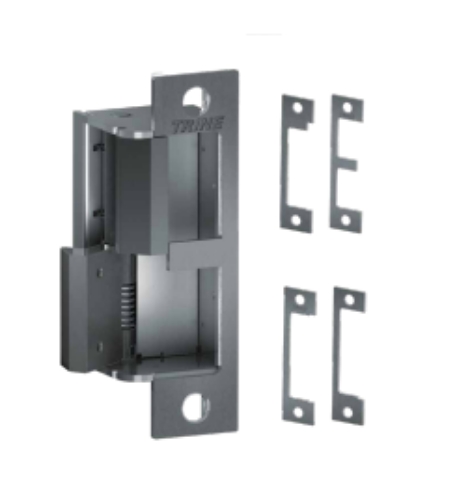

Trine 4100DBDL The Deadbolt Split Latch Solution, 4 Faceplates Included

Trine 4100DBDL The Deadbolt Split Latch Solution, 4 Faceplates Included, 12/24VAC/DC, Low Current Draw, 2,000 lbs. Holding Force Each Latch, Both Latches Fail Secure

The only electric strike with two locking mechanisms that function separately.

Key Features:

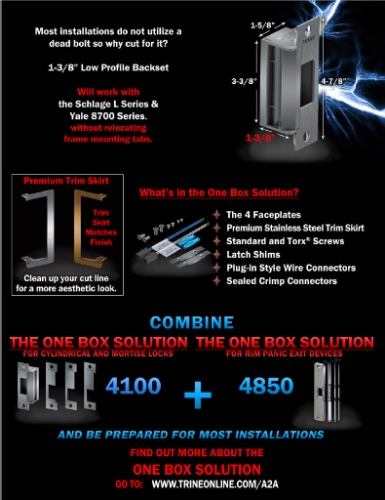

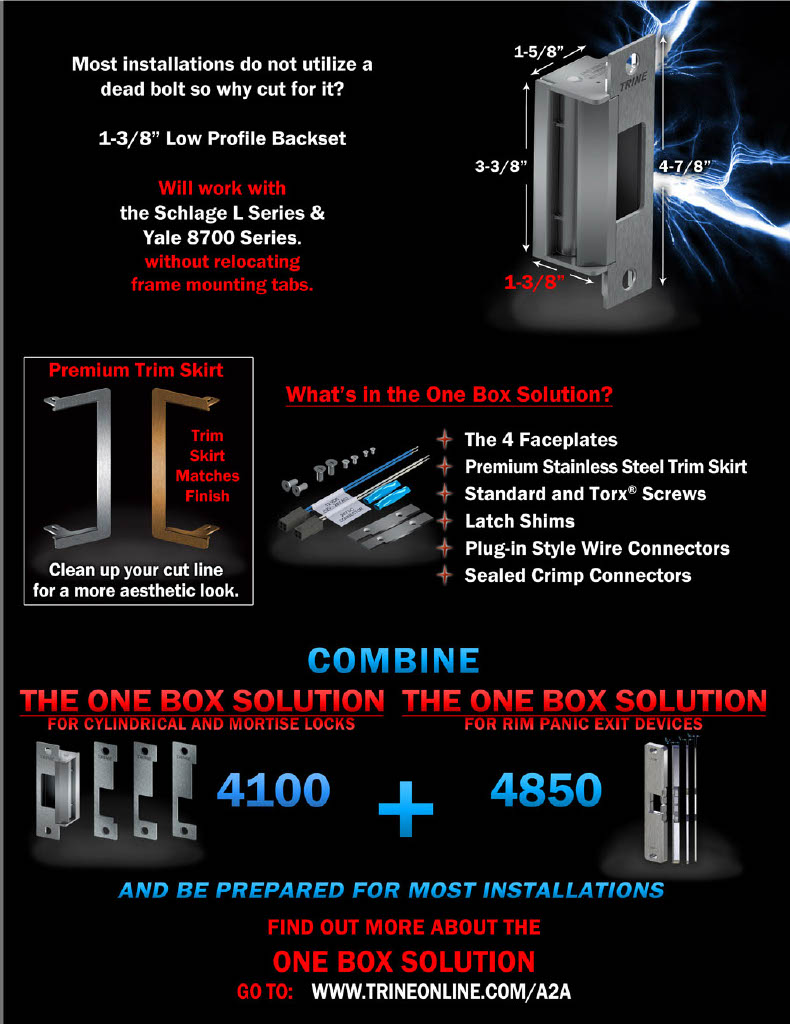

Two independently operated latch systems.Use with mortise locks with dead bolts up to 1 projection.Flexible: Always be prepared! - 4 faceplates included - 12 & 24DC, 12-24 AC, Low Current Draw - 1 Trim Skirt (matching finish)Strong: 2,000 lbs. holding force on each latchDurable: Exceeds 1,000,000 Life CyclesWorks with the Schlage L Series & Yale 8700 Series without relocating mounting tabs.1 - 11/16" backset.Standards:

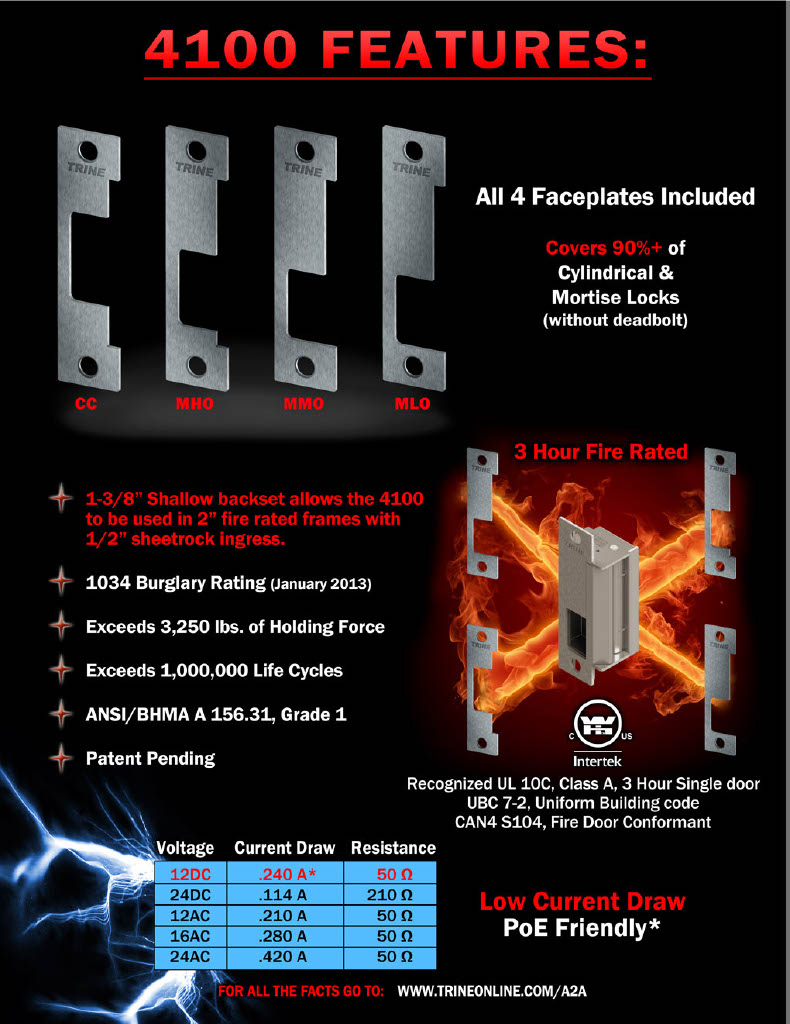

*3-hour fire rated -- UL10C, Fire Tests of Door Assemblies.BHMA Grade 1: ANSI/BHMA A156.5UBC 7-2, Uniform Building Code.CAN4 S104, Standard Method for Fire Tests of Door Assemblies.NFPA 252 - Issue: 1999/01/01 Standard Methods of Fire Tests of Door Assemblies.ANSI/BHMA A156.31-2007Patent pending.Electric Characteristics "Per latch":*

Voltage          Current/Amps    Ohms    Duty             Sound 12DC               0.240                  50         Intm./Cont.     Silent 24DC               0.114                  210       Intm./Cont.      Silent 12AC @ 60hz    0.210                  50         Intm.              Buzz 16AC @ 60hz    0.280                  50         Intm.              Buzz 24AC @ 60hz    0.420                  50         Intm.              Buzz

Model:4100DBDLUS10, 4100USDBDL10B, 4100DBDLUS3, 4100DBDLUS32,4100DBDL-US32D,4100DBDLUS4, 4100RSDBDLUS10, 4100RSUSDBDL10B, 4100RSUS3, 4100RSUS32,4100RSUS32D,4100RSUS4DBDL
