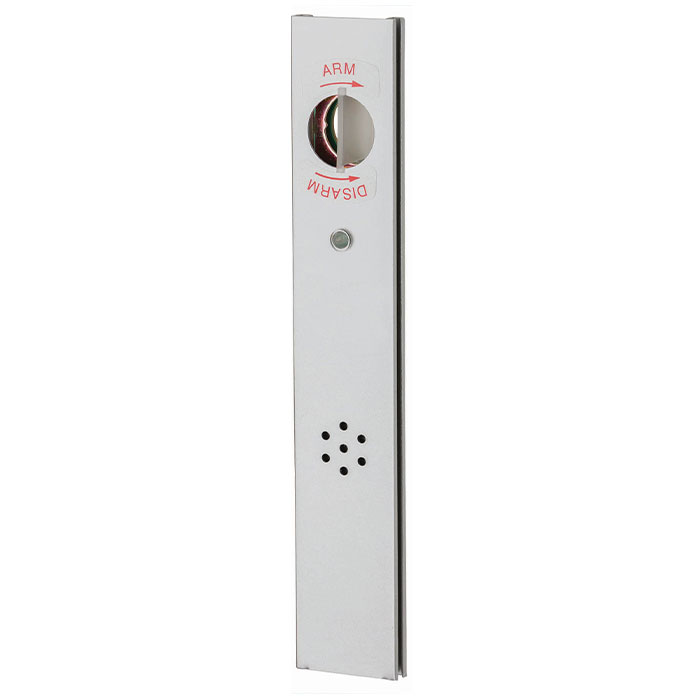

Von Duprin 22ALK, 22 Series Alarm Kit

Von Duprin 22ALK, 22 Series Alarm Kit

The ALK battery alarm kit is a simple yet effective way to deter unauthorized use of an opening. While the exit device is still a means of egress, the ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated.

The alarm kit can be armed or disarmed by key thus allowing the exit device to be set in an armed or disarmed mode.

The horn is rated at 85 decibel. Standard Hex Key dogging not available when using an ALK.

The key switch uses a standard 1'|₄" (32mm) mortise cylinder with a straight cam (Schlage Cam reference B502-191).

The unit operates on one standard 9-volt alkaline battery. When the battery is weak, the horn will emit an intermittent low battery alert signal.

Alarm kits are furnished standard with a RX-request to exit switch.

The ALK includesEMERGENCY EXIT ONLY, ALARM WILL SOUND decal for application on the door.

The ALK can also be hard wired and powered using a PS9 power supply.

Model:Von Duprin, 22ALK, 22-ALK, 3 Ft, 4 Ft, US28, SP28, Aluminum, 313, SP313, Dark Bronze
