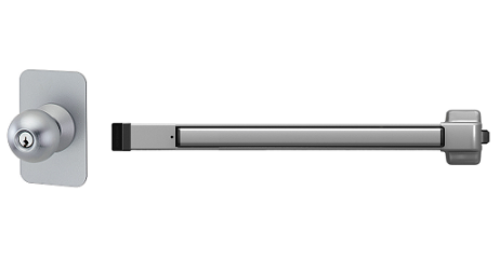

Von Duprin 22K Rim Exit Device with 210K Knob Trim

Product Details

Von Duprin 22K Rim Exit Device with 210K Knob Trim

Key Locks & Unlocks Knob - ANSI Function: 08(IncludesCylinder)

Device Handing:Non-Handed

Device Lengths:3" (914mm), 4" (1219mm). see page 13 (22 Series Catalog)

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

Strike:299 strike Dull Black

Dogging Feature:Hex key dogging standard

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking, 3/4" (19mm) throw

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion

Fits door stiles as narrow as 3 - 13/16" (97mm)

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 22K, SP28, SP313, 22KSP28 , 22KSP313

Von Duprin 22K Rim Exit Device with 210K Knob Trim

SKU: 22K

In Stock

Finish *

Size *

Fire Rated Option *

$651.52

$1,018.00

You saved $366.48

About this item

For all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

Resources

Von Duprin 22K Rim Exit Device with 210K Knob Trim

Key Locks & Unlocks Knob - ANSI Function: 08(IncludesCylinder)

Device Handing:Non-Handed

Device Lengths:3" (914mm), 4" (1219mm). see page 13 (22 Series Catalog)

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

Strike:299 strike Dull Black

Dogging Feature:Hex key dogging standard

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking, 3/4" (19mm) throw

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion

Fits door stiles as narrow as 3 - 13/16" (97mm)

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 22K, SP28, SP313, 22KSP28 , 22KSP313
