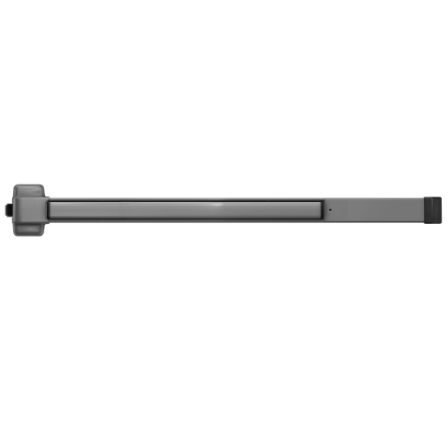

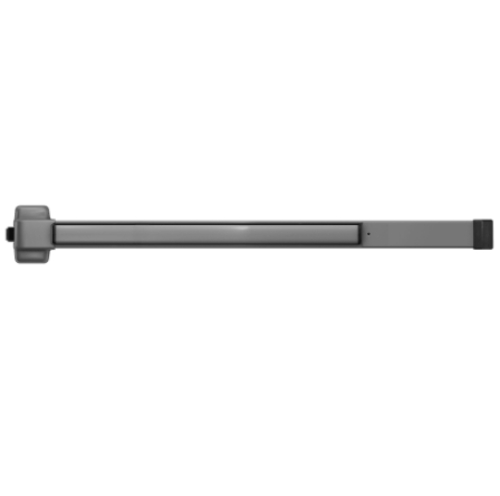

Von Duprin 22EO Rim Touch Bar Exit Device - Exit only

Product Details

Von Duprin 22EO Rim Touch Bar Exit Device - Exit only

Device Handing:Non-Handed.

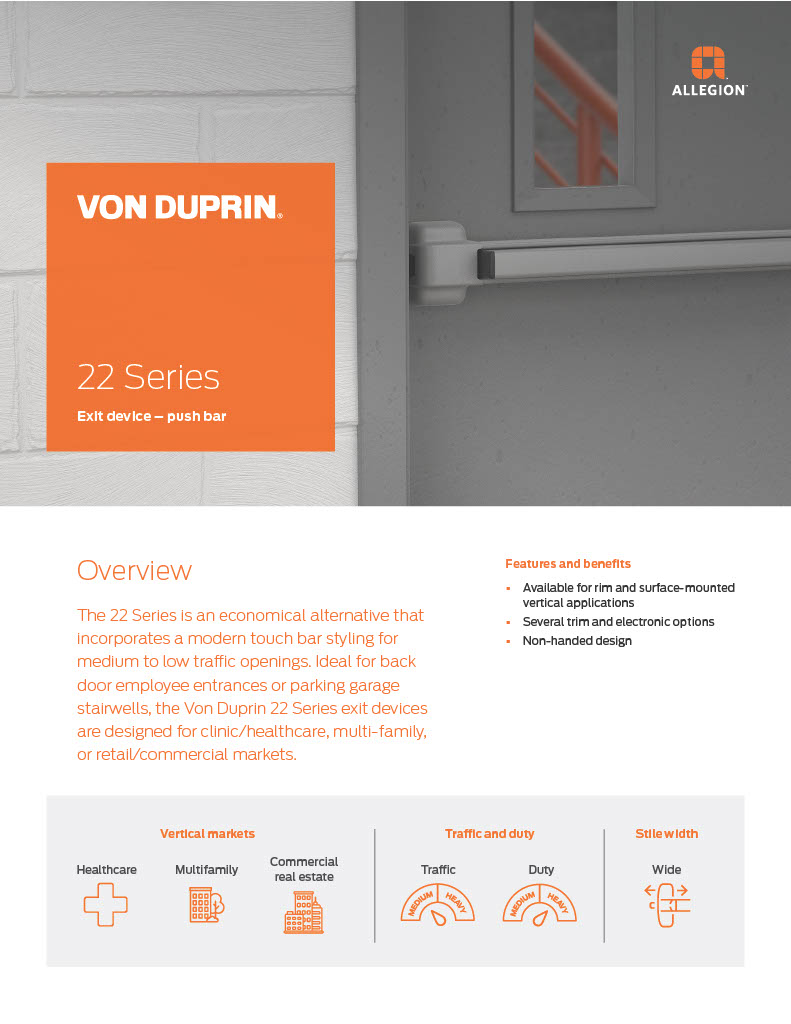

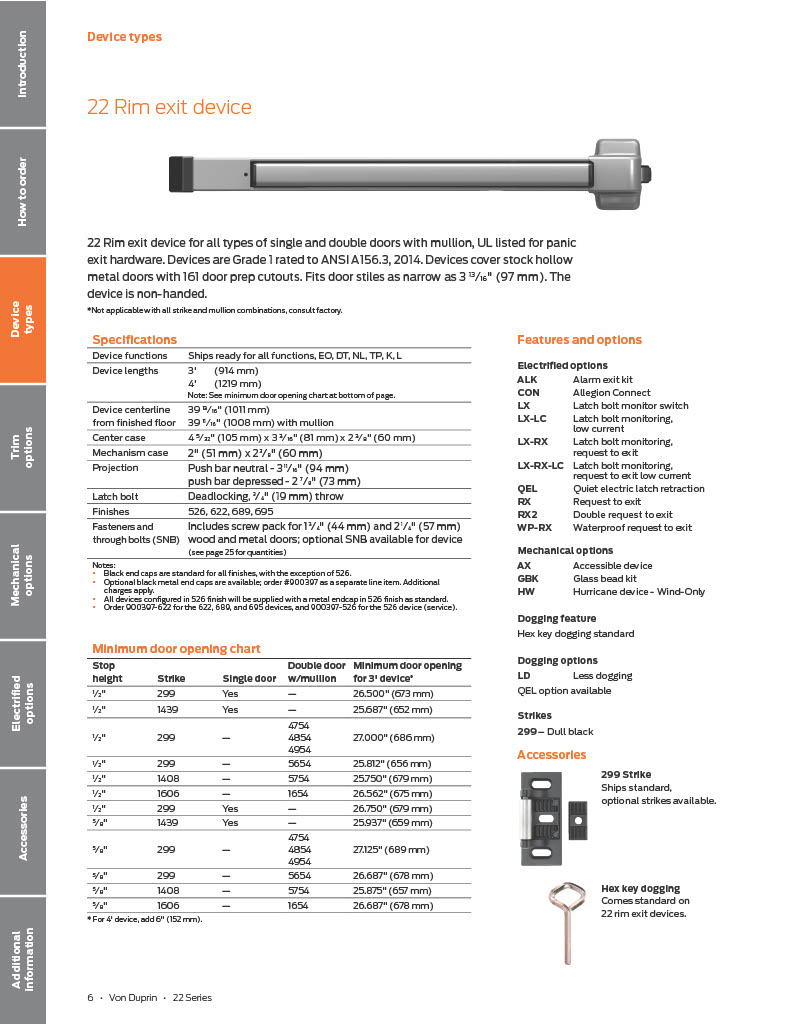

Device Lengths:3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog).

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695) - 622 - Flst Black Coated.

Strike:299 strike Dull Black.

Dogging Feature:Hex key dogging standard.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking, 3/4" (19mm) throw.

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion.

Fits door stiles as narrow as 3 - 13/16" (97mm).

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 22EO, SP28, SP313, 22EOSP28 , 22EOSP313

Von Duprin 22EO Rim Touch Bar Exit Device - Exit only

SKU: 22EO

In Stock

Finish *

Size *

Fire Rated Option *

$349.44

About this item

For all types of single and double doors with mullion, UL listed for Panic Exit Hardware, ClickHereFor the 22 Series Exit device Trims.

Resources

Von Duprin 22EO Rim Touch Bar Exit Device - Exit only

Device Handing:Non-Handed.

Device Lengths:3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog).

Finishes:SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695) - 622 - Flst Black Coated.

Strike:299 strike Dull Black.

Dogging Feature:Hex key dogging standard.

Fasteners:Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device.

Latch Bolt:Deadlocking, 3/4" (19mm) throw.

Device Centerline from Finished Floor:39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion.

Fits door stiles as narrow as 3 - 13/16" (97mm).

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 22EO, SP28, SP313, 22EOSP28 , 22EOSP313

22EO 4 689
Von Duprin 22EO Rim Touch Bar Exit Device - Exit only

Product code: 22EO

In Stock

$672.00

$349.44

22EO 4 689
Von Duprin 22EO Rim Touch Bar Exit Device - Exit only

Product code: 22EO

In Stock

$672.00

$349.44

Parts & Accessories

210DT
Von Duprin 210DT Dummy Trim

Product code: W561BD

In Stock
$102.00

$39.81

210NL
Von Duprin 210NL Night Latch Trim

Product code: W561BD

In Stock
$88.00

$45.76

110-
Von Duprin 110-NL Night Latch Cylinder Mounting Assembly

Product code: W561BD

In Stock
$196.00

$119.34

210K
Von Duprin 210K Knob Trim

Product code: W561BD

In Stock
$346.00

$178.93

230L
Von Duprin 230L Lever Trim

Product code: W561BD

In Stock
$340.00

$176.80

230TP-
Von Duprin 230TP Thumbpiece Trim

Product code: W561BD

In Stock
$337.00

$175.24

230DT
Von Duprin 230DT Dummy Trim

Product code: W561BD

In Stock
$156.00

$81.12

230NL
Von Duprin 230NL Night Latch Trim

Product code: W561BD

In Stock
$173.00

$89.96

230L-BE
Von Duprin 230L-BE Lever Trim, Blank Escutcheon

Product code: W561BD

In Stock
$340.00

$176.80

230TP-BE

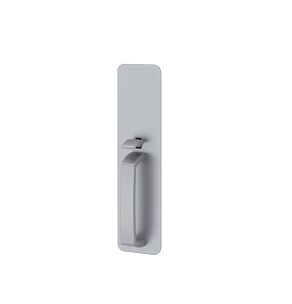

Von Duprin 230TP-BE Thumbpiece Trim, Blank Escutcheon
