Von Duprin 22NL-OP-F Fire Rated Rim Device with 110NL Cylinder Kit

22Rim-NLOP-F
1-Page1-VON22
1-Page2-VON22
1-Page7-VON22
22Rim-NLOP-F
1-Page1-VON22
1-Page2-VON22
1-Page7-VON22
naxt
prev

Product Details

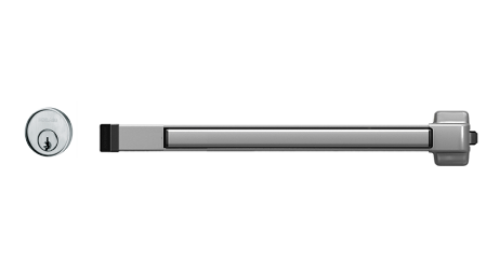

Von Duprin 22NL-OP-F Rim Fire Rated Exit Device with 110NL Cylinder Mounting Assembly

Key Retracts Latchbolt - ANSI Function: 03 (Cylinder must be ordered separately)

Device Handing: Non-Handed

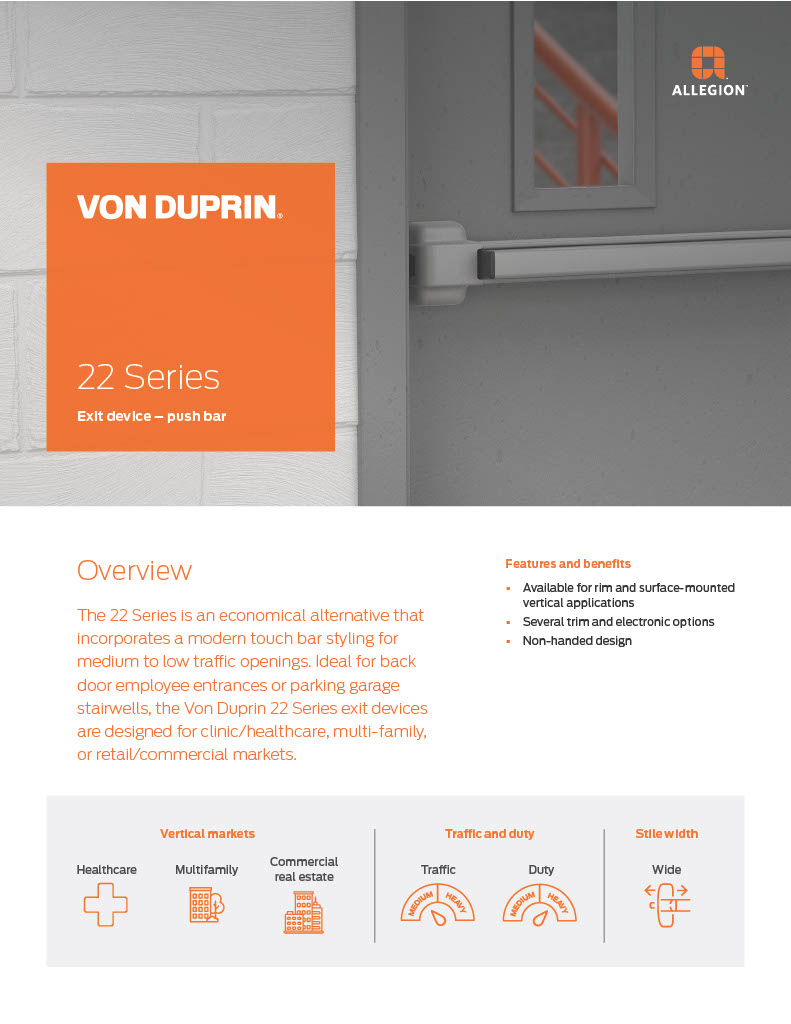

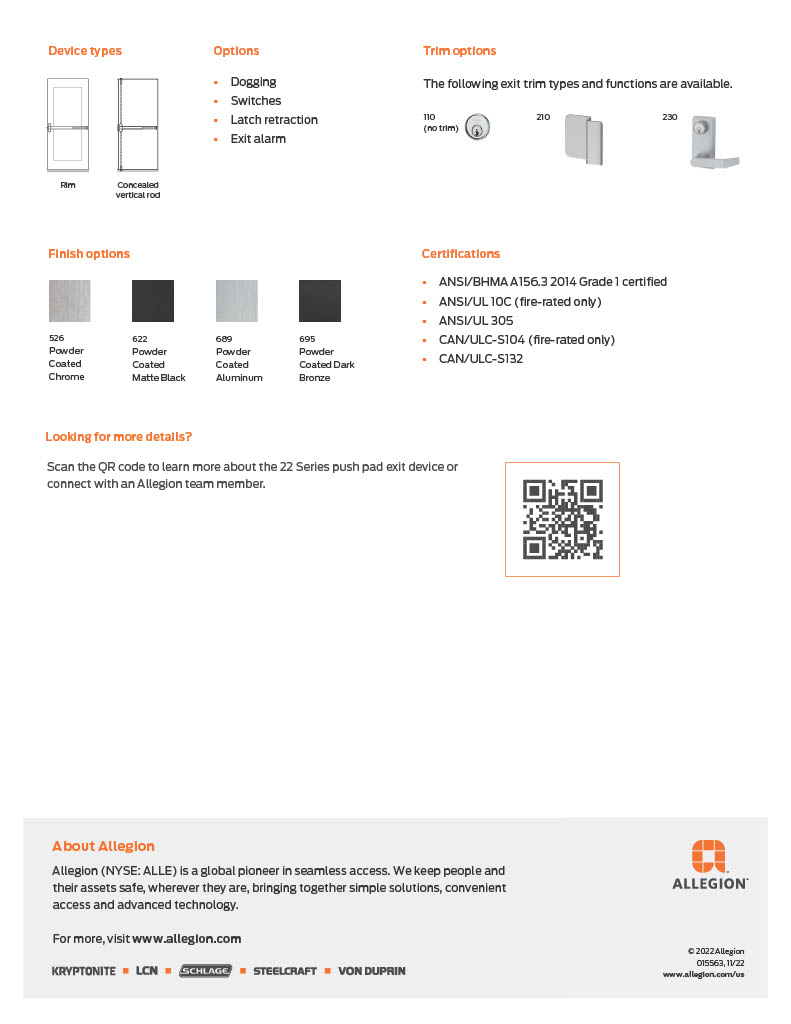

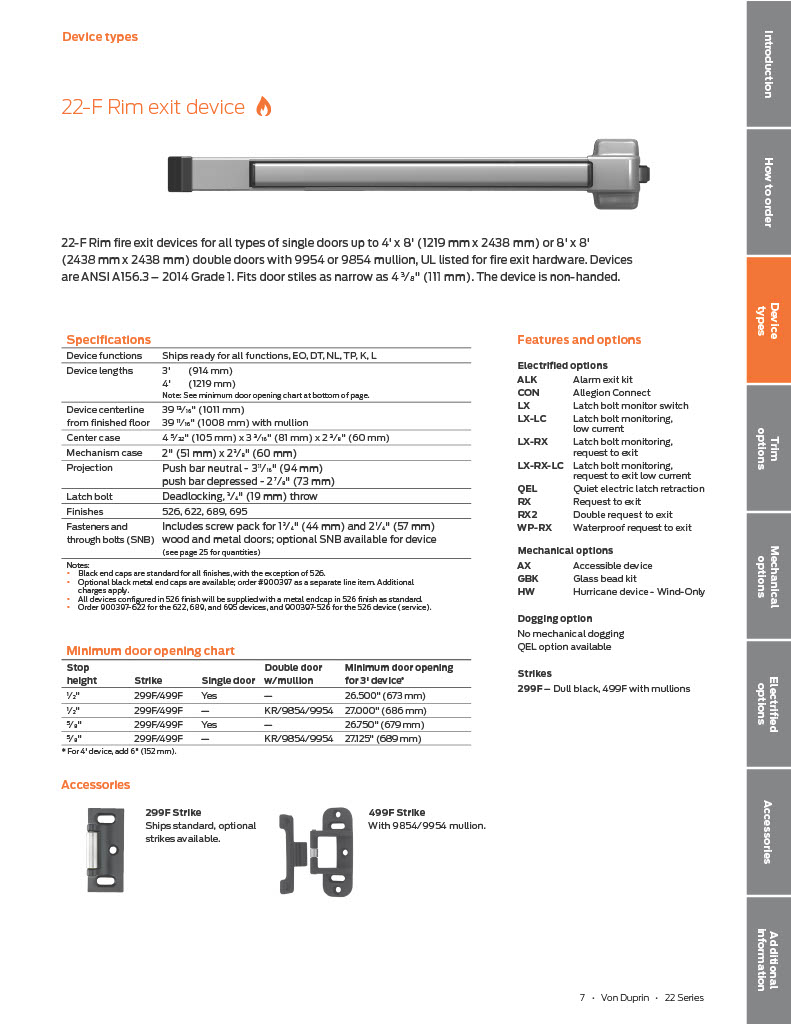

Device Lengths: 3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog)

Finishes: SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

Strike: 299 strike Dull Black

No mechanical dogging

Fasteners: Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device. Sex bolts are required on wood fire doors.

Latch Bolt: Deadlocking, 3/4" (19mm) throw

Device Centerline from Finished Floor: 39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion

Fits door stiles as narrow as 4 3/8" (111mm)

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 22NL-OP-F, SP28, SP313, 22NLOPFSP28 , 22NLOPFSP313

Von Duprin 22NL-OP-F Fire Rated Rim Device with 110NL Cylinder Kit

SKU: 22NLOPF

In Stock

$552.79

Model *

Size *

Finish *

Option *

About this item

For all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

Resources

Von Duprin 22NL-OP-F Rim Fire Rated Exit Device with 110NL Cylinder Mounting Assembly

Key Retracts Latchbolt - ANSI Function: 03 (Cylinder must be ordered separately)

Device Handing: Non-Handed

Device Lengths: 3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog)

Finishes: SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

Strike: 299 strike Dull Black

No mechanical dogging

Fasteners: Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device. Sex bolts are required on wood fire doors.

Latch Bolt: Deadlocking, 3/4" (19mm) throw

Device Centerline from Finished Floor: 39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion

Fits door stiles as narrow as 4 3/8" (111mm)

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 22NL-OP-F, SP28, SP313, 22NLOPFSP28 , 22NLOPFSP313

22Rim-NLOP-F
Von Duprin 22NL-OP-F Fire Rated Rim Device with 110NL Cylinder Kit

Product code: 22NLOPF

In Stock

$552.79

$552.79

22Rim-NLOP-F
Von Duprin 22NL-OP-F Fire Rated Rim Device with 110NL Cylinder Kit

Product code: 22NLOPF

In Stock

$552.79

$552.79

Von Duprin 22NL-OP-F Fire Rated Rim Device with 110NL Cylinder Kit

SKU: 22NLOPF
