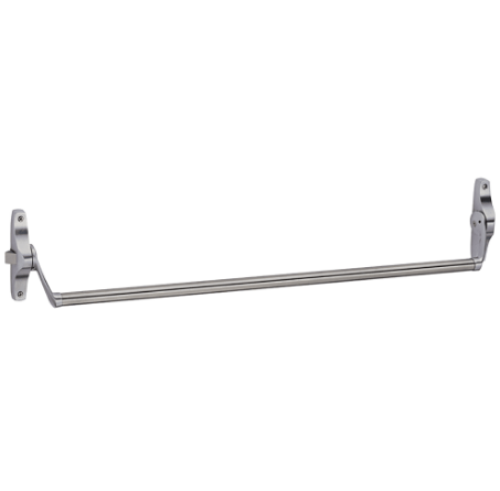

Von Duprin 55-EO Rim Crossbar Exit Device, For 4' Doors

Von Duprin 55-EO Rim Panic Crossbar Exit Device, For 4' Doors  - Exit Only

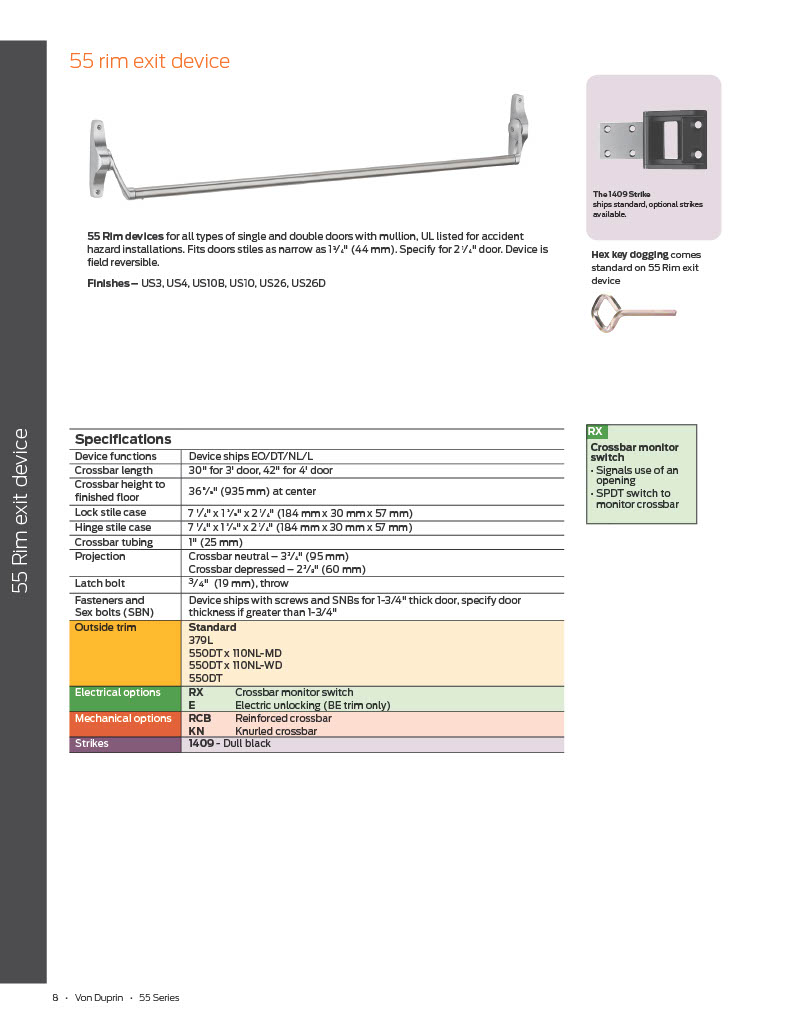

55 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations

Crossbar length:42" (1067mm), Field sizeable.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome

Strike:Device is furnished with standard 1409 strike in dull black finish

Dogging Feature:Hex key dogging standard

Fasteners:Sex nuts and bolts for mounting are included for 1-3/4" (44mm) and 2-1/4" (57mm) thick doors

Latch Bolt:3/4" (19mm) throw latch bolt

Crossbar height to finished floor: 36-13/16" (1011mm) at center

Fits door stiles as narrow as 1-3/4" (44mm)

All 55 series exit devices are UL listed for Accident Hazard or Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade I.

Model:Von Duprin 55EO, US3, US4, US10, US10B, US26, US26D
