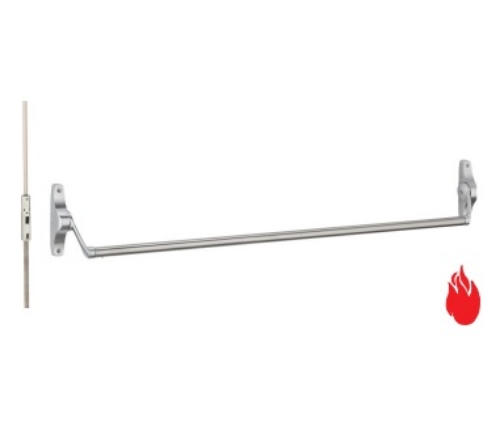

Von Duprin 5547-EO-F Concealed Vertical Rod Fire Rated Device

Von Duprin 5547-EO-F Concealed Vertical Rod Fire Rated Device - Exit Only

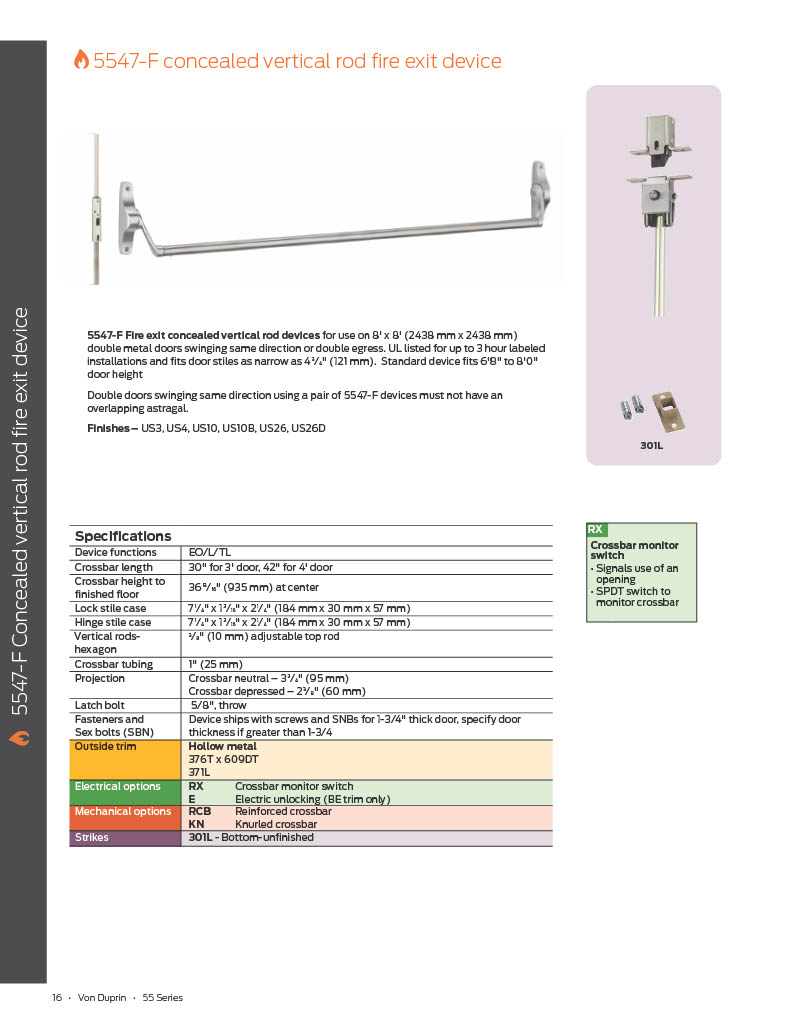

5547-F fire exit concealed vertical rod devices for use on 8' x 8' (2438mm x 2438mm) double metal doors swinging same direction or double egress. UL listed for up to 3 hour labeled installations and fits door stiles as narrow as 4-3/4" (121mm).

Double doors swinging same direction using a pair of 5547-F devices must not have an overlapping astragal.

Crossbar length:42" (1067mm), Field sizeable.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Strike:Device is furnished with standard 301L strike.

Fasteners:Sex nuts and bolts for mounting are included for 1-3/4" (44mm) and 2-1/4" (57mm) thick doors.

Latch Bolt:5/8" (13mm) throw latch bolt.

Crossbar height to finished floor:36-13/16" (1011mm) at center.

All 55 series exit devices are UL listed for Accident Hazard or Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade I.

Model:Von Duprin 5547EO-F, US10B, US26D
