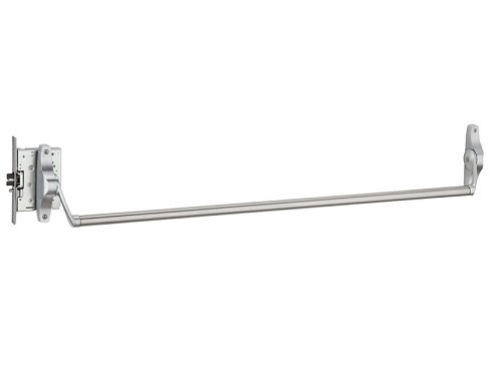

Von Duprin 5575-EO Mortise Lock Crossbar Exit Device

Von Duprin 5575-EO Mortise Lock Crossbar Exit Device - Exit Only

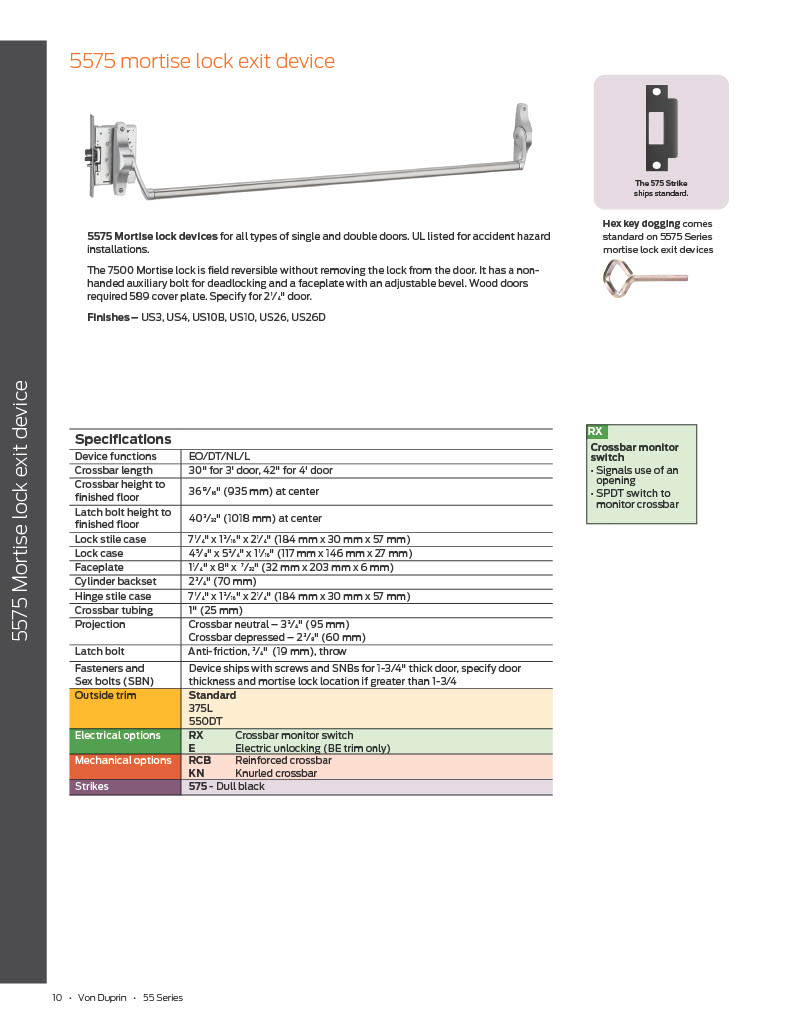

5575 mortise lock devices for all types of single and double doors. UL listed for accident hazard installations.

The 5575 mortise lock is equipped with a 3/4" (19mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Wood doors required 589 cover plate.

Crossbar length:42" (1067mm), Field sizeable.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Strike:Device is furnished with standard 575 strike in dull black finish.

Lock stile case:7-1/4" x 1-3/16" x 2-1/4" (184mm x 30mm x 57mm). Hinge stile case:7-1/4" x 1-3/16" x 2-1/4" (184mm x 30mm x 57mm). Lock case:4-5/8" x 5-3/4" x 1-1/16" (117mm x 146mm x 27mm). Faceplate:1-1/4" x 8" x 7/32" (32mm x 203mm x 6mm). Cylinder backset:2-3/4" (70mm). Crossbar tubing:1" (25mm).

Fasteners:Sex nuts and bolts for mounting are included for 1-3/4" (44mm) and 2-1/4" (57mm) thick doors.

Latch Bolt:3/4" (19mm) throw latch bolt.

Crossbar height to finished floor 36-13/16" (935mm) at center. Latch bolt height to finished floor 40-3/32" (1018mm) at center.

All 55 series exit devices are UL listed for Accident Hazard or Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade I.

Model:Von Duprin 5575EO, US3, US4, US10, US10B, US26, US26D
