Von Duprin 9827EO-F / 9927EO-F Surface Vertical Rod Device - Fire Rated

Product Details

Von Duprin 9827EO-F / 9927EO-F Surface Mounted Vertical Rod Device*- Fire Rated*- Exit Only

9827-F/9927-Ffire exit surface mounted vertical rod device pairs of doors up to 8x 10(2438mm x 3048mm) , UL listed for Fire Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

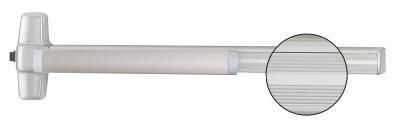

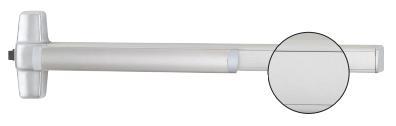

The 9827-F device has a smooth mechanism case and the 9927-F device has a grooved case.

Device Handing:Non-Handed.

Device Lengths:3' (914mm), 4' (1219mm)

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Dogging Feature:No mechanical dogging.

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw.

Strike:Top - 299F (499F LBR) Dull Black, Bottom 304L - Unfinished.

Fasteners: Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available

Finishes: US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only

Dimensions:

Device lengths:   -3' - 2'4' to 3' (711mm to 914 mm) Door Size.                         - 4' - 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-5/8" (1006 mm).                                Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection:  - Pushbar Neutral 3-13/16" (97 mm).                   - Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model:Von Duprin 9827-F, 9927-F, 9827EO-F, 9927EO-F, 9827/9927EO-F, 9927F, 9827EOF, 9927EOF, 9827/9927EOF, RX9827EO, ALK9827F, ALK9927F, US3, US4, US10, US10B, US26, US26D, US28, US32D

Von Duprin 9827EO-F / 9927EO-F Surface Vertical Rod Device - Fire Rated

SKU: 98/99EO27F

In Stock

Model *

9827-F Series - Smooth mechanism case
9827-F Series - Smooth mechanism case
9927-F Series - Grooved mechanism case
9927-F Series - Grooved mechanism case

Size *

Finish *

Anodized, Aluminum - US28 (628)
Anodized, Aluminum - US28 (628)
Chromium, Dull - US26D (626) [+$207.90]
Chromium, Dull - US26D (626) [+$207.90]
Duranodic Dark Bronze - 313 (710) [+$159.72]
Duranodic Dark Bronze - 313 (710) [+$159.72]
Satin Stainless Steel - US32D (630) For 98 only [+$337.92]
Satin Stainless Steel - US32D (630) For 98 only [+$337.92]
Bronze, Dull - US10 (612) [+$281.16]
Bronze, Dull - US10 (612) [+$281.16]
Brass, Dull - US4 (606) [+$359.70]
Brass, Dull - US4 (606) [+$359.70]
Chromium, Polished - US26 (625) [+$500.94]
Chromium, Polished - US26 (625) [+$500.94]
Brass, Polished - US3 (605) [+$500.94]
Brass, Polished - US3 (605) [+$500.94]
Satin Nickel - US15 (619) For 98 only [+$500.94]
Satin Nickel - US15 (619) For 98 only [+$500.94]
Black - 315 (711) [+$811.14]
Black - 315 (711) [+$811.14]

Electrical Options *

$2,076.36

$3,146.00

You saved $1,069.64

About this item

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1, Clickherefor the 88/99 Series Trims section.

Von Duprin 9827EO-F / 9927EO-F Surface Mounted Vertical Rod Device*- Fire Rated*- Exit Only

9827-F/9927-Ffire exit surface mounted vertical rod device pairs of doors up to 8x 10(2438mm x 3048mm) , UL listed for Fire Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

The 9827-F device has a smooth mechanism case and the 9927-F device has a grooved case.

Device Handing:Non-Handed.

Device Lengths:3' (914mm), 4' (1219mm)

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Dogging Feature:No mechanical dogging.

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw.

Strike:Top - 299F (499F LBR) Dull Black, Bottom 304L - Unfinished.

Fasteners: Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available

Finishes: US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only

Dimensions:

Device lengths:   -3' - 2'4' to 3' (711mm to 914 mm) Door Size.                         - 4' - 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-5/8" (1006 mm).                                Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection:  - Pushbar Neutral 3-13/16" (97 mm).                   - Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model:Von Duprin 9827-F, 9927-F, 9827EO-F, 9927EO-F, 9827/9927EO-F, 9927F, 9827EOF, 9927EOF, 9827/9927EOF, RX9827EO, ALK9827F, ALK9927F, US3, US4, US10, US10B, US26, US26D, US28, US32D

F9827
Von Duprin 9827EO-F / 9927EO-F Surface Vertical Rod Device - Fire Rated

Product code: 98/99EO27F

In Stock

$3,146.00

$2,076.36

F9827
Von Duprin 9827EO-F / 9927EO-F Surface Vertical Rod Device - Fire Rated

Product code: 98/99EO27F

In Stock

$3,146.00

$2,076.36
