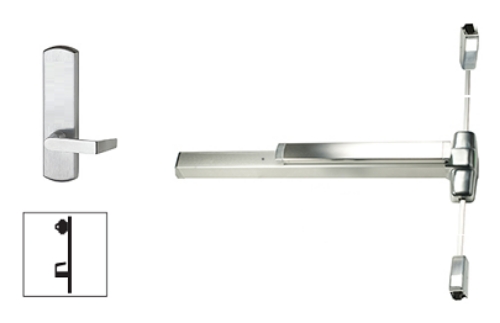

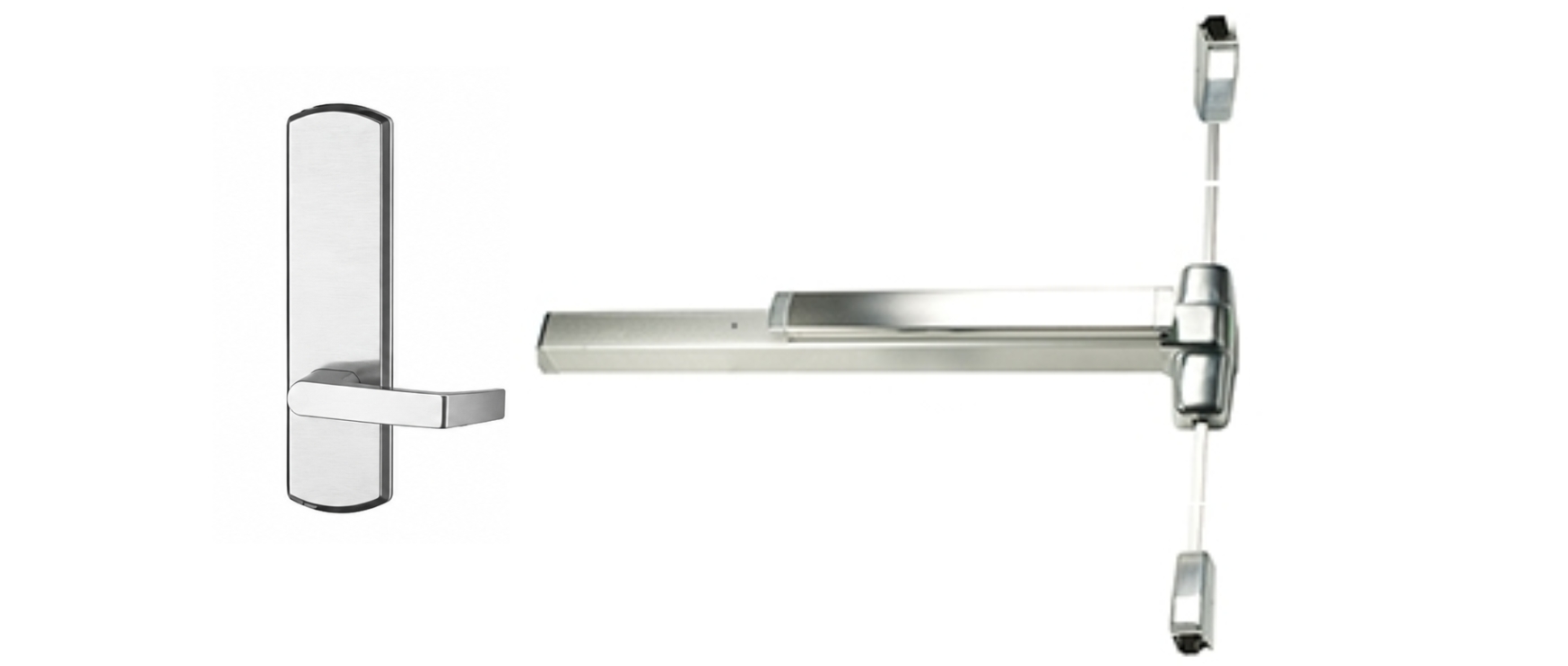

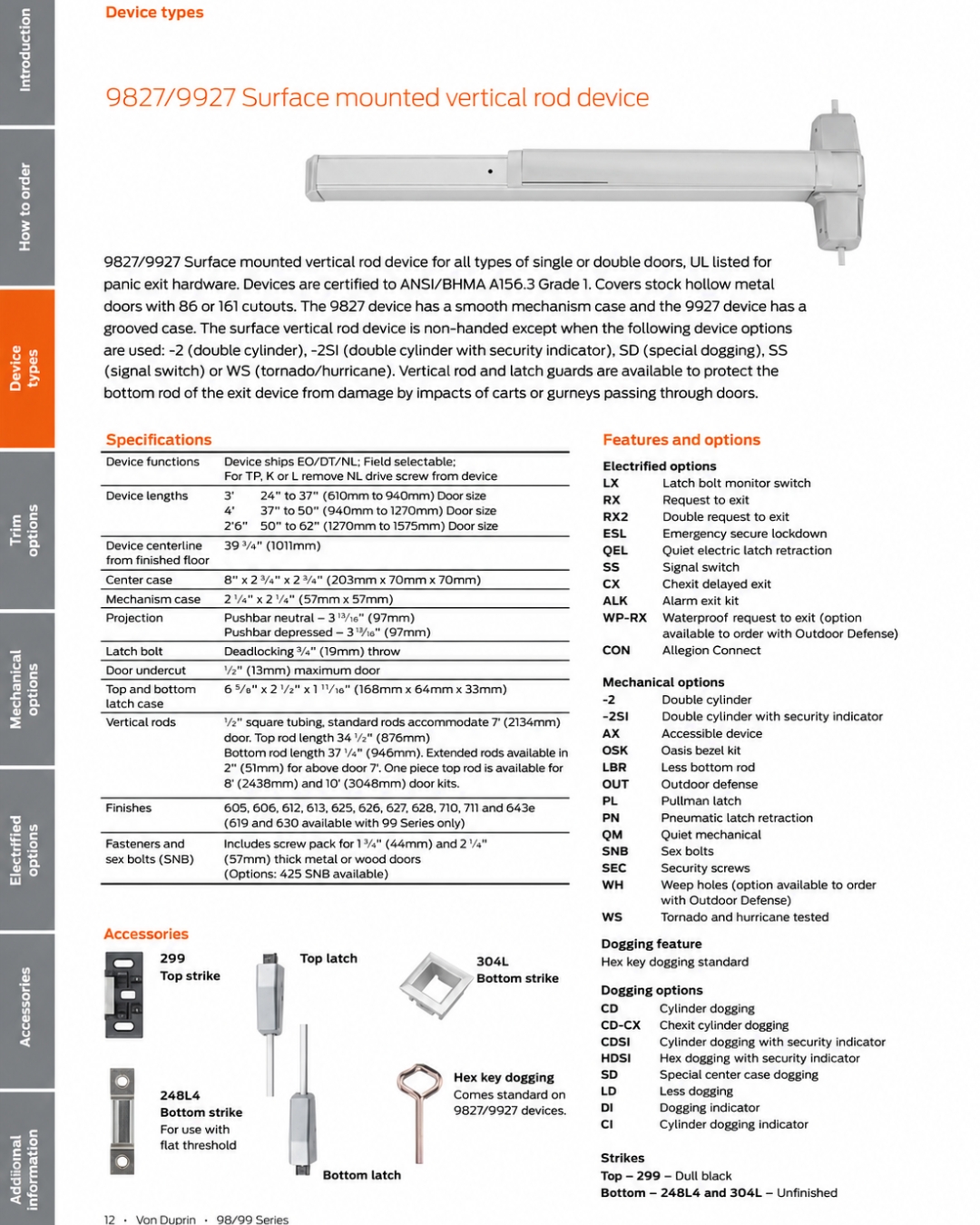

Von Duprin 9827L-BE / 9927L-BE Surface Vertical Rod Panic Exit Device, with Blank Escutcheon

Von Duprin 9827L-BE / 9927L-BE Surface Vertical Rod Panic Exit Device, with Blank Escutcheon

98EO and 99EO rim exit devices for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

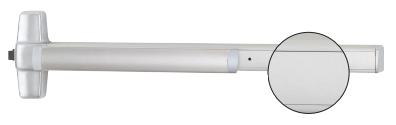

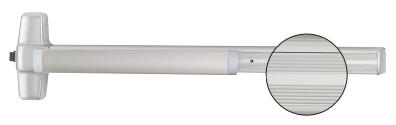

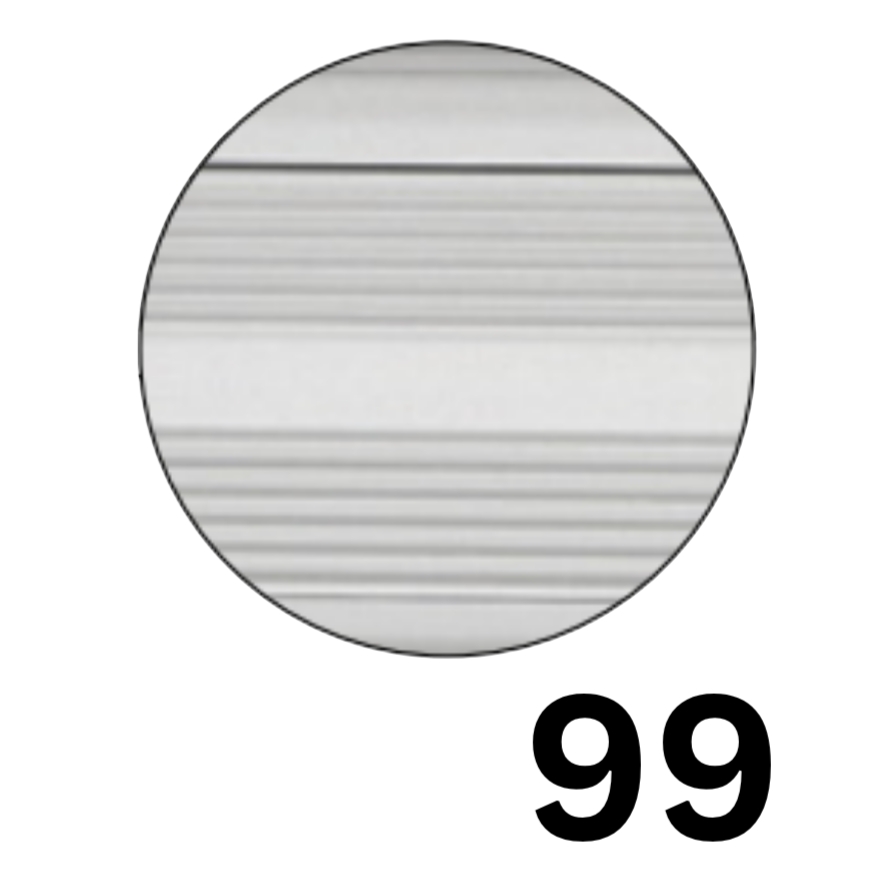

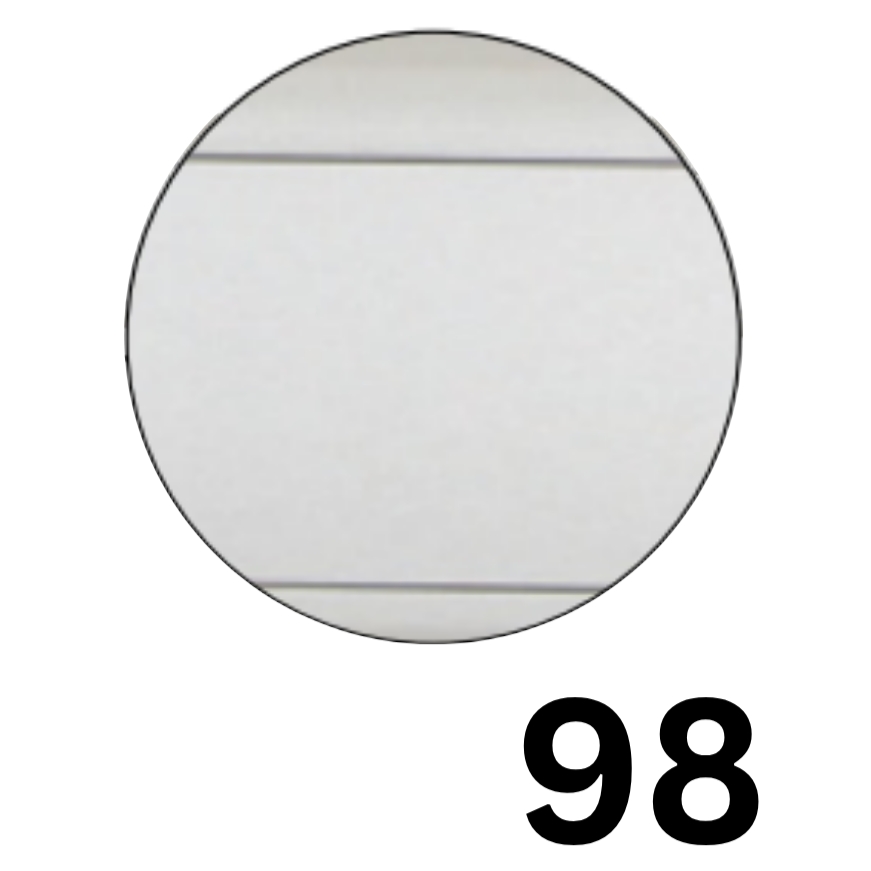

The 98 device has a smooth mechanism case and the 99 device has a grooved case.

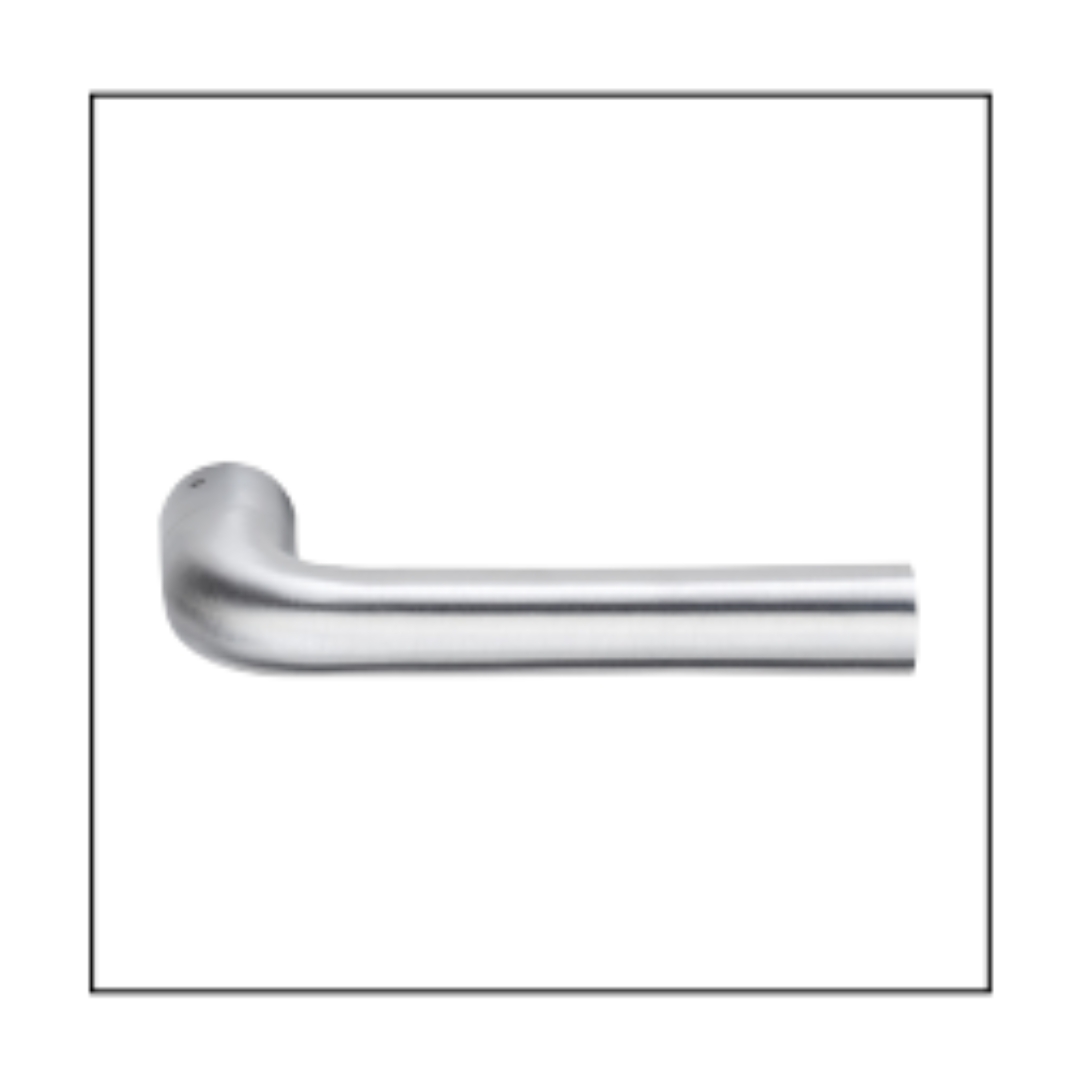

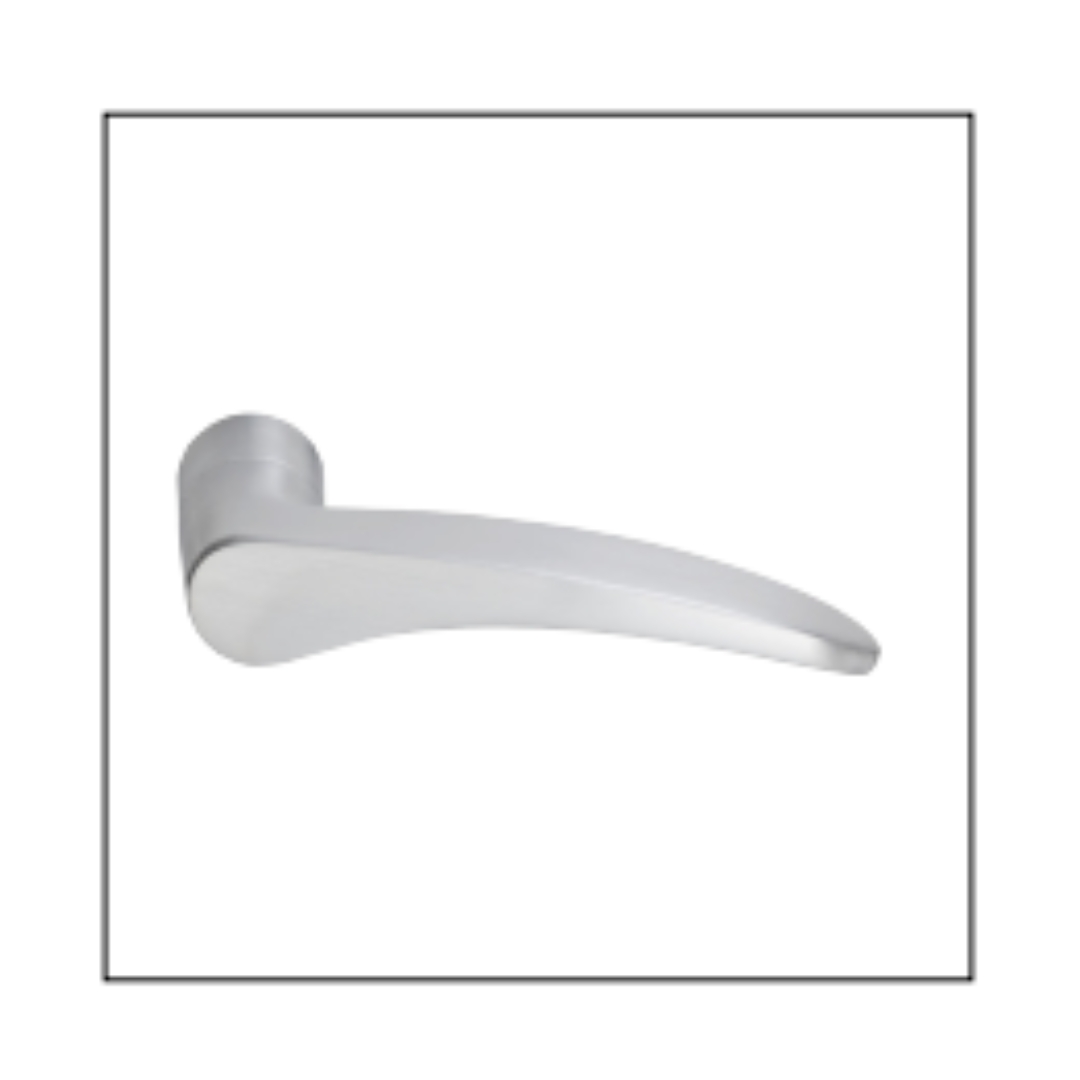

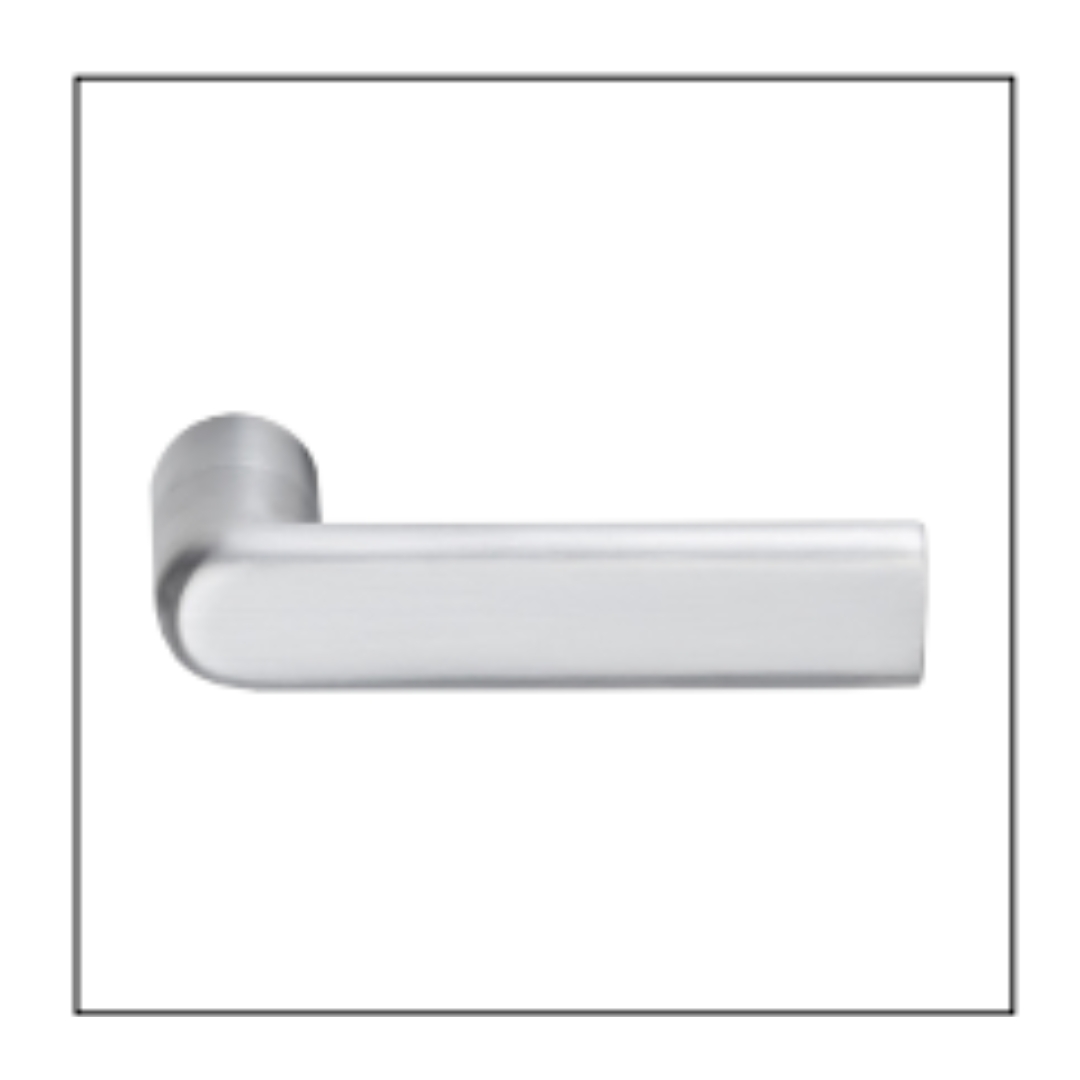

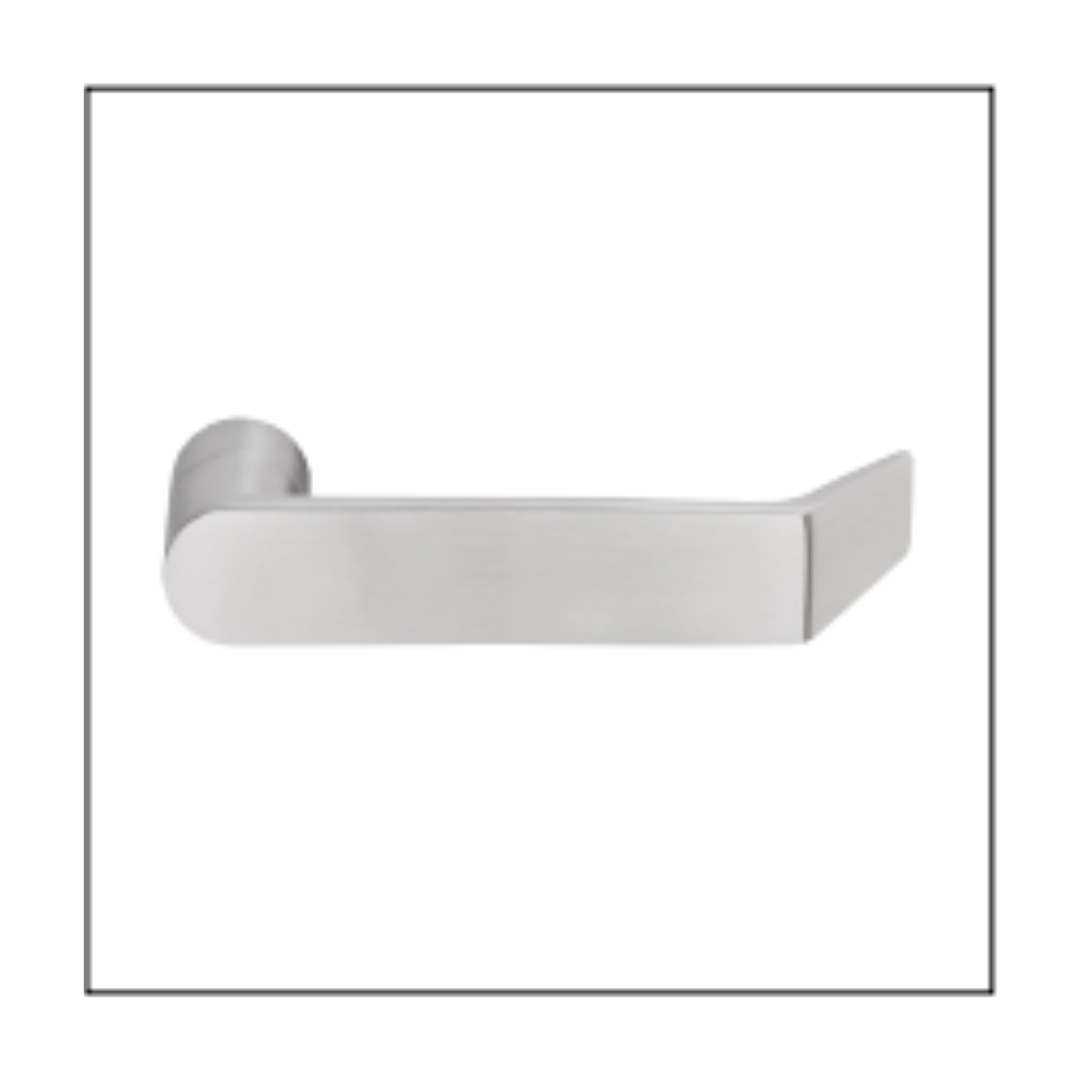

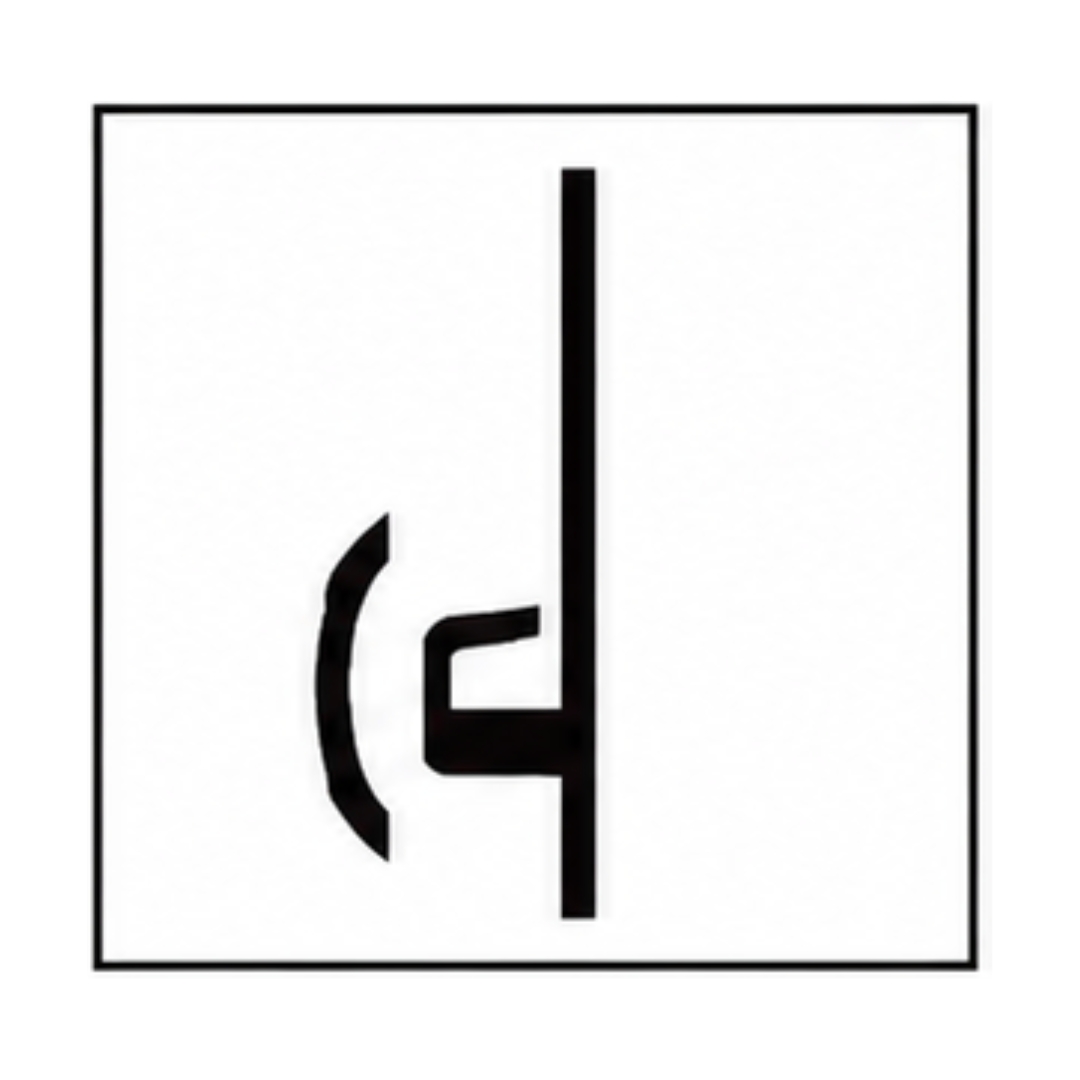

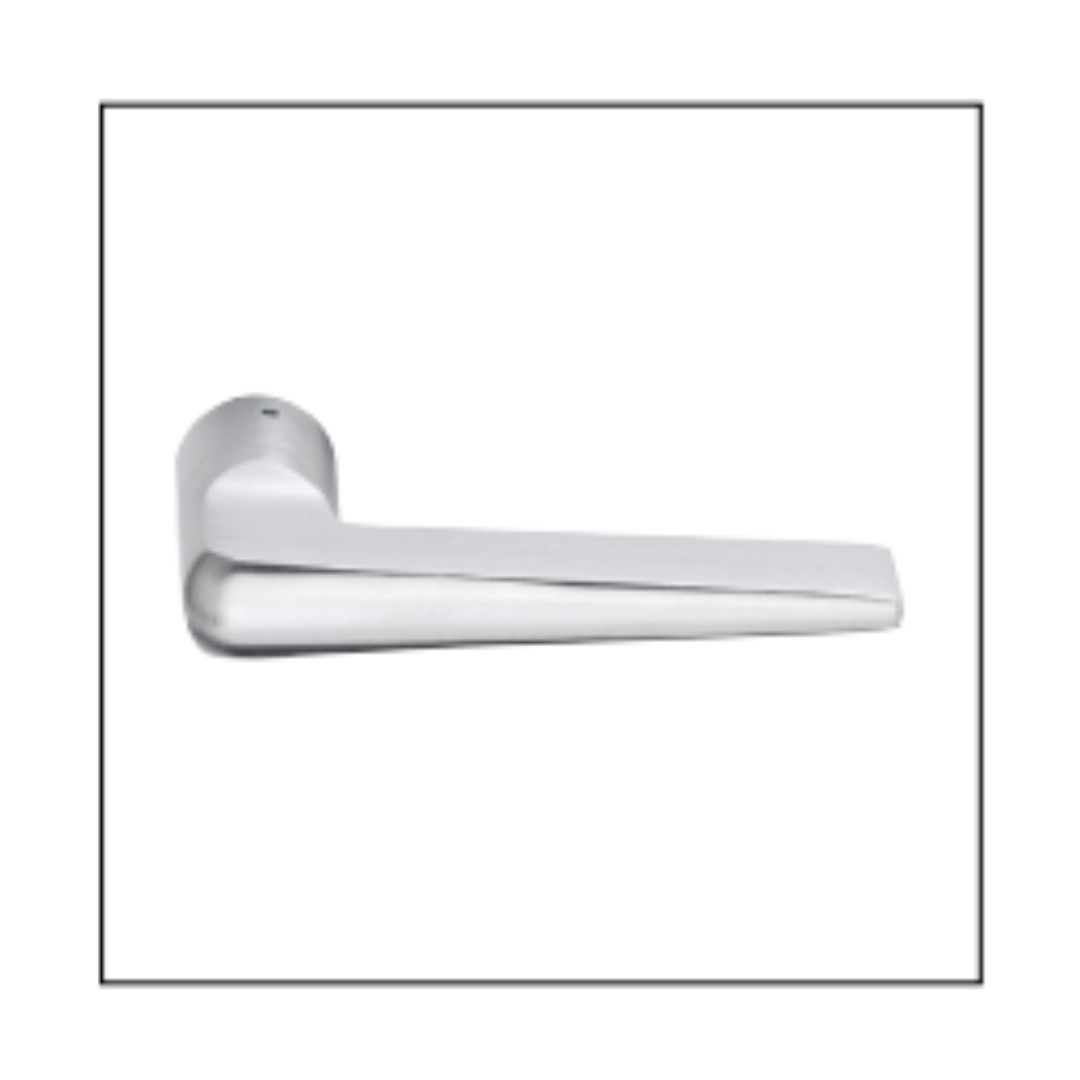

LBE - Lever, blank escutcheon:Always operable (no cylinder).

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging Feature:Hex key dogging standard.

Latch Bolt:3/4" (19mm) throw latch bolt.

Strike:Device is furnished with standard 299 strike in dull black finish.

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available.

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only

Dimensions:

Device lengths: 3'2'4' to 3' (711mm to 914 mm) Door Size 4'2'10" to 4' (864 mm to 1219 mm) Door Size

Device Centerline from Finished Floor:   39-13/16" (1011 mm)  -  39-11/16" (1008 mm) with Mullion

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 9827BE, 99BE26D, 9927BE3, 9927BE, 98/99, 98/99EO, RX98, RX99, RX9827BE, RX99BE, US3, US4, US10, US10B, US26, US26D, US28, US32D
