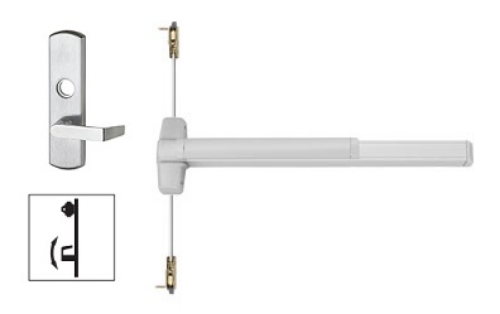

Von Duprin 9847L / 9947L Concealed Vertical Rod Device - Lever with Escutcheon

Product Details

Von Duprin 9847L 3 Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 80" to 100" Door Height, Classroom Function, Lever with Escutcheon, Field Reversible**

9847/9947 concealed vertical rod device for use on single or doublemetal doors, UL listed for Panic Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

Device Handing:Non-Handed.

Device Lengths: - 3' (914mm): 2'4' to 3' (711mm to 914 mm) Door Size. - 4' (1219mm): 2'10" to 4' (864 mm to 1219 mm) Door Size.

Door Height: Vertical Rods: Round 2-piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).

Dogging Feature:Hex key dogging standard.

Latch Bolt:Deadlocking Top & Bottom Bolt, 5/8" (16mm) throw.

Strike:Top - 338 Unfinished, Bottom 385A - Unfinished.

Fasteners:Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors. Optional 425 SNB available.

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only.

Dimensions:

Device lengths: - 3' 2'4' to 3' (711mm to 914 mm) Door Size. - 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-5/8" (1006 mm).

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection: - Pushbar Neutral 3-13/16" (97 mm). - Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model:Von Duprin 9847, 9947L, 9847L06, 9947L-60, 9847/9947, US3, US4, US10, US10B, US26, US26D, US28, US32D

Von Duprin 9847L / 9947L Concealed Vertical Rod Device - Lever with Escutcheon

SKU: 98/9947L

In Stock

Model *

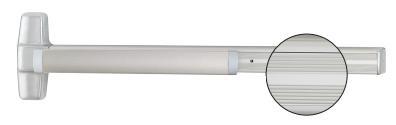

9947 Series - Grooved mechanism case
9947 Series - Grooved mechanism case

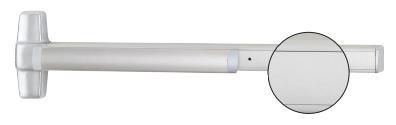

9847 Series - Smooth mechanism case
9847 Series - Smooth mechanism case

Lever Style *

Size *

Finish *

Anodized, Aluminum - US28 (628)
Anodized, Aluminum - US28 (628)
Chromium, Dull - US26D (626) [+$115.50]
Chromium, Dull - US26D (626) [+$115.50]
Duranodic Dark Bronze - 313 (710) [+$82.50]
Duranodic Dark Bronze - 313 (710) [+$82.50]
Bronze, Dull - US10 (612) [+$192.72]
Bronze, Dull - US10 (612) [+$192.72]
Satin Stainless Steel - US32D (630) For 98 only [+$149.16]
Satin Stainless Steel - US32D (630) For 98 only [+$149.16]
Brass, Dull - US4 (606) [+$189.42]
Brass, Dull - US4 (606) [+$189.42]
Chromium, Polished - US26 (625) [+$397.32]
Chromium, Polished - US26 (625) [+$397.32]
Brass, Polished - US3 (605) [+$333.30]
Brass, Polished - US3 (605) [+$333.30]
Satin Nickel - US15 (619) For 98 only [+$397.32]
Satin Nickel - US15 (619) For 98 only [+$397.32]
Black - 315 (711) [+$654.06]
Black - 315 (711) [+$654.06]

Dogging *

Electrical Options *

Rod *

$2,443.32

$3,702.00

You saved $1,258.68

About this item

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Von Duprin 9847L 3 Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 80" to 100" Door Height, Classroom Function, Lever with Escutcheon, Field Reversible**

9847/9947 concealed vertical rod device for use on single or doublemetal doors, UL listed for Panic Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

Device Handing:Non-Handed.

Device Lengths: - 3' (914mm): 2'4' to 3' (711mm to 914 mm) Door Size. - 4' (1219mm): 2'10" to 4' (864 mm to 1219 mm) Door Size.

Door Height: Vertical Rods: Round 2-piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4"(2533mm). Bottom rod adjustable 35-5/8" (905 mm) to 49-5/8" (1260 mm). Extension rod kits available for doors over 8'4" (2533mm).

Dogging Feature:Hex key dogging standard.

Latch Bolt:Deadlocking Top & Bottom Bolt, 5/8" (16mm) throw.

Strike:Top - 338 Unfinished, Bottom 385A - Unfinished.

Fasteners:Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors. Optional 425 SNB available.

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only.

Dimensions:

Device lengths: - 3' 2'4' to 3' (711mm to 914 mm) Door Size. - 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-5/8" (1006 mm).

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection: - Pushbar Neutral 3-13/16" (97 mm). - Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model:Von Duprin 9847, 9947L, 9847L06, 9947L-60, 9847/9947, US3, US4, US10, US10B, US26, US26D, US28, US32D

9847L-
Von Duprin 9847L / 9947L Concealed Vertical Rod Device - Lever with Escutcheon

Product code: 98/9947L

In Stock

$3,702.00

$2,443.32

9847L-
Von Duprin 9847L / 9947L Concealed Vertical Rod Device - Lever with Escutcheon

Product code: 98/9947L

In Stock

$3,702.00

$2,443.32
