Von Duprin 9847TP-BE / 9947TP-BE Concealed Vertical Rod Panic Exit Device, Rigid Lever, with Thumbpiece 990 Trim
Product Details

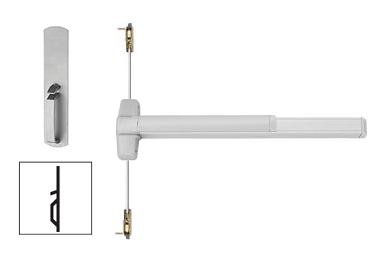

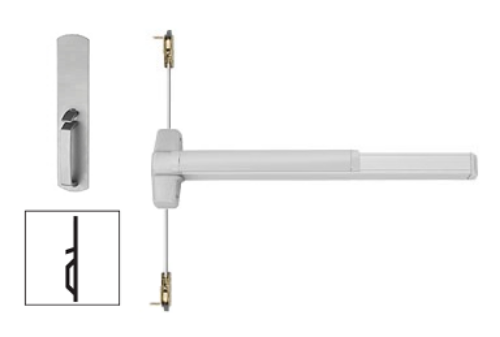

Von Duprin 9847TP-BE / 9947TP-BE Concealed*Vertical Rod Panic Exit Device, Rigid Lever, With Thumbpiece 990 trim - Blank Escutcheon*
Devices are ANSI A156.3 2001 Grade 1.

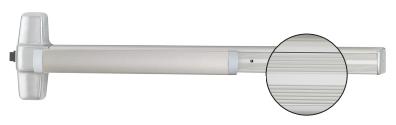

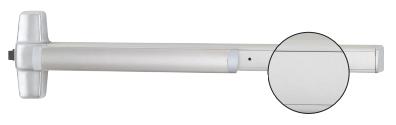

The 98 device has a smooth mechanism case and the 99 device has a grooved case.
TPBE - Thumbpiece:
- Blank escutcheon always operable.
Covers stock hollow metal doors with 86 or 161 cutouts on single doors.
Dogging Feature:Hex key dogging standard.
Latch Bolt:3/4" (19mm) throw latch bolt.
Strike:Device is furnished with standard 299 strike in dull black finish.
Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available.
Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only.
Dimensions
Device lengths:
3' 2'4' to 3' (711mm to 914 mm) Door Size.
4' 2'10" to 4' (864 mm to 1219 mm) Door Size.
Device Centerline from Finished Floor:
39-13/16" (1011 mm).
39-11/16" (1008 mm) with Mullion.
Center Case Dimensions:
8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).
Projection:
Pushbar Neutral 3-13/16" (97 mm).
Pushbar Depressed 3-1/16" (78 mm).
All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.
Model: Von Duprin , 9847TP, 9947TP26D, 9947TP, 98/9947TP, US3, US4, US10, US10B, US26, US26D, US28, US32D
