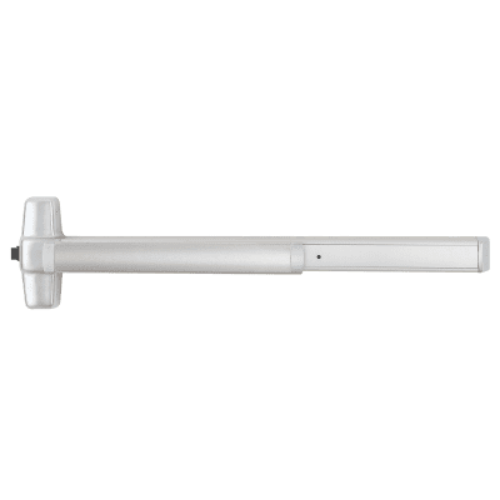

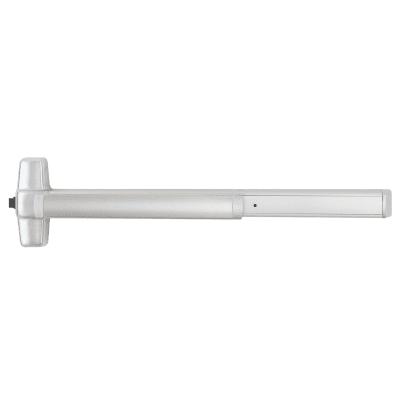

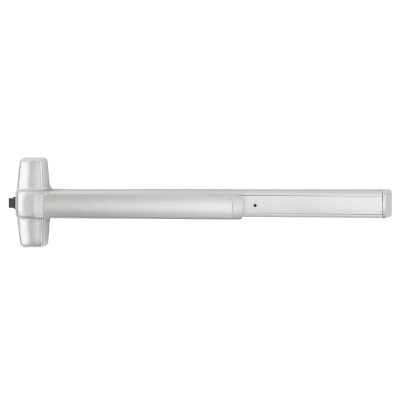

Von Duprin 98EO / 99EO Rim Panic Exit Device

Von Duprin 98EO/99EO Series Touch Bar Exit Device - Exit Only

The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others, Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs.

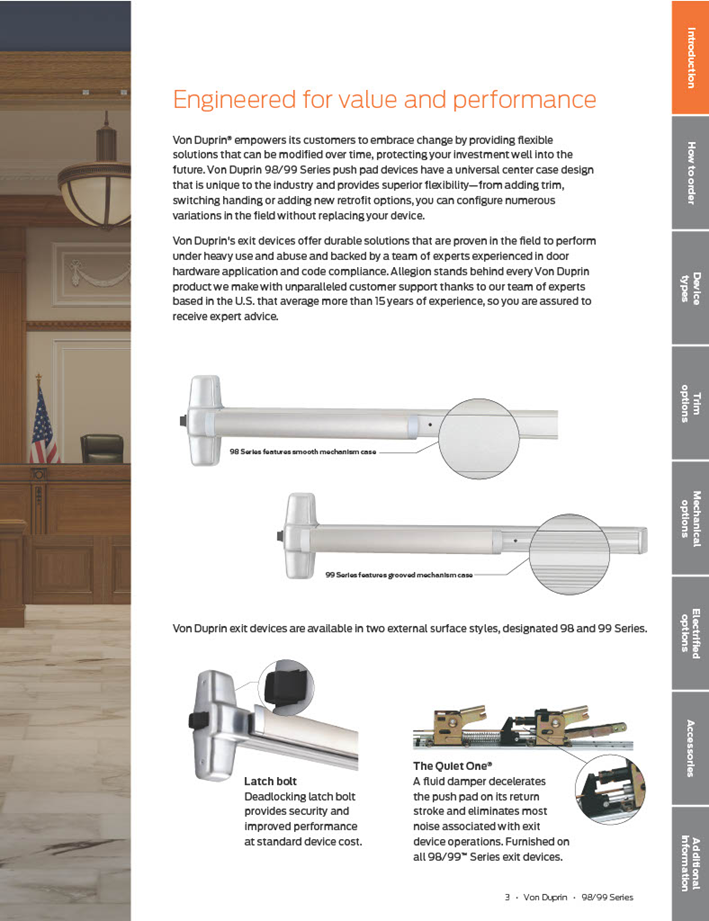

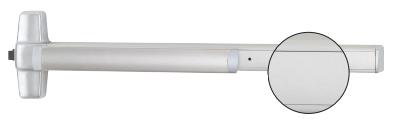

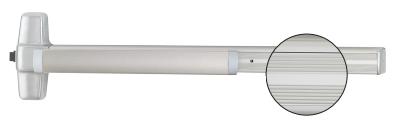

The 98 device has a smooth mechanism case and the 99 device has a grooved case.

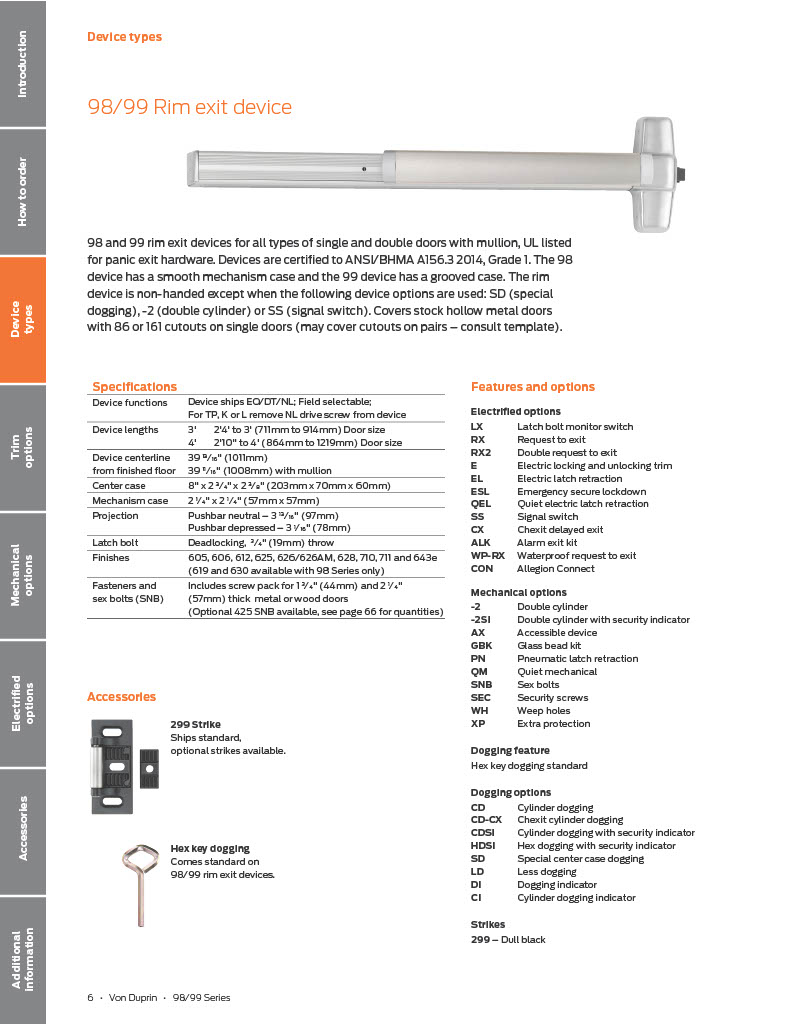

Specifications:

Device lengths:** - 3' Device, 2'4' to 3' (711mm to 914mm) Door size - 4' Device, 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor: - 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion Center case: - 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm)

Mechanism case: - 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Latch Bolt: 3/4" (19mm) throw latch bolt

Strike: - Device is furnished with standard 299 strike in dull black finish

Dogging: - Hex key dogging Comes standard on 98/99 exit devices

Projection: - Pushbar neutral  - 3 13/16" (97mm) - Pushbar depressed - 3 1/16" (78mm)

Latch bolt Deadlocking: - 3⁄4" (19mm) throw

Handing: - Non handed

Finishes: - 605, 606, 612, 625, 626/626AM, 628, 710, 711 & 643e (619 and 630 available with 98 Series only)

Fasteners and sex bolts (SNB): - Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)

Model: Von Duprin 98EO, US3, US4, US10, US10B, US26, US26D, US28, US32D, 99EO26D, 99EO3, 99EO, RX99EO, ALK98EO
