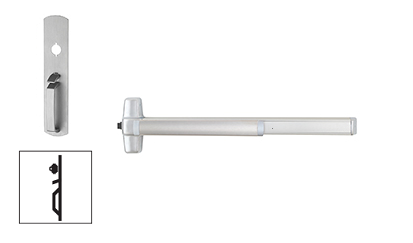

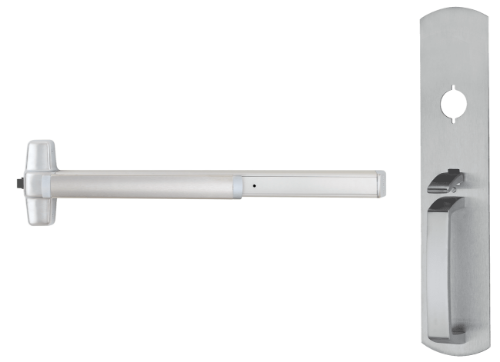

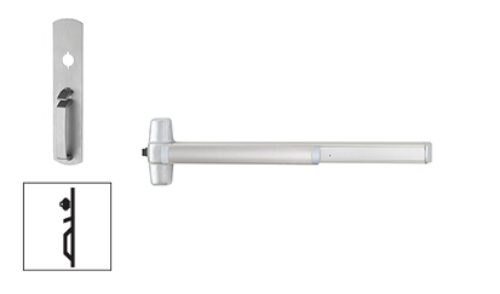

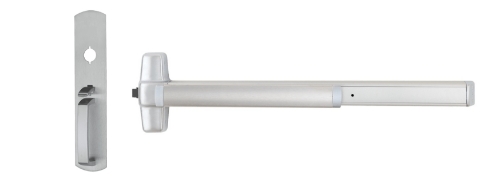

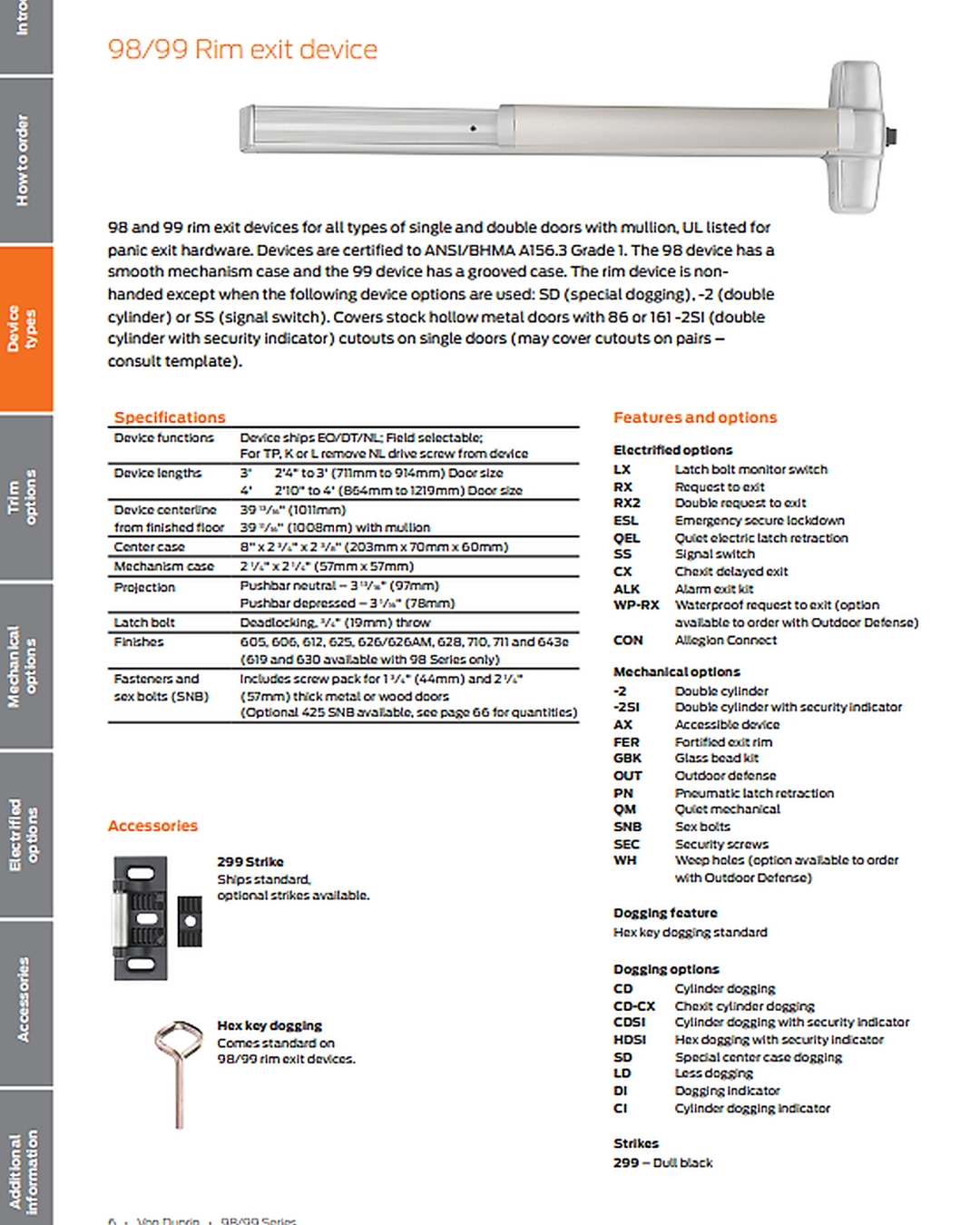

Von Duprin 98TP / 99TP Rim Panic Exit Device, Rigid Lever, with Thumbpiece 990 Trim

Product Details

Von Duprin 98TP / 99TP Rim Panic Exit Device, Rigid Lever, With Thumbpiece*990 trim*

Devices are ANSI A156.3 2001 Grade 1.

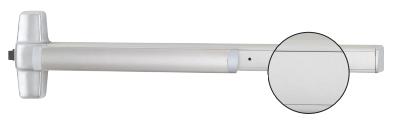

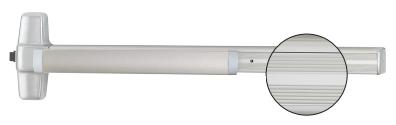

The 98 device has a smooth mechanism case and the 99 device has a grooved case.

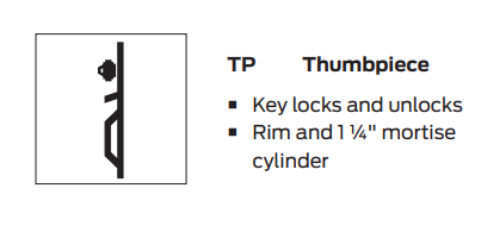

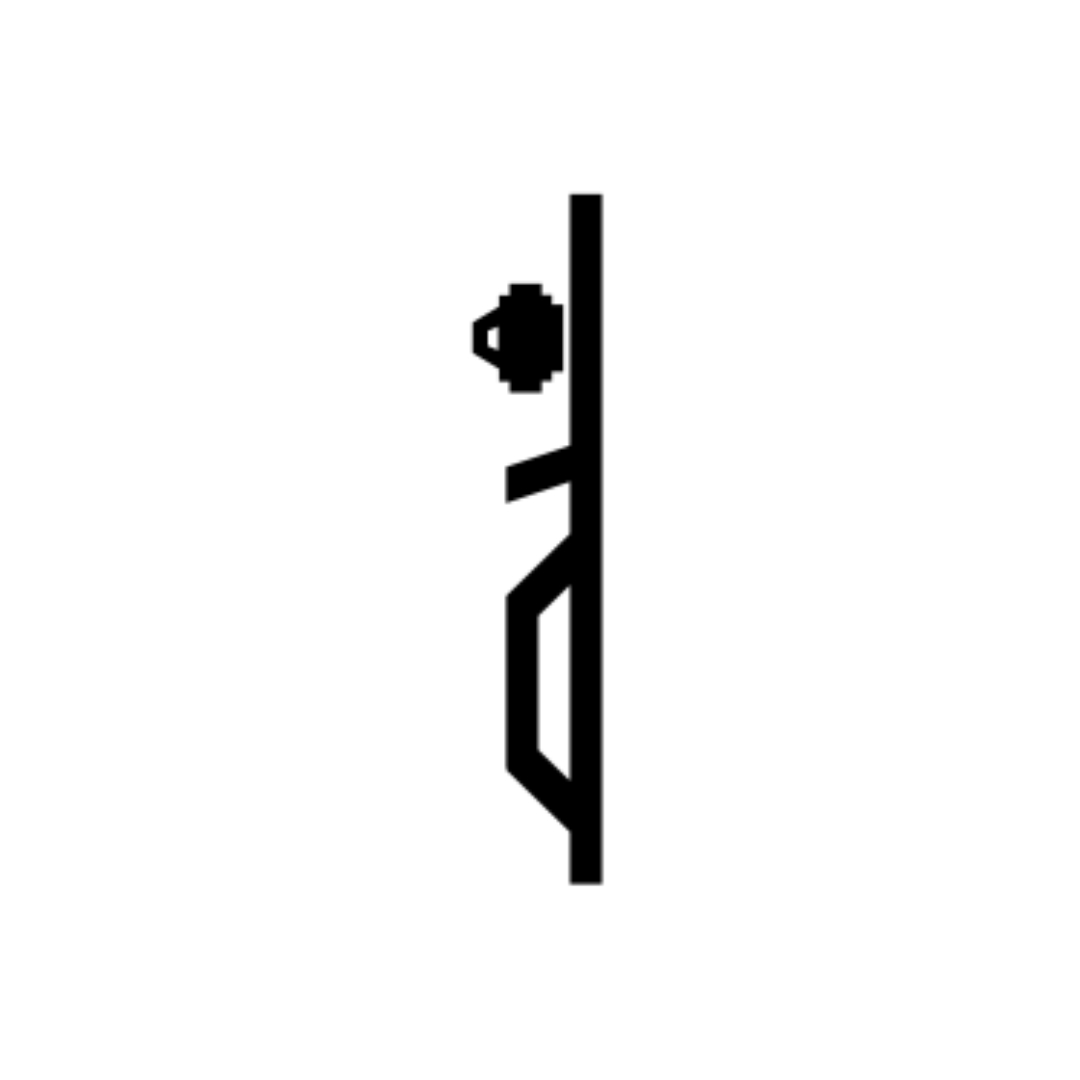

TP - Thumbpiece  Key locks and unlocks. Rim and 1 " mortise cylinder.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging Feature:Hex key dogging standard.

Latch Bolt:3/4" (19mm) throw latch bolt.

Strike:Device is furnished with standard 299 strike in dull black finish.

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available.

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size. 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor: 39-13/16" (1011 mm). 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 98, 99, 98L, 99L26D, 99L3, 99L, 98/99, 98/99L, RX98, RX99, RX98L, RX99L, US3, US4, US10, US10B, US26, US26D, US28, US32D

Von Duprin 98TP / 99TP Rim Panic Exit Device, Rigid Lever, with Thumbpiece 990 Trim

SKU: 98/99TP

In Stock

Model *

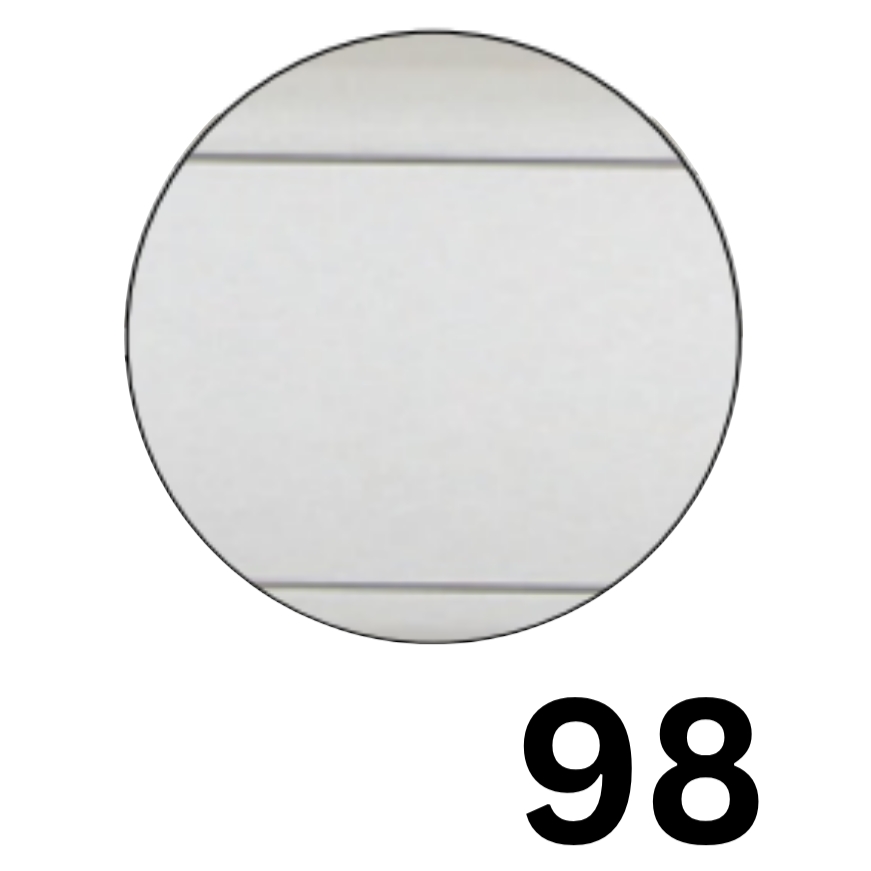

98 Series - Smooth mechanism case
98 Series - Smooth mechanism case

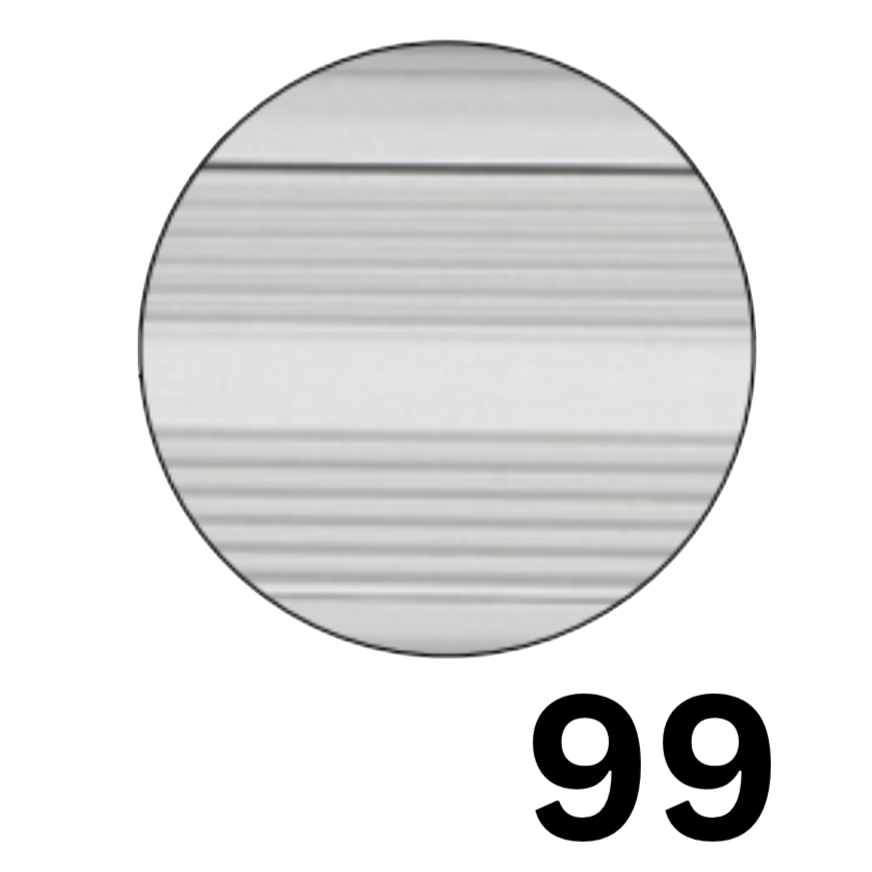

99 Series - Grooved mechanism case
99 Series - Grooved mechanism case

Size *

Finish *

Anodized, Aluminum - US28 (628)
Anodized, Aluminum - US28 (628)
Chromium, Dull - US26D (626) [+$130.02]
Chromium, Dull - US26D (626) [+$130.02]
Satin Stainless Steel - US32D (630) For 98 only [+$167.64]
Satin Stainless Steel - US32D (630) For 98 only [+$167.64]
Brass, Dull - US4 (606) [+$155.10]
Brass, Dull - US4 (606) [+$155.10]
Duranodic Dark Bronze - 313 (710) [+$81.84]
Duranodic Dark Bronze - 313 (710) [+$81.84]
Chromium, Polished - US26 (625) [+$399.96]
Chromium, Polished - US26 (625) [+$399.96]
Brass, Polished - US3 (605) [+$399.96]
Brass, Polished - US3 (605) [+$399.96]
Satin Nickel - US15 (619) For 98 only [+$399.96]
Satin Nickel - US15 (619) For 98 only [+$399.96]
Black - 315 (711) [+$743.82]
Black - 315 (711) [+$743.82]
Bronze, Dull - US10 (612) [+$167.64]
Bronze, Dull - US10 (612) [+$167.64]

Electrical Options *

Dogging *

Fire Rated Option *

$1,598.52

$2,422.00

You saved $823.48

About this item

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Von Duprin 98TP / 99TP Rim Panic Exit Device, Rigid Lever, With Thumbpiece*990 trim*

Devices are ANSI A156.3 2001 Grade 1.

The 98 device has a smooth mechanism case and the 99 device has a grooved case.

TP - Thumbpiece  Key locks and unlocks. Rim and 1 " mortise cylinder.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging Feature:Hex key dogging standard.

Latch Bolt:3/4" (19mm) throw latch bolt.

Strike:Device is furnished with standard 299 strike in dull black finish.

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available.

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black, US32D - Satin Stainless Steel available with 98 Series only.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size. 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor: 39-13/16" (1011 mm). 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions: 8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 98, 99, 98L, 99L26D, 99L3, 99L, 98/99, 98/99L, RX98, RX99, RX98L, RX99L, US3, US4, US10, US10B, US26, US26D, US28, US32D
