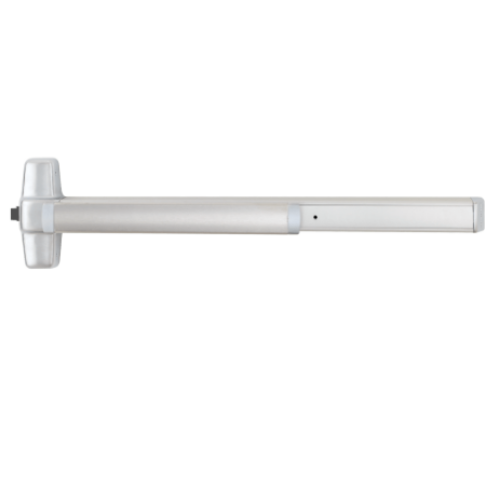

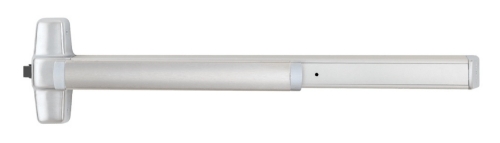

**Von Duprin AX98EO / AX99EO Rim Panic Exit Device - Accessible device

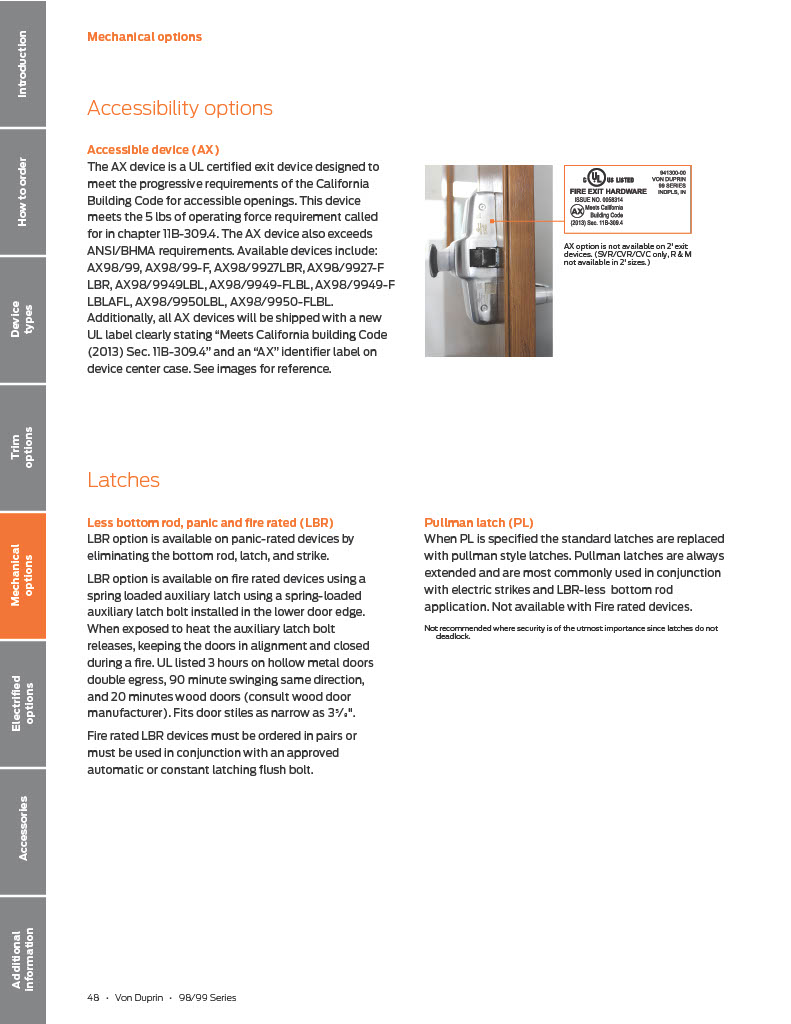

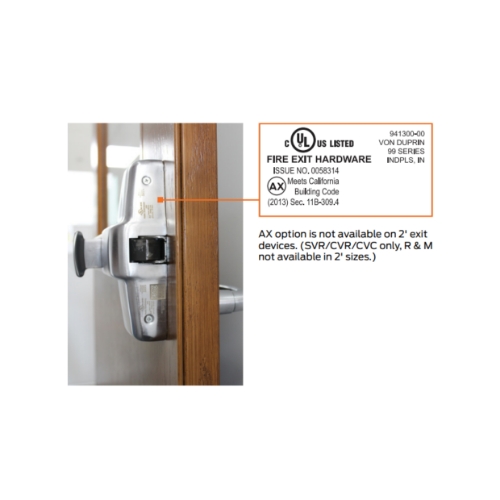

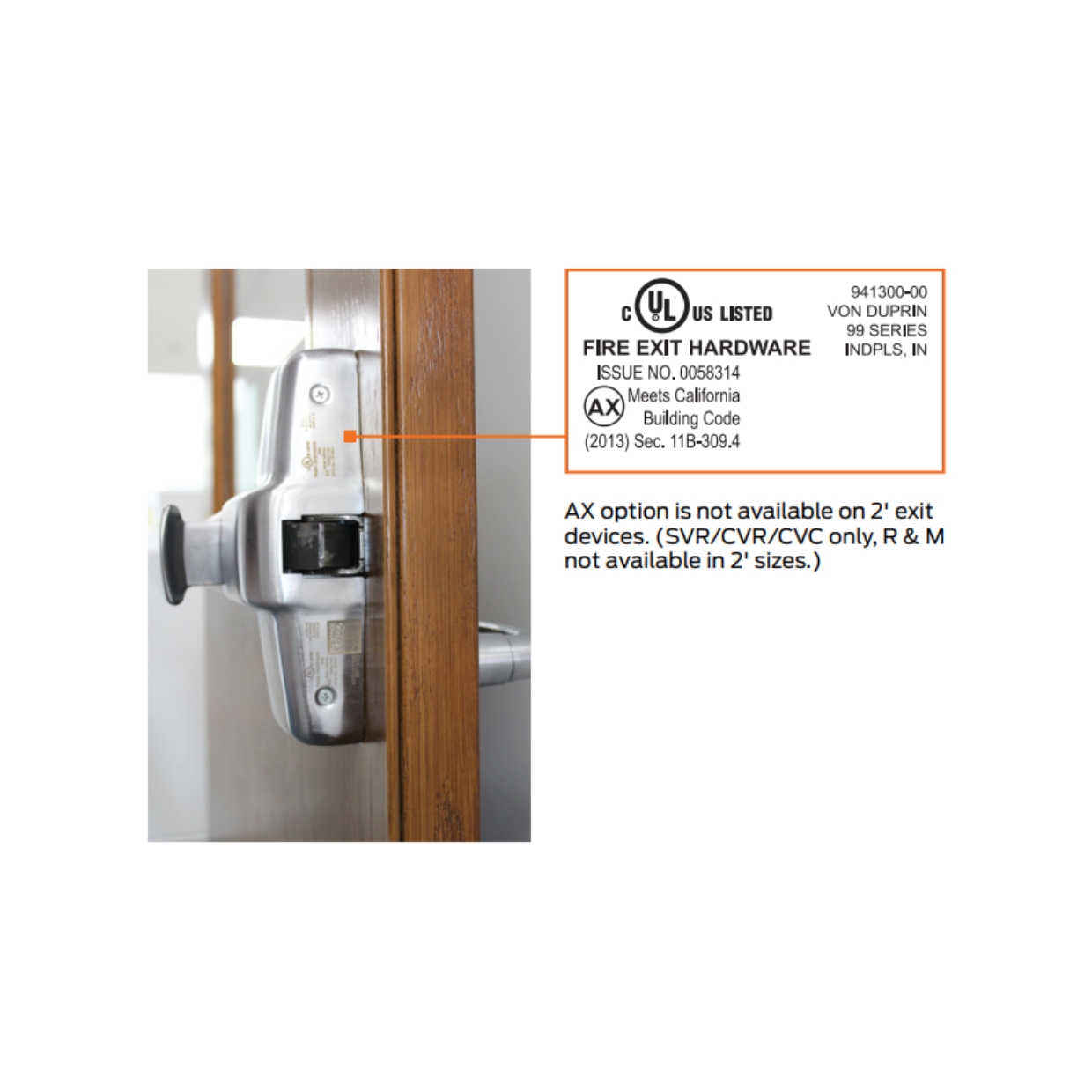

Accessible device (AX) The AX device is a UL certified exit device designed to meet the progressive requirements of the California Building Code for accessible openings. This device meets the 5 lbs of operating force requirement called for in chapter 11B-309.4. The AX device also exceeds ANSI/BHMA requirements. Additionally, all AX devices will be shipped with a new UL label clearly stating "Meets California building Code (2013) Sec. 11B-309.4" and an "AX" identifier label on device center case. See images below for reference.

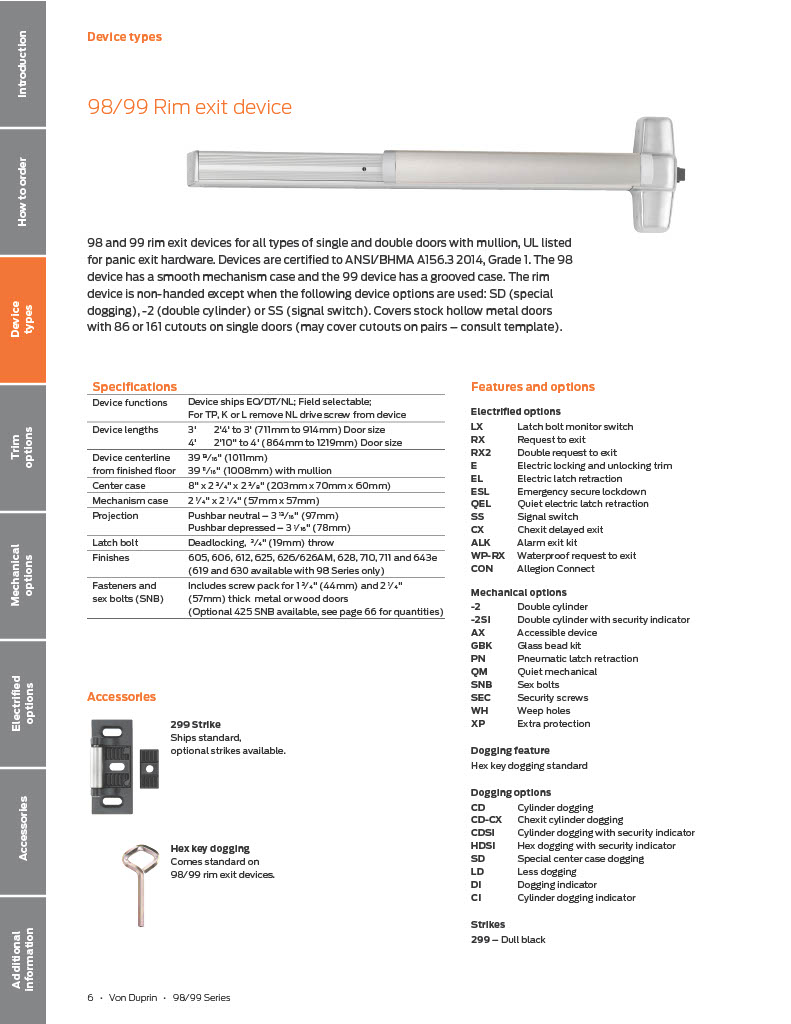

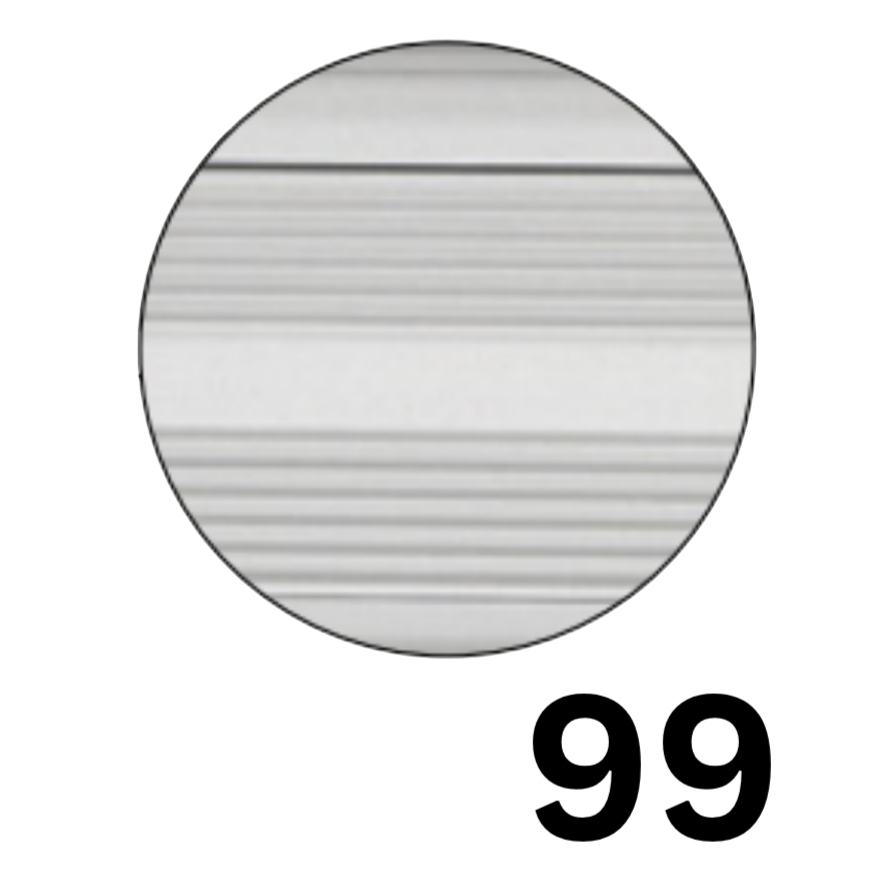

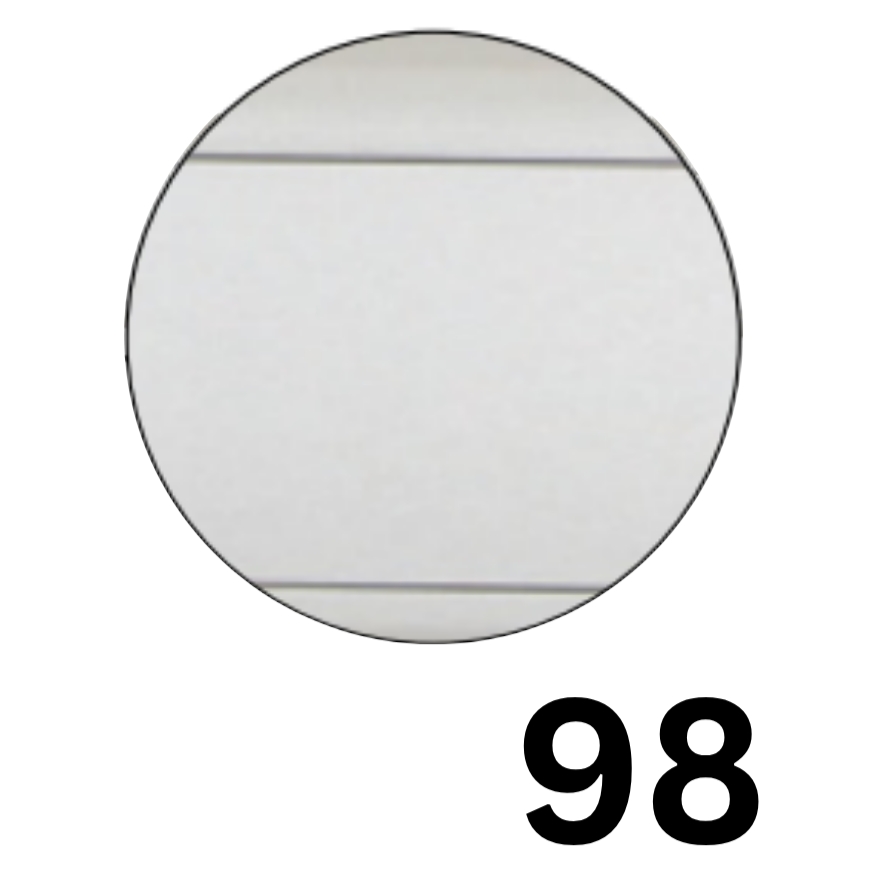

Specifications: *Device lengths:* - 3' Device, 2'4' to 3' (711mm to 914mm) Door size - 4' Device, 2'10" to 4' (864mm to 1219mm) Door size Device centerline from finished floor: - 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion Center case: - 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) Mechanism case: - 2 1⁄4" x 2 1⁄4" (57mm x 57mm) Latch Bolt: 3/4" (19mm) throw latch bolt. Strike: - Device is furnished with standard 299 strike in dull black finish Dogging: - Hex key dogging Comes standard on 98/99 exit devices Projection: - Pushbar neutral - 3 13/16" (97mm) - Pushbar depressed - 3 1/16" (78mm) Latch bolt Deadlocking: - 3⁄4" (19mm) throw Handing: - Non handed Finishes: - 605, 606, 612, 625, 626/626AM, 628, 710, 711 & 643e (619 and 630 available with 98 Series only). Fasteners and sex bolts (SNB): - Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)
