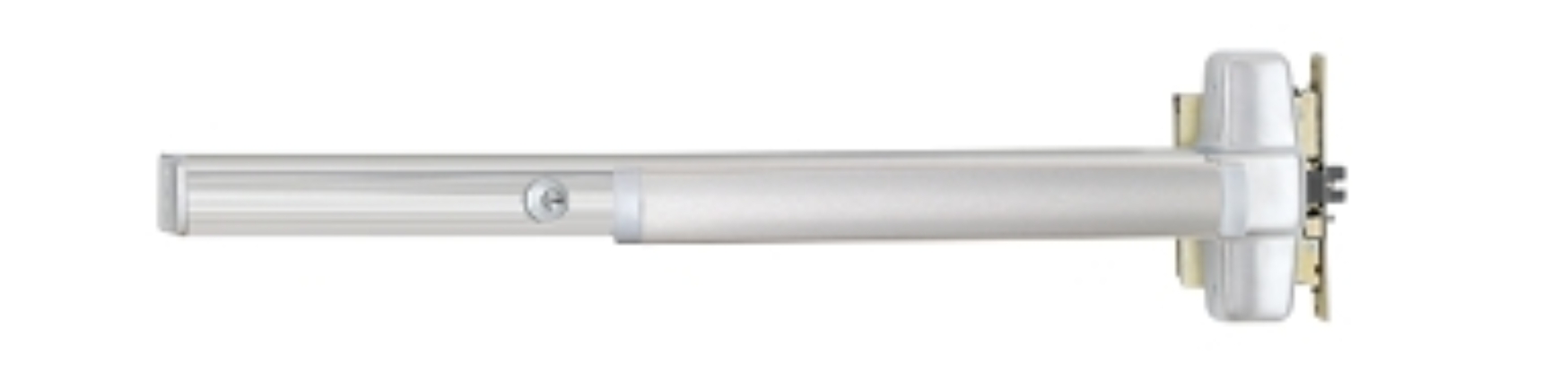

Von Duprin CD9875EO / CD9975EO Mortise Lock Panic Exit Device - Cylinder Dogging

Von Duprin CD9875EO / CD9975EO Mortise Lock Panic Exit Device*- Exit Only - Cylinder Dogging*

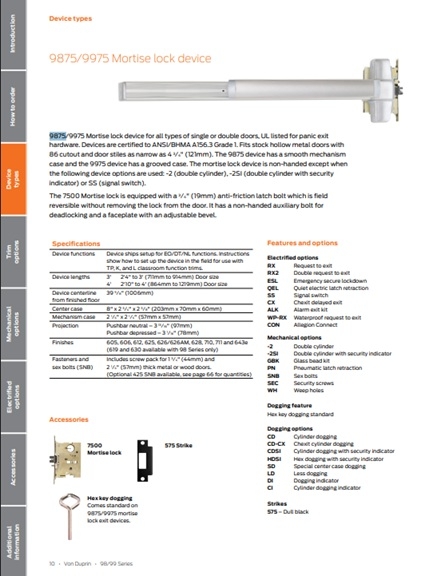

9875/9975 mortise lock device for all types ofsingle or double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 2001 Grade 1.

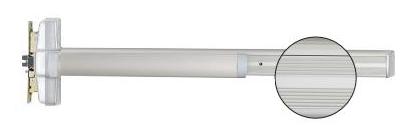

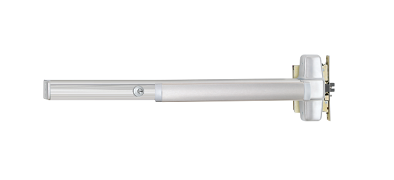

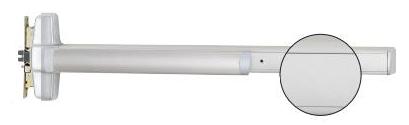

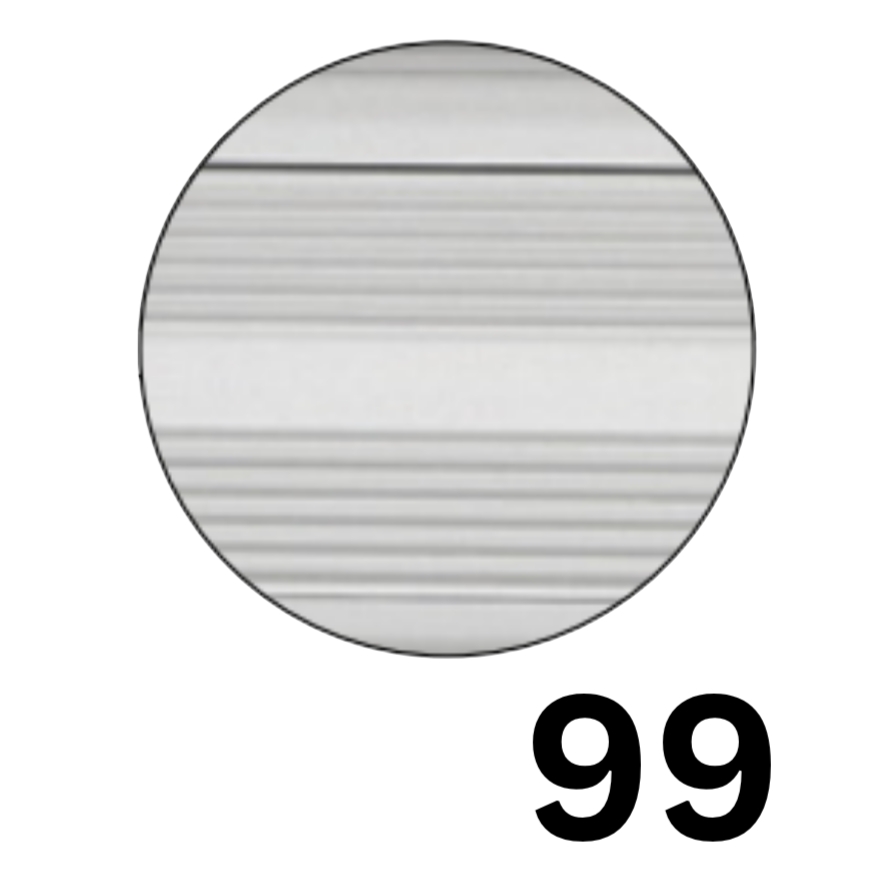

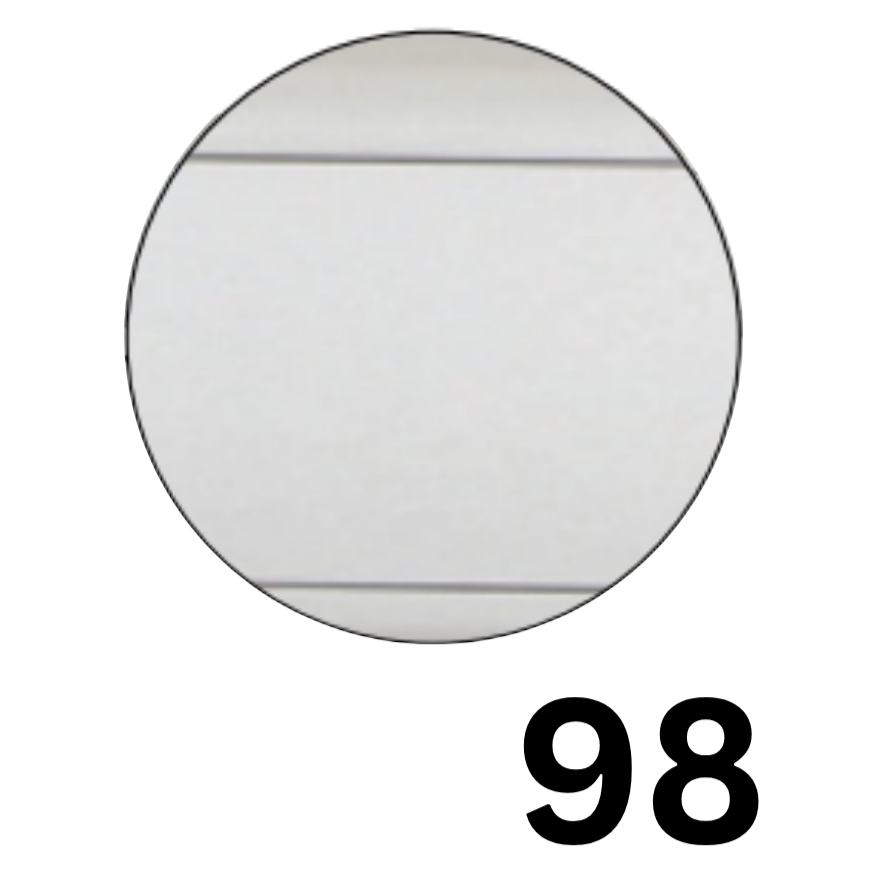

The 9875 device has a smooth mechanism case and the 9975 device has a grooved case.

Fits stock hollow metal doors with 86 cutout and door stiles as narrow as 4-3/4" (121mm).

The 7500 Mortise lock is equipped with a 3/4" (19mm)anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.

Strike:575 Dull Black

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel-available with 98 Series only

Dimensions:

Device lengths: - 3' 2'4' to 3' (711mm to 914 mm) Door Size - 4' 2'10" to 4' (864 mm to 1219 mm) Door Size

Device Centerline from Finished Floor: - 39-13/16" (1011 mm). - 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)

Projection: - Pushbar Neutral 3-13/16" (97 mm) - Pushbar Depressed 3-1/16" (78 mm)

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin CD9875, CD9975, CD9875EO, CD9975EO, US3, US4, US10, US10B, US26, US26D, US28, US32D
