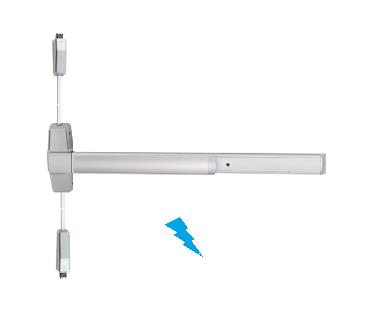

Von Duprin EL9827EO / EL9927EO Surface Vertical Rod - Electric Latch

Product Details

Von Duprin EL9827EO / EL9927EO Surface Mounted Vertical Rod Device with Electric Latch Retraction*- Exit Only*

The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. A powerful, continuous duty solenoid retracts the latch bolt, either for momentary unlatching, or for extended periods of time. The EL feature is an alternative to manual dogging.

EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system. UL approved for Class II circuit applications.

The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914 power supply.

EL9827 / EL9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware.""

Devices are ANSI A156.3 2001 Grade 1.

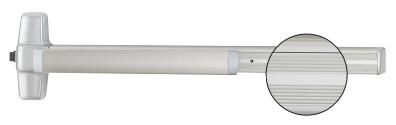

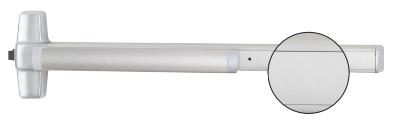

The EL9827 device has a smooth mechanism case and the EL9927 device has a grooved case.

Device Handing:Non-Handed.

Device Lengths:3' (914mm), 4' (1219mm).

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw.

Strike:Top - 299 Dull Black, Bottom 248L4 & 304L - Unfinished.

Fasteners:Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Finishes:US3 - Polished Brass ,US26 - Polished Chromium, US26D - Dull Chromium,US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze,US32D - Satin Stainless Steelavailable with 98 Series only.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size. 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-5/8" (1006 mm).

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin EL9827, EL9927, EL9827EO, EL9927EO, EL9827/EL9927, EL9827/EL9927EO, RXEL9827, RXEL9927, RXEL9827EO, RXEL9927EO, US3,313, US26, US26D, US28, US32D

Von Duprin EL9827EO / EL9927EO Surface Vertical Rod - Electric Latch

SKU: EL98/99EO27

In Stock

Model *

9827 Series - Smooth mechanism case
9827 Series - Smooth mechanism case
9927 Series - Grooved mechanism case
9927 Series - Grooved mechanism case

Rod *

Size *

Finish *

Anodized, Aluminum - US28 (628)
Anodized, Aluminum - US28 (628)
Chromium, Dull - US26D (626) [+$185.46]
Chromium, Dull - US26D (626) [+$185.46]
Duranodic Dark Bronze - 313 (710) [+$446.16]
Duranodic Dark Bronze - 313 (710) [+$446.16]
Satin Stainless Steel - US32D (630) For 98 only [+$300.96]
Satin Stainless Steel - US32D (630) For 98 only [+$300.96]
Chromium, Polished - US26 (625) [+$446.16]
Chromium, Polished - US26 (625) [+$446.16]
Brass, Polished - US3 (605) [+$446.16]
Brass, Polished - US3 (605) [+$446.16]

Option *

$2,692.14

$4,079.00

You saved $1,386.86

About this item

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1, Clickherefor the 88/99 Series Trims section.

Von Duprin EL9827EO / EL9927EO Surface Mounted Vertical Rod Device with Electric Latch Retraction*- Exit Only*

The EL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. A powerful, continuous duty solenoid retracts the latch bolt, either for momentary unlatching, or for extended periods of time. The EL feature is an alternative to manual dogging.

EL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system. UL approved for Class II circuit applications.

The EL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS914 power supply.

EL9827 / EL9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware.""

Devices are ANSI A156.3 2001 Grade 1.

The EL9827 device has a smooth mechanism case and the EL9927 device has a grooved case.

Device Handing:Non-Handed.

Device Lengths:3' (914mm), 4' (1219mm).

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw.

Strike:Top - 299 Dull Black, Bottom 248L4 & 304L - Unfinished.

Fasteners:Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Finishes:US3 - Polished Brass ,US26 - Polished Chromium, US26D - Dull Chromium,US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze,US32D - Satin Stainless Steelavailable with 98 Series only.

Dimensions

Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door Size. 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-5/8" (1006 mm).

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin EL9827, EL9927, EL9827EO, EL9927EO, EL9827/EL9927, EL9827/EL9927EO, RXEL9827, RXEL9927, RXEL9827EO, RXEL9927EO, US3,313, US26, US26D, US28, US32D

EL9827-
Von Duprin EL9827EO / EL9927EO Surface Vertical Rod - Electric Latch

Product code: EL98/99EO27

In Stock

$4,079.00

$2,692.14

Solenoid Specifications: Continuous Duty - 24 VDC. Current Inrush - 16 Amps. Current Holding - 0.3 Amps.

Solenoid Resistance: grn-yel 1.2 - 2.2 OHMS. grn-org 100 - 150 OHMS.

EL9827-
Von Duprin EL9827EO / EL9927EO Surface Vertical Rod - Electric Latch

Product code: EL98/99EO27

In Stock

$4,079.00

$2,692.14
