Von Duprin EPT-10 Electrical Power Transfer

About this item

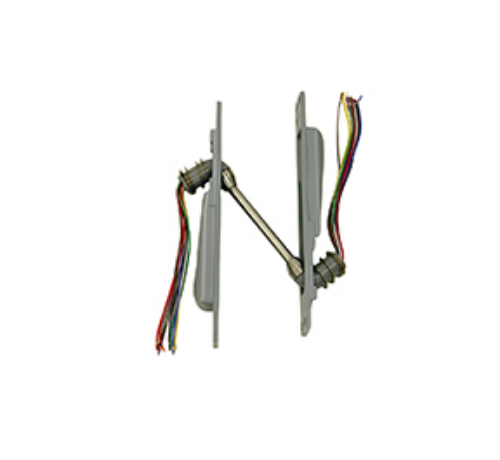

Von Duprin EPT 10 Electrical Power Transfer

Ten 24 gauge wires, Up to 1 AMPS @ 24VDC, with a 16 AMPS Maximum Surge

Electric Power Transfer provides a means of transferring electrical power from a
door frame to the edge of a swinging door. The units are completely concealed
when the door is in the closed position, and are ideal for installations involving
abuse or heavy traffic.

Two models are available; EPT-2, two 18 gauge wires and EPT-10, ten 24 gauge wires.

The EPT-2 and EPT-10 are U/L listed asmiscellaneous door accessory. UL Listed for use on firedoors

CON Connector option is a cross category solution using common interconnect components for electrified options. Available for EPT10.

Door applications
up to 5" butt hinges 180˚ swing,
5-1/2" butt hinges 130˚ swing,
6" butt hinges 110˚ swing,
3/4" butt offset pivots 180˚ swing.
Not for use with swing clear hinges or center-hung pivots."

Finishes
SP28 (sprayed aluminum)
SP313 (sprayed duranodic)

Dimensions
Housing 9" x 1-1/4" x 1-5/8" (229mm x 32mm x 38mm)

Model: Von Duprin EPT10, SP28, SP313
