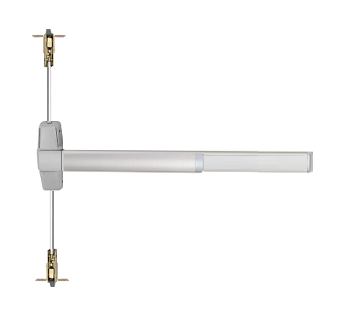

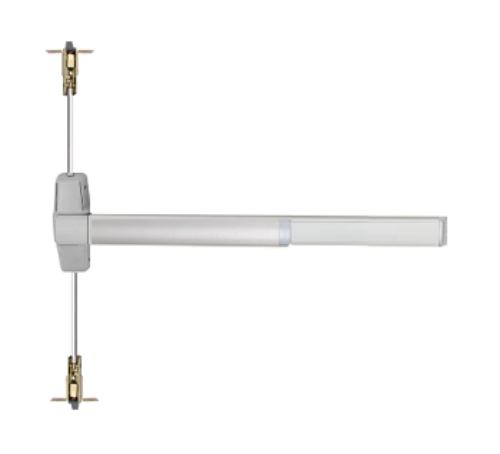

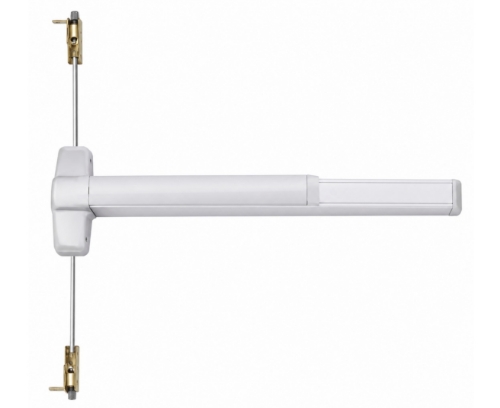

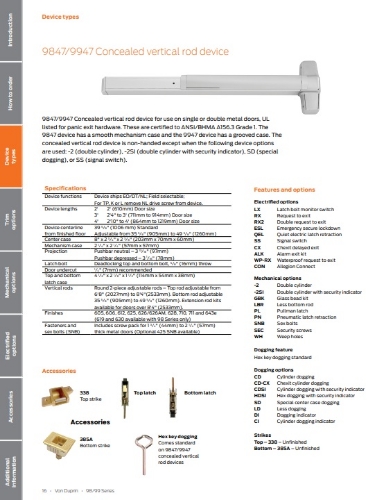

Von Duprin LD9847EO / LD9947EO Concealed Mounted Vertical Rod Device, Less Dogging

Von Duprin LD9847EO / LD9947EO Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 84" Door Height, Exit Only, Less trim, Less Dogging, Field Reversible**

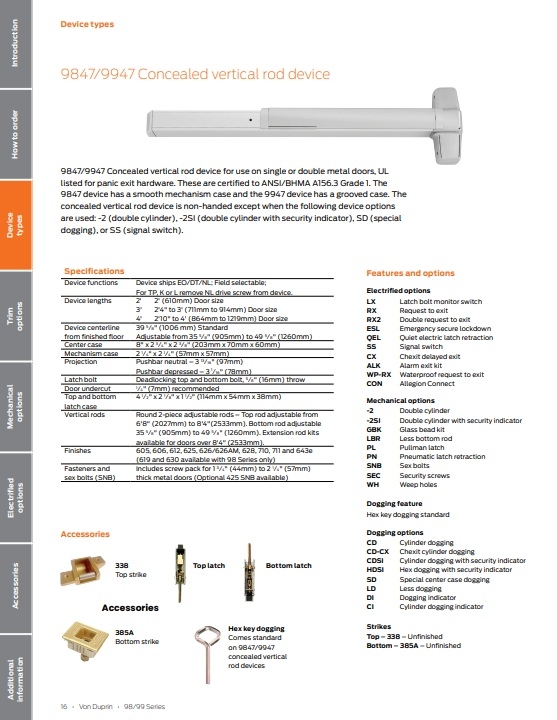

9827/9927 surface mounted vertical rod device for all types of single or double doors, UL listed for Panic Exit Hardware.

Devices are ANSI A156.3 2001 Grade 1.

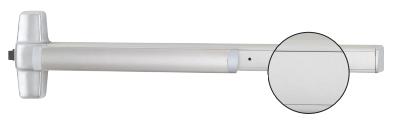

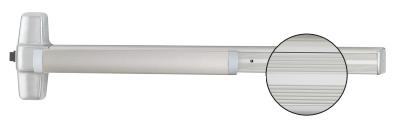

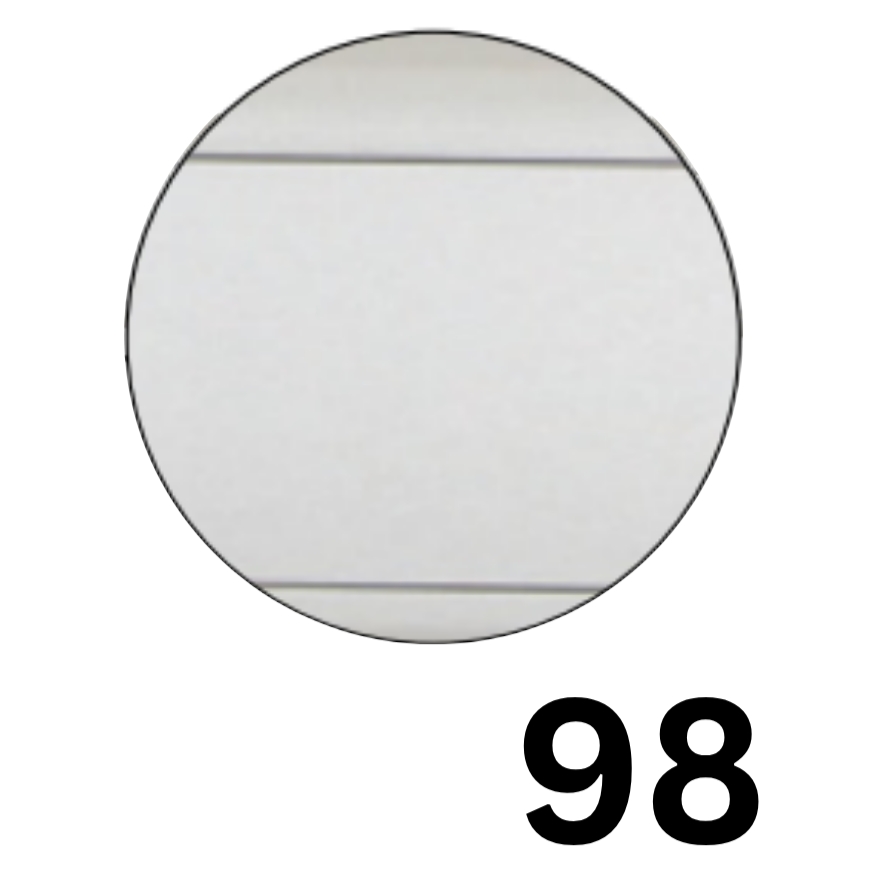

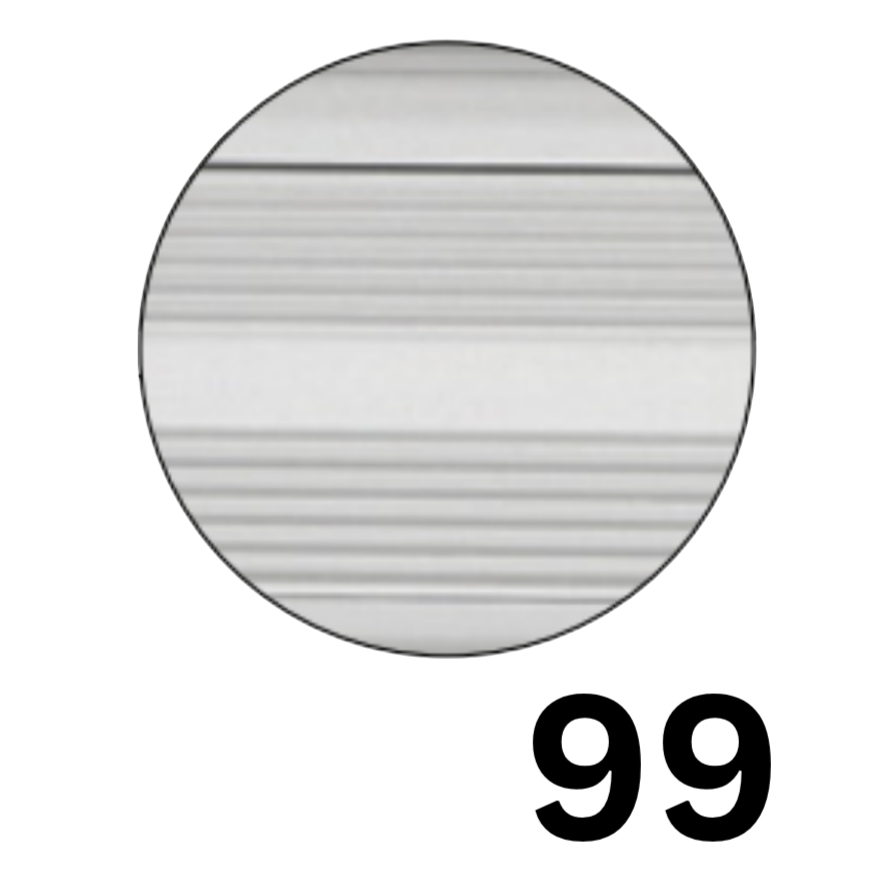

The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

Device Handing:Non-Handed.

Device Lengths: 3' (914mm), 4' (1219mm).

Door Height:7' (2134mm) standard door height. Extension rods available for door heights up to 10'.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors.

Dogging Feature:Cylinder Dooging.

Latch Bolt:Deadlocking Anti-friction Top & Bottom Bolt, 5/8" (16mm) throw.

Strike:Top - 299 Dull Black, Bottom 248L4 & 304L - Unfinished.

Fasteners:Includes screw pack for 1-3/4" (44mm) to 2-1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel available with 98 Series only

Dimensions:

Device lengths: 3' 2'4" to 3' (711mm to 914 mm) Door Size. 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-5/8" (1006 mm).

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Mechanism Case Dimensions:2-1/4" x 2-1/4" (57mm x 57mm).

Top & Bottom Latch Case:4-1/2" x 2-1/2" x 1-1/2" (114mm x 54mm x 38mm).

Projection: Pushbar Neutral 3-13/16" (97 mm). Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin 9847, LD9947, 9827, LD9947EO, LDRX9847EO, ALK9847, US3, US4, US10, US10B, US26, US26D, US28, US32D
