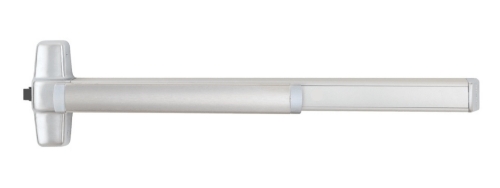

Von Duprin LD98EO / LD99EO Rim Panic Exit Device - Less Dogging

Product Details

Von Duprin LD98EO/LD99EO Series Touch Bar Exit Device, Less Dogging  - Exit Only

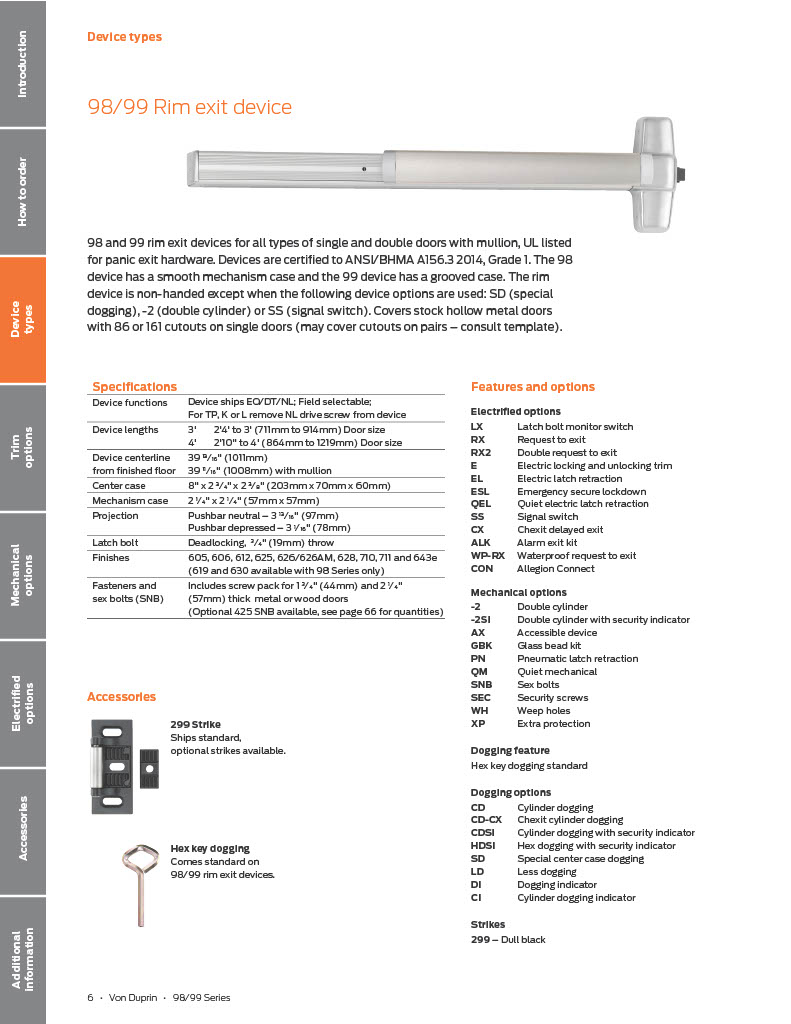

The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others, Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs. The 98 device has a smooth mechanism case and the 99 device has a grooved case.

Specifications: Device lengths:** - 3' Device, 2'4' to 3' (711mm to 914mm) Door size - 4' Device, 2'10" to 4' (864mm to 1219mm) Door size Device centerline from finished floor: - 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion Center case: - 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) Mechanism case: - 2 1⁄4" x 2 1⁄4" (57mm x 57mm) Latch Bolt: 3/4" (19mm) throw latch bolt. Strike: - Device is furnished with standard 299 strike in dull black finish Dogging: - Less dogging Projection: - Pushbar neutral  - 3 13/16" (97mm) - Pushbar depressed - 3 1/16" (78mm) Latch bolt Deadlocking: - 3⁄4" (19mm) throw Handing: - Non handed Finishes: - 605, 606, 612, 625, 626/626AM, 628, 710, 711 & 643e (619 and 630 available with 98 Series only). Fasteners and sex bolts (SNB): - Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)

Von Duprin LD98EO / LD99EO Rim Panic Exit Device - Less Dogging

SKU: LD98/99EO

In Stock

Model *

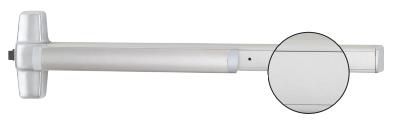

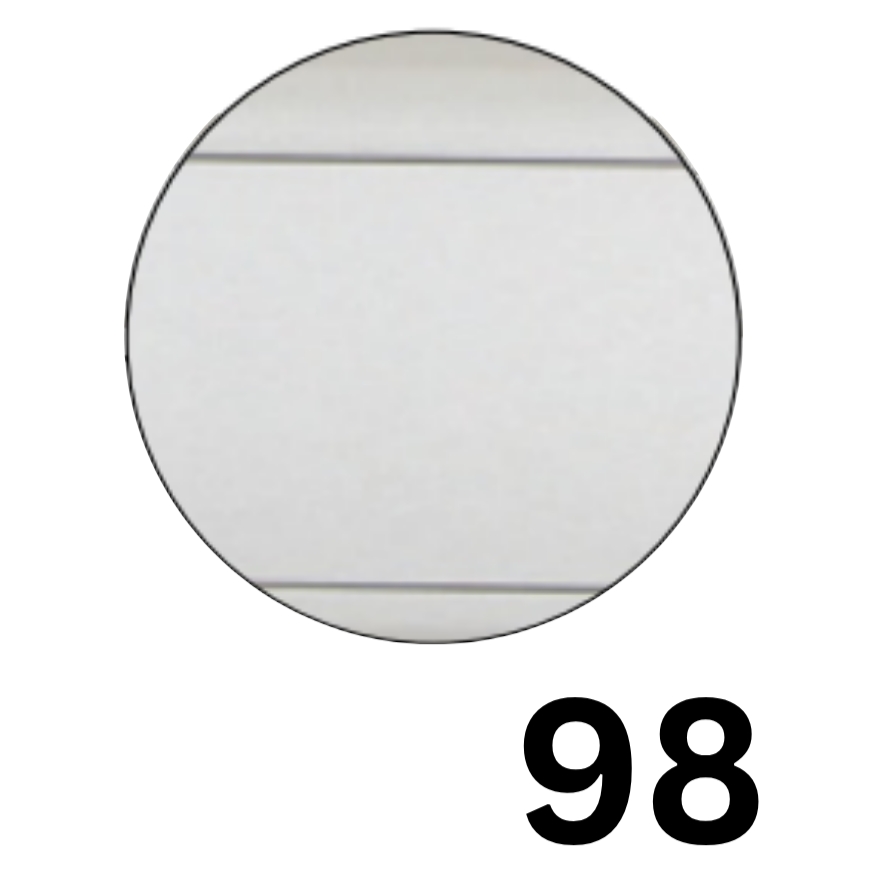

98 Series - Smooth mechanism case
98 Series - Smooth mechanism case

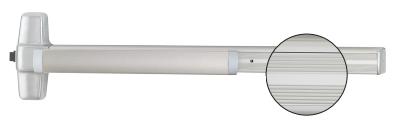

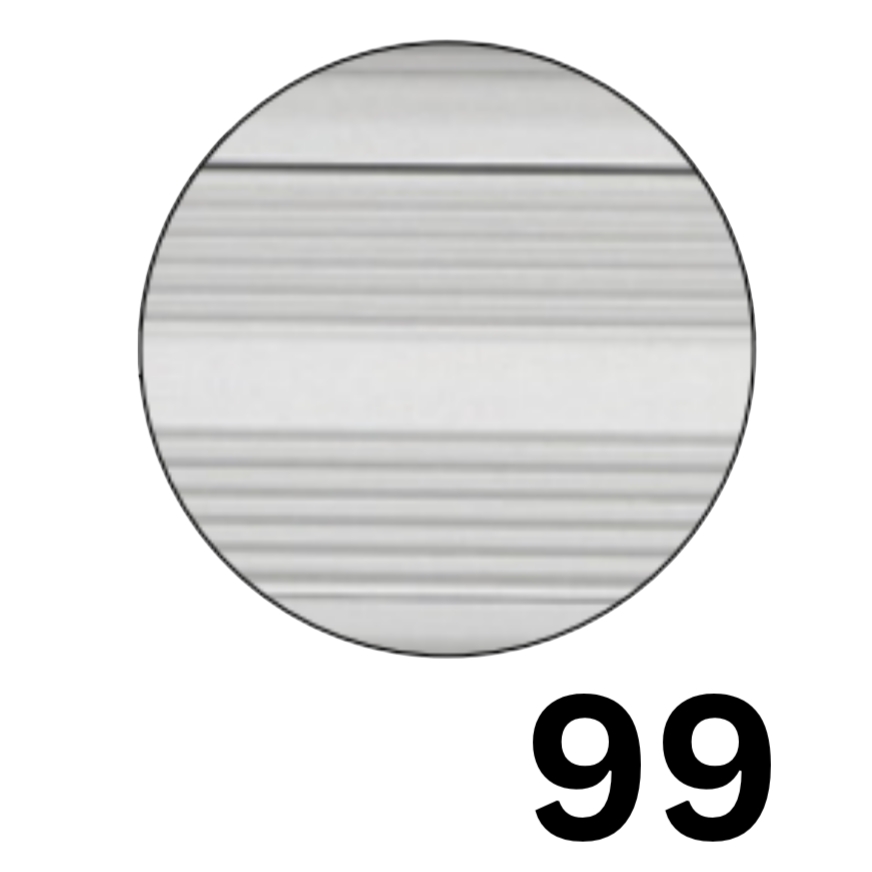

99 Series - Grooved mechanism case
99 Series - Grooved mechanism case

Size *

Finish *

Anodized, Aluminum - US28 (628)
Anodized, Aluminum - US28 (628)
Chromium, Dull - US26D (626) [+$115.50]
Chromium, Dull - US26D (626) [+$115.50]
Duranodic Dark Bronze - 313 (710) [+$64.68]
Duranodic Dark Bronze - 313 (710) [+$64.68]
Bronze, Dull - US10 (612) [+$149.16]
Bronze, Dull - US10 (612) [+$149.16]
Satin Stainless Steel - US32D (630) For 98 only [+$149.16]
Satin Stainless Steel - US32D (630) For 98 only [+$149.16]
Brass, Dull - US4 (606) [+$189.42]
Brass, Dull - US4 (606) [+$189.42]
Chromium, Polished - US26 (625) [+$333.30]
Chromium, Polished - US26 (625) [+$333.30]
Brass, Polished - US3 (605) [+$333.30]
Brass, Polished - US3 (605) [+$333.30]
Satin Nickel - US15 (619) For 98 only [+$333.30]
Satin Nickel - US15 (619) For 98 only [+$333.30]
Black - 315 (711) [+$654.06]
Black - 315 (711) [+$654.06]

Electrical Options *

$1,239.48

$1,878.00

You saved $638.52

About this item

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1,Click here for the 88/99 Series Trims section.

Von Duprin LD98EO/LD99EO Series Touch Bar Exit Device, Less Dogging  - Exit Only

The 98/99 Series devices are wide stile heavy-duty push pads. The 98/99 Series have all been certified to the highest industry standards and are commonly used in higher education, K-12 schools, hospitals, hospitality, and government buildings among others, Modular design allows ability to upgrade device to keep up with changing technology and meet a facility's changing needs. The 98 device has a smooth mechanism case and the 99 device has a grooved case.

Specifications: Device lengths:** - 3' Device, 2'4' to 3' (711mm to 914mm) Door size - 4' Device, 2'10" to 4' (864mm to 1219mm) Door size Device centerline from finished floor: - 39 13⁄16" (1011mm) - 39 11⁄16" (1008mm) with mullion Center case: - 8" x 2 3⁄4" x2 3⁄8" (203mm x 70mm x 60mm) Mechanism case: - 2 1⁄4" x 2 1⁄4" (57mm x 57mm) Latch Bolt: 3/4" (19mm) throw latch bolt. Strike: - Device is furnished with standard 299 strike in dull black finish Dogging: - Less dogging Projection: - Pushbar neutral  - 3 13/16" (97mm) - Pushbar depressed - 3 1/16" (78mm) Latch bolt Deadlocking: - 3⁄4" (19mm) throw Handing: - Non handed Finishes: - 605, 606, 612, 625, 626/626AM, 628, 710, 711 & 643e (619 and 630 available with 98 Series only). Fasteners and sex bolts (SNB): - Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) thick metal or wood doors (Optional 425 SNB available)

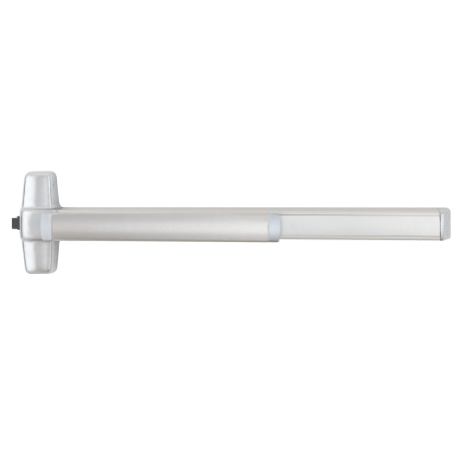

LD98EO 3 32D
Von Duprin LD98EO / LD99EO Rim Panic Exit Device - Less Dogging

Product code: LD98/99EO

In Stock

$1,878.00

$1,239.48

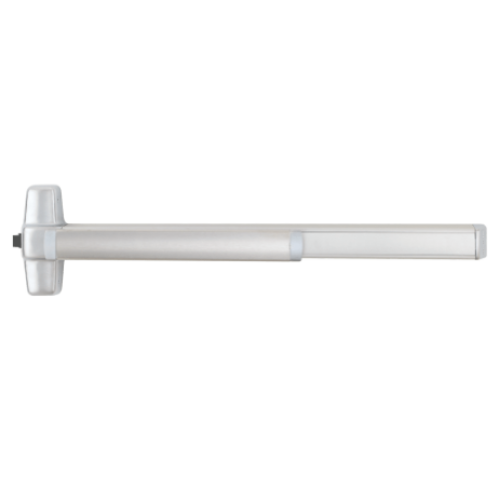

LD98EO 3 32D
Von Duprin LD98EO / LD99EO Rim Panic Exit Device - Less Dogging

Product code: LD98/99EO

In Stock

$1,878.00

$1,239.48
