Von Duprin RX299EO Rim Panic Device - Double Request to Exit Switch, Less Dogging

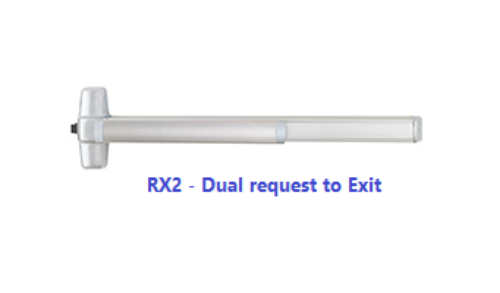

Von Duprin*RX299 Series Touch Bar Exit Device - Dual Request to Exit Switch, Less Dogging*- Exit Only

Request to exit (RX):The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch which monitors the push pad. The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. The RX switch option should not be used to control a load, but as a signalling switch (2 amps resisitive maximum). The RX switch is available in a low current (LC) 50ma max. Most commonly used to signal low-current access control inputs.

TheRX2feature uses two RX switches.

Devices are ANSI A156.3 2001 Grade 1.

The EL98 device has a smooth mechanism case and the EL99 device has a grooved case.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors

Latch Bolt:3/4" (19mm) throw latch bolt

Strike:Device is furnished with standard 299 strike in dull black finish

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel available with 98 Series only

Dimensions

Device lengths:3' 2'4' to 3' (711mm to 914 mm) Door Size  -  4' 2'10" to 4' (864 mm to 1219 mm) Door Size

Device Centerline from Finished Floor:39-13/16" (1011 mm)  -  39-11/16" (1008 mm) with Mullion

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm)

Projection:Pushbar Neutral 3-13/16" (97 mm)  -  Pushbar Depressed 3-1/16" (78 mm)

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin RX298, RX299, RX298EO, RX299EO, RX298/RX299, RX298/EL99EO, RX298

Solenoid Specifications: Solenoid Resistance: Continuous Duty - 24 VDC -grn-yel 1.2 - 2.2 OHMS Current Inrush -16 Amps -grn-org 100 - 150 OHMS Current Holding - 0.3 Amps
