Von Duprin RXQEL98EO / RXQEL99EO Rim Panic Device Electric Latch Retraction, Request to Exit

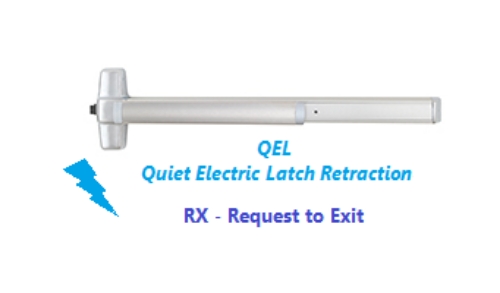

Von Duprin*RXQEL98/RXQEL99 Series Touch Bar Exit Device with Quiet Electric Latch Retraction - Exit Only - Request to Exit*

The QEL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. Different than the popular EL, the QEL quiet operation is achieved using an electric drive motor which retracts the latch bolt either momentary unlatching or for extended periods of time. This feature is an alternative to manual dogging. QEL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.UL approvedfor Class II circuit applications.

The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply.Devices areANSIA156.3 2001 Grade 1.

Request to exit (RX) - The RX feature is used to signal the use of an opening. This device is equipped with one internal SPDT switch which monitors the push pad. The device can be connected to a security console, or may be used as a single door alarm when used with a horn and power supply. The RX switch option should not be used to control a load, but as a signalling switch (2 amps resisitive maximum). The RX switch is available in a low current (LC) 50ma max. Most commonly used to signal low-current access control inputs.

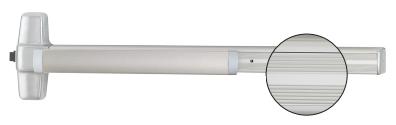

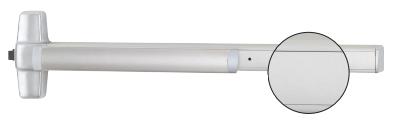

The QEL98 device has a smooth mechanism case and the QEL99 device has a grooved case.

Covers stock hollow metal doors with 86 or 161 cutouts on single doors

Latch Bolt:3/4" (19mm) throw latch bolt

Strike:Device is furnished with standard 299 strike in dull black finish

Fasteners:Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available

Finishes:US3 - Polished Brass , US4 - Dull Brass, US10 - Dull Bronze, US15 - Satin Nickel, US26 - Polished Chromium, US26D - Dull Chromium, US26D-AM Antimicrobial Satin Chrome, US28 - Anodized Aluminum, 313 - Duranodic Dark Bronze, 315 - Black,US32D - Satin Stainless Steel available with 98 Series only

Dimensions:

Device lengths:3' 2'4' to 3' (711mm to 914 mm) Door Size - 4' 2'10" to 4' (864 mm to 1219 mm) Door Size.

Device Centerline from Finished Floor:39-13/16" (1011 mm) - 39-11/16" (1008 mm) with Mullion.

Center Case Dimensions:8" x 2-3/4" x 2-3/8" (203mm x 70mm x 60mm).

Projection:Pushbar Neutral 3-13/16" (97 mm) - Pushbar Depressed 3-1/16" (78 mm).

All 98 and 99 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade 1.

Model: Von Duprin QEL98, QEL99, QEL98EO, QEL99EO, QEL98/QEL99, QEL98/QEL99EO, RXQEL98, RXQEL99, RXQEL98EO, RXQEL99EO, US3, US4, US10, US10B, US26, US26D, US28, US32D

Von Duprin RXQEL98EO / RXQEL99EO Rim Panic Device Electric Latch Retraction, Request to Exit

Product code: RXQEL98/99

In Stock

$3,582.00

$2,364.12

Solenoid Specifications: Solenoid Resistance: Continuous Duty - 24 VDC -grn-yel 1.2 - 2.2 OHMS Current Inrush - 16 Amps -grn-org 100 - 150 OHMS Current Holding - 0.3 Amps
