About this item

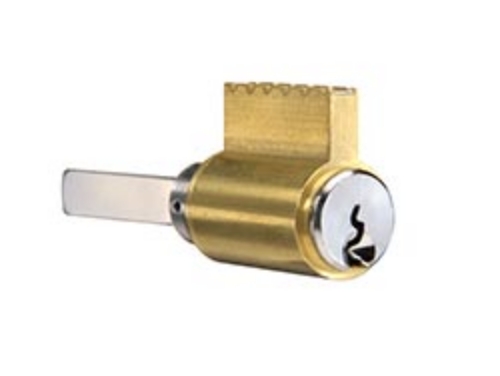

The Accentra 1802 is the standard conventional lever cylinder for the Yale 5400LN, 5300LN, 6400LN, and inTouch lever lock series, as well as the 440F, 540F, and 580F trim lines. If you searched "1802 part number specifications" or "yale cylindrical locks" cylinder replacement -the 1802 is the factory-standard keying cylinder that drops into the lever housing of these widely deployed Yale commercial locksets. Accentra is the current brand name for Yale commercial hardware under ASSA ABLOY. Same cylinder, same specifications, same lock series compatibility -the name on the catalog changed, the product did not.
What the 1802 Cylinder Is
The 1802 is a key-in-lever cylinder -a cylinder format specific to lever locksets rather than the rim or mortise cylinder formats used in exit devices and mortise locks. It seats inside the lever housing, and the key turns it to operate the locking mechanism. The 1802 is a conventional cylinder with a fixed core -it pins conventionally and cannot accept a removable IC core. If your application requires a removable interchangeable core, a different cylinder model is required.
This is the cylinder you order when an existing Yale 5400LN or related lever lock needs to be keyed, rekeyed by cylinder replacement, or when building a new installation where the cylinder must be matched to an existing master key system before installation.
1802 Part Number: Complete Compatibility Matrix
The 1802 is standard for these Yale cylindrical lockset series:
Standard (no sleeve required): 5400LN Series heavy-duty lever locks, 6400LN Series, inTouch lever locks, 540F Series trim, 580F Series trim.
Optional (sleeve 14-5305-9078-999 required): 4700LN Series, 5300LN Series, inTouch trims, 440F Series trim.
This is the critical ordering detail that no competitor page addresses. When the 1802 is used with 4700LN, 5300LN, inTouch, or 440F applications, sleeve part number 14-5305-9078-999 is required. Without the sleeve, the cylinder will not seat correctly in those lever housings. If you're replacing a 1802 in a 5300LN lock and the new cylinder doesn't feel right, the sleeve is almost certainly missing.
1802 vs 1801: The Lever vs Knob Distinction
The 1802 and 1801 are both standard conventional cylinders for the 5300 and 5400 Series, but they serve different product formats within that platform. The 1801 is for 5300 and 5400 Series knob locks and 540F trim (knob format). The 1802 is for 5400LN, 5300LN, 6400LN, and inTouch lever locks and the 440F, 540F, and 580F lever trim series. The LN designation on the lockset model number confirms lever format -always confirm LN vs non-LN before ordering the cylinder.
1802 vs 2802: Yale vs Schlage Keyway
If your facility runs Schlage C keyway rather than Yale PARA or G-series keyways, the 2802 is the correct cylinder. The 2802 is the same cylinder format for the same lock series but in Schlage C keyway. The compatibility matrix and sleeve requirements for the 2802 are identical to the 1802. The only difference is the keyway. Confirm your facility's key system before ordering -you cannot re-key a PARA cylinder to accept a Schlage C key.
Keyways, 0-Bitted, and KA/KD
The 1802 ships in PARA and G-series keyways. PARA (ER1 keyway) cylinders ship keyed -a specific key cut is already in place and two operating keys are included. PARA cylinders can be ordered KD (keyed different, each cylinder gets a unique key) or KA (keyed alike, multiple cylinders operate on the same key).
All G-series keyway cylinders -GA, GB, GC, GD, GE, GF, GG, GH -ship 0-bitted. Every cut is at zero depth. The cylinder will not turn with any standard key until it's combinated by a locksmith or distributor to your specific key cuts. Order G-series 0-bitted when the cylinder will be combinated in the field to match an existing master key system. Order PARA KD or KA when the cylinder can be used keyed as-is or needs to match existing PARA key cuts.
Yale Cylindrical Locks Context
The 5300LN and 5400LN are Yale's two primary commercial cylindrical lever lock series. The 5300LN is a Grade 2 lever lock for standard commercial applications. The 5400LN is the Grade 1 heavy-duty lever lock with free-wheeling lever mechanism, wear-resistant chassis plates, thread-locking thrubolts, and lifetime warranted lever return springs -the heavy-duty institutional specification. Both series use the 1802 cylinder, making it the most commonly replaced lever cylinder in the Yale commercial lockset catalog.
Specifications
Model: Accentra 1802 / Yale 1802
Former Brand: Yale (now Accentra, ASSA ABLOY)
Type: Standard conventional key-in-lever cylinder
Pin Count: 6-pin
Standard Applications: 5400LN, 6400LN, inTouch, 540F, 580F (no sleeve required)
Optional Applications: 4700LN, 5300LN, inTouch trims, 440F (sleeve 14-5305-9078-999 required)
Keyways: PARA (ER1), GA, GB, GC, GD, GE, GF, GG, GH
G-Series Bitting: 0-bitted (requires combinating)
PARA Bitting: Keyed (two operating keys included)
Keying: KD (keyed different) or KA (keyed alike)
Schlage C Keyway Alternative: 2802
Finishes: 626 (satin chrome), 605, 606, 612, 613, 625
American Locksets has stocked Accentra and Yale lever cylinders since 2001.
