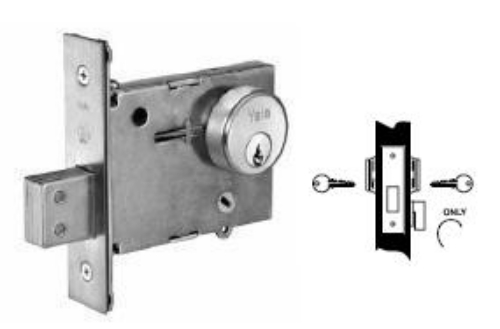

Accentra (Yale) 356 Double Cylinder W/Thumbturn inside Mortise Deadbolt

Double Cylinder  with Thumbturn Inside, Mortise DeadboltDeadbolt operated by key outside and inside. Inside thumbturn will retract deadbolt, but will not project it. Uses classroom function mortise lockbody.

Application:Mortise installation for1-3/4" (44mm) doors.

Backset:2-3/4" (70mm) only.

Handing:Functions are non-handed and easily field reversible.

Deadbolt:Laminated stacked steel with hardenedpin, 1" (25mm) throw.

Front:4-5/8" x 1-1/8" (117mm x 29mm)Brass, bronze or stainless steel.Adjustable to accommodate flator beveled-edged doors (beveladjustment 1/8" in 2" (3mm in 51mm).

Case:Heavy wrought steel, zinc plated anddichromated.

Strike:3-1/2" x 1-1/8", model number 30Sprovided standard. ANSI/BHMAA156.115 strike 4-7/8" x 1-1/4",model number 545N optional.

Cylinder:1-1/8", 6-pin fixed core mortise cylinder, model number 2153 x 2160 cam provided standard.

Door prep:The 350 series mortise deadlocksconform to ANSI/BHMA SpecificationsA156.115 which cover hardwarepreparations for steel doors and steelframes and A156.115-W which coverhardware preparations for wood doorswith wood or steel frames.Fire listings:350 series deadlocks, when used inconjunction with the primary latchingdevice, are UL - cUL listed for use onfire doors having a rating up to andincluding 3 hours. In addition, the350 series are cUL listed for use onwood doors having a rating up to andincluding 90 minutes.Note: Any retrofit or other field modification to a firerated opening can potentially impact the fire ratingof the opening, and Yale Locks & Hardware makesno representations or warranties concerning what such impact may be in any specific situation.When retrofitting any portion of an existing firerated opening, or specifying and installing anew fire-rated opening, please consult with acode specialist or local code official (AuthorityHaving Jurisdiction) to ensure compliance with allapplicable codes and ratings.
