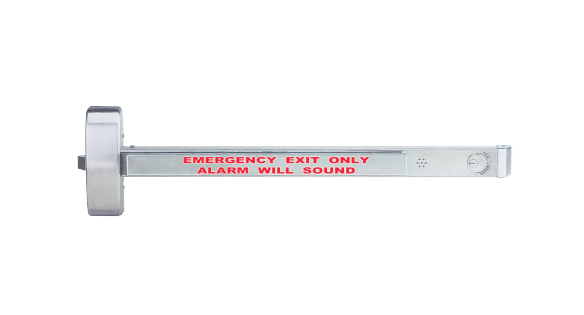

Cal-Royal NALRMA9800EO Rim Push Bar Alarm Exit Device

Cal-Royal NALRMA9800EO*Rim Push Bar Alarmed Exit Panic Device*

Retrofits Sargent 8800 Series using 9800 Escutcheon Trim

Alarm Features:Alarm units have an internal horn. When the push rail is depressed, the horn sounds to provide an audible means of signaling that the door has been opened and violated. The unit has changeable 2 minute alarm cutoff or manual reset. Preset at factory for 2 minute alarm cut off. Jumper cable is provided to switch to continuous alarm. The key switch to turn the alarm off is a standard 1-1/4" cylinder with "C" keyway. The alarm operates on one standard 9 volt transistor battery. When battery is weak the horn will emit an intermittent signal. Alarmed units are supplied with two switches. One switch monitors the push rail and the other switch monitors the latchbolt for full proof security. Unit includes "emergency exit only. Alarm will sound" decal for application on door or unit.

Door Thickness:1-3/4" thick standard optional 2-1/4" thick.

Stile:4-1/2" minimum stile width required for single or double door application using standard 239 strike and pull or lever, thumbpiece and escutcheon trims.

Chassis - Nonferrous ally (Panic Grade), steel (Fire Grade)

Cover - Brass, bronze or stainless steel. Covers stock hollow metal doors with 161 cutout.

Mounting - Furnished with wood and machine screws. Available with thru bolts on request.  Thru bolts are included and standard packaging on fire rated devices. End Cap - Brass, bronze or stainless steel construction.

Hand - Non-handed, Center hub.

Latch Bolt - Stainless steel 3/4" throw.

Spring - Stainless steel throughout.

ANSI Standard - A156.3, Grade 1.

Rail Assembly - Heavy gauge brass, bronze or stainless steel.

Strike - 239 packed standard.

Dogging Feature - Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.

UL and ULC Listed - 9800 Series for panic. F9800 Series for fire exit hardware for all types or 4' x 8' single doors and 8' x 8' double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.

Dimensions: Touchbar height to finished floor 41" (1034mm) at center

Touchbar projection: neutral 2-1/2" (64mm), 1-3/4" (45mm)

Center case: 8-1/2x 2 1/2x 2 (216mm X 69mm X 52mm)

Model: NALRMA9800EO, NALRMA9800EO36, NALRMA9800EO48,

All exit devices must be listed under "Panic Hardware" in the Accident Equipment List of Underwriters' Laboratories, Inc. Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC 7-2-1997 codes

All springs shall be of stainless steel throughout

All exit devices shall be of chassis mounted unit construction

All exit devices shall be ANSI A156.3, Grade 1

All exit devices shall be of touch bar design with smooth operation and be operative over 2/3 of the door's clear opening width
