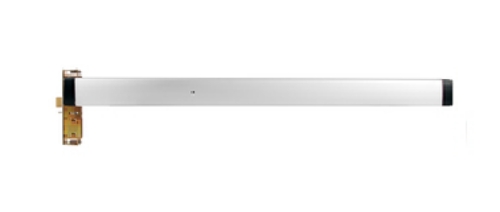

Adams Rite 8400-28036-US32D Life Safety Narrow Stile Mortise Exit Device, 36 In., LHR, 31/32" backset
Product Details
Adams Rite 8400-28036-US32D Life Safety Narrow Stile Mortise Exit Device, For Aluminum Applications, 36 In., LHR, Satin Stainless Steel,*For Use In single Door Applications.*
Certifications:
UL 305 Panic Hardware

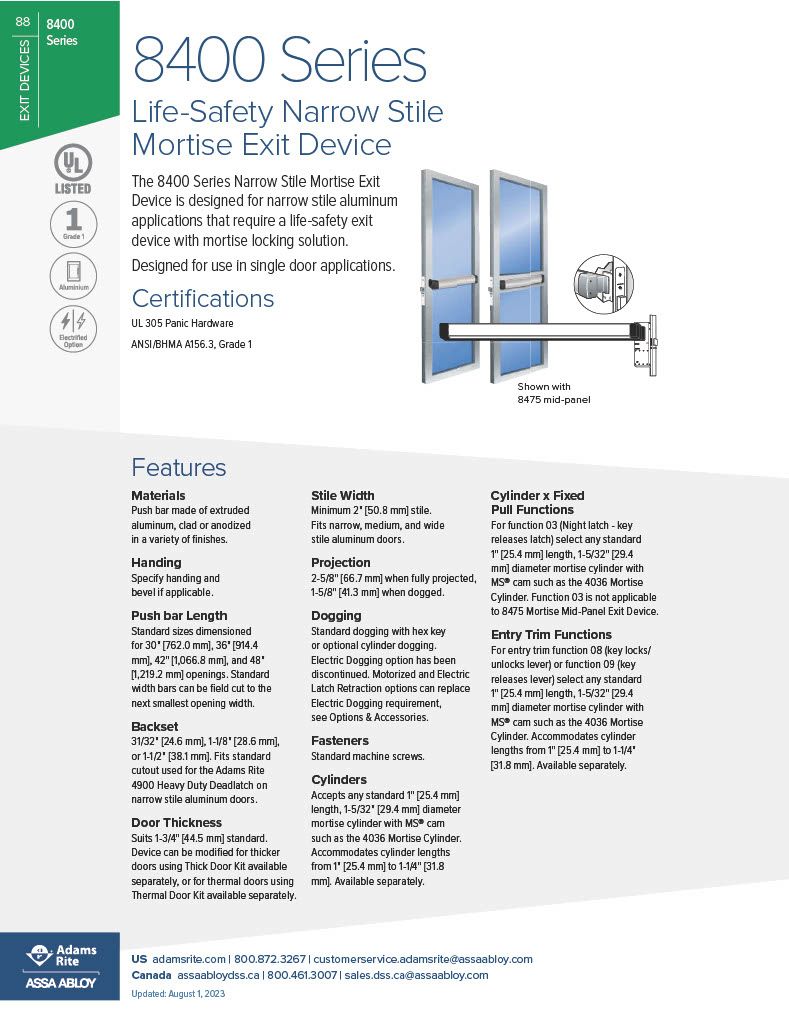

8400*(Life-Safety)Series**Features:*
Materials:Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing:Specify handing and bevel if applicable.
Push bar Length:Standard sizes dimensioned for 30" [762.0mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48"[1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Backset:31/32" [24.6 mm], Fits standard cutout used for the Adams Rite 4900 Heavy Duty Deadlatch on narrow stile aluminum doors.
Door Thickness:Suits 1-3/4" [44.5 mm] standard. Device can be modified for thicker doors using Thick Door Kit available separately, or for thermal doors using Thermal Door Kit available separately.
Stile Width:Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Projection:2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
Dogging:Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
Fasteners:Standard machine screws.
Cylinders:Accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to1-1/4" [31.8 mm]. Available separately.
Cylinder x Fixed Pull Functions:For function 03 (Night latch - key releases latch) select any standard 1" [25.4 mm] length,1-5/32" [29.4 mm] diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. Function 03 is not applicable to 8475 Mortise Mid-Panel Exit Device.
Entry Trim Functions:For entry trim function 08 (key locks/unlockslever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32"[29.4 mm] diameter mortise cylinder with MS cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.

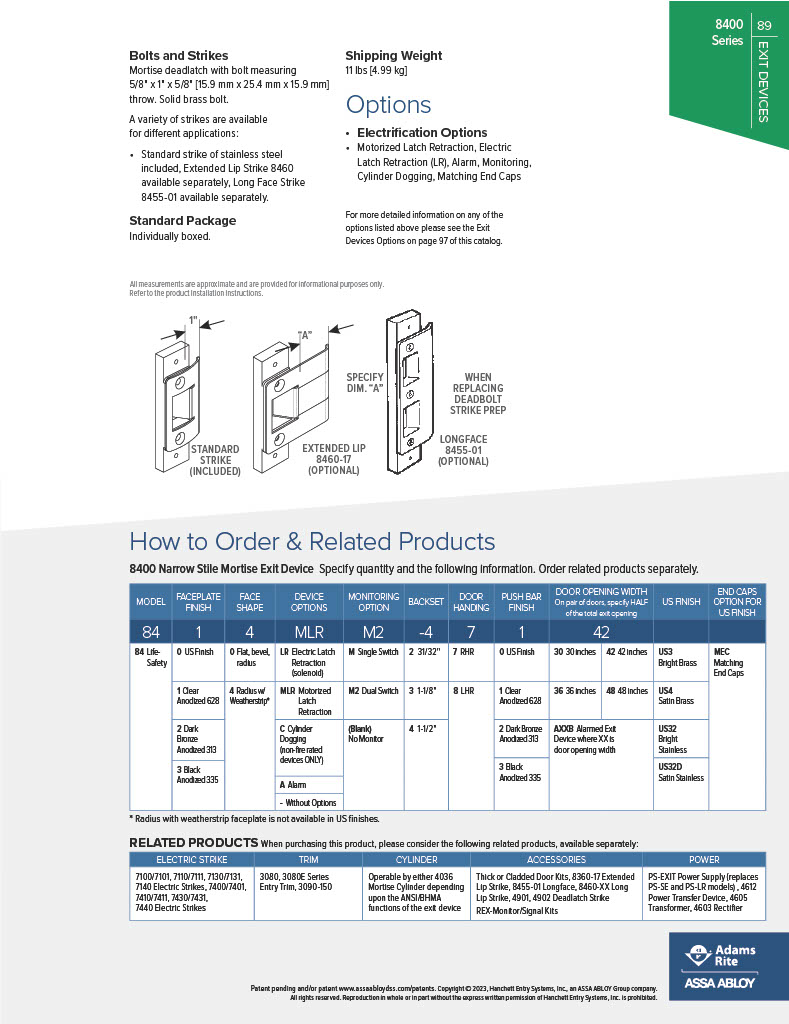

Bolts and Strikes:Mortise deadlatch with bolt measuring 5/8" x 1" x 5/8" [15.9 mm x 25.4 mm x 15.9 mm] throw. Solid brass bolt. A variety of strikes are availablefor
different applications:
Standard strike of stainless steel included, Extended Lip Strike 8460available separately,Long Face Strike 8455-01available separately.
Shipping Weight:11 lbs [4.99 kg]
Options:
Electrification Options:(MLR) Motorized Latch Retraction, Electric Latch Retraction(LR), Alarm, Monitoring
Mechanical Options:Cylinder Dogging, Matching End Caps
Related Products:When purchasing this product, please consider the following related products, available separately:
Accessories:
Thick or Cladded Door Kits, 8360-17 Extended Lip Strike, 8455-01 Longface, 8460-XX Long Lip Strike, 4901 & 4902 Deadlatch Strike, REX-Monitor/Signal Kits
Cylinders: Operable by either 4036 Mortise Cylinder depending upon the ANSI/BHMA functions of the exit device.
Trim: 3080, 3080E Series EntryTrim, 3090-150, 3090P/3090C, A100 Series Keyless Entry.
Electric Strikes:7100/7101, 7110/7111, 7130/7131, 7140, 7400/7401, 7410/7411, 7430/7431, 7440,
Power: PS-SE, PS-LR, PS-EXIT Power Supply, 4612 Power Transfer Device, 4605 Transformer, 4603 Rectifier.
