Alarm Controls 600LBDURO Electromagnetic Lock with Bond Sensor, Door Status Sensor & Status LED- Single - 600 lbs - Dark Bronze

Alarm Controls 600LBDURO Electromagnetic Lock with Bond Sensor, Door Status Sensor & Status LED- For Single Doors - 600 lbs Holding Force, Dark Bronze finish.

Bond sensor and door status sensor signal a powered and securely locked door

Specifications:

600 lbs holding force

Magnet size:9-7/8" L x 1-11/16" H x 1" W

Armature size:7-1/4" L x 1-1/2" H x 1/2" W

Operates on 12 or 24 VDC, selectable

Low current draw:400 mA at 12 VDC, 200 mA at 24 VDC

perating temperature:+14 to +131F [-10 to +55C]

Sensors have SPDT 3A relay contacts

LED Green:Door Closed and magnetic lock energized#No value#LED Off: No power to lock#No value#LED Red: Door open and magnetic lock energized

Bond Sensor:The bond sensor uses a hall effect sensor that detects a magnetic field. When the magnetic lock is energized and the door is closed, a SPDT relay turns on. When the door is open the relay does not turn on.

Product Features:

Self drilling TEC screws.

Built-in arc suppression.

Instant release, no hysteresis.

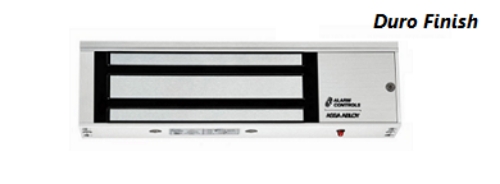

Dark Bronze finish.

E-Z mount system, no special tools required.

Bi-colored status LED signals a powered and securely sealed door.

Limited lifetime warranty.

Clear anodized (US28) finish.

Certifications & Listings

UL 10C fire rated.

CAN4-S104 (ULC-S104) fire door conformant.

ULC-S527 listed.

UL 864 listed.
