Product Details

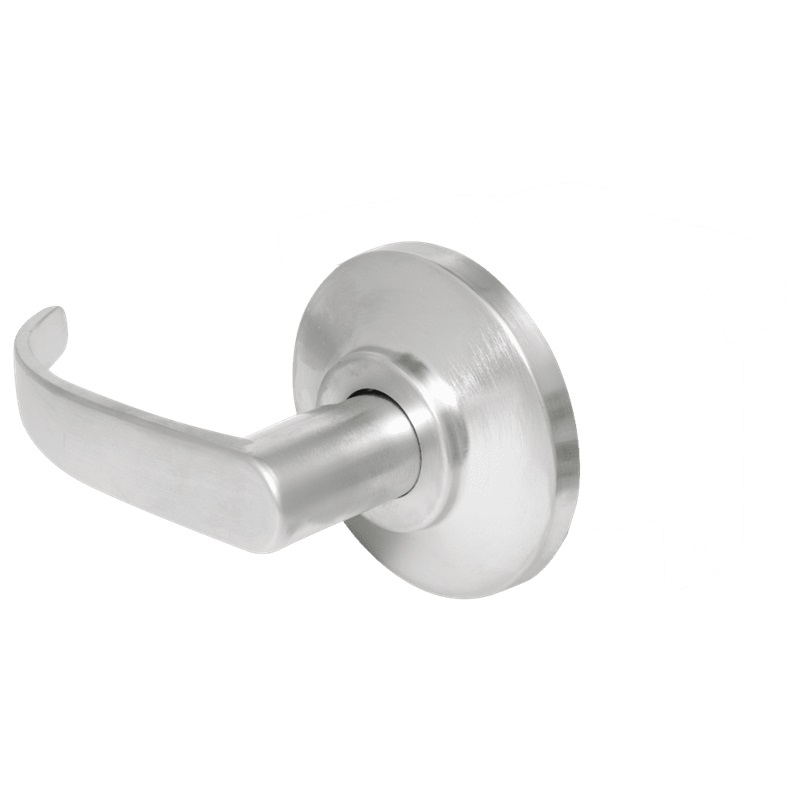

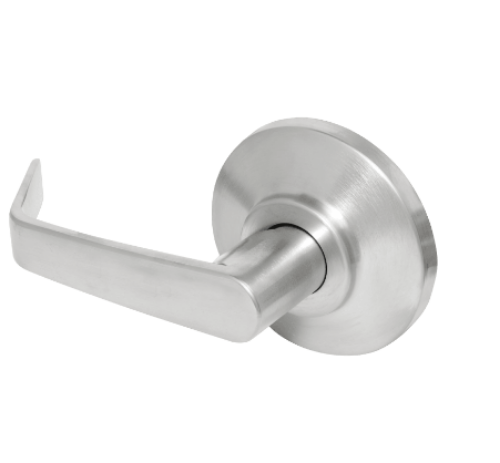

BEST 7KC-01DT Single Dummy Trim

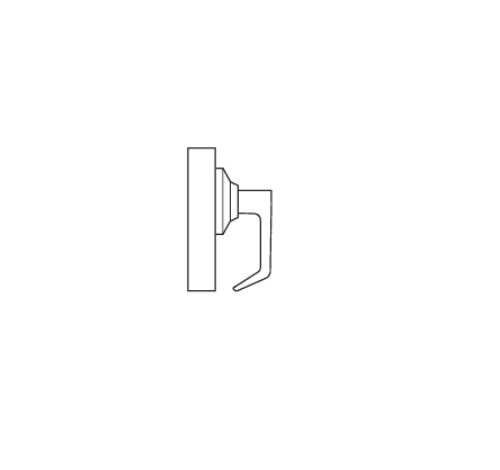

Function- Single Dummy Trim
Description- This is a single, surface-mounted lever for an inactive door or a non-latching door
Backset- 2 3/4" standard. 2-3/8", 3 3/4" and 5" available.

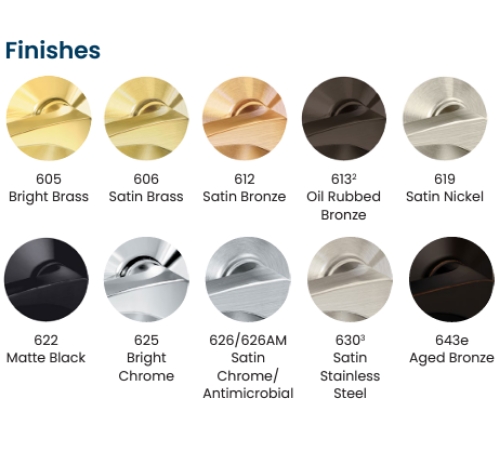

Finishes- 605 bright brass, 606 satin brass, 612 satin bronze, 613 oxidized satin bronze, oil rubbed, 625 bright chromium plated, 626 satin chromium plated
Latch- 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1 x 5/32" for 2 3/8" backset.
Lever- 5 1/4" ong handle with return. Projection on door 2 1/2" . Zinc base, plated to match finish.
Material- Component parts include brass, bronze or zinc. Internal parts are zinc dichromate steel.
Mounting- 2 1/8" diameter bore for lock housing, 1diameter for latch tube.
Rose-D3 1/2" diameter mounting screws concealed.
Strike-S34 7/8" x 1 1/4" with curved lip & box.(ANSI A115.2 for 1 3/4" doors).
Door thickness- 1 3/8" to 2".
Cylindrical chassis to fit common door preparation.
Through-bolt mounting studs increase torque resistance.
No exposed keeper hole on keyed levers for increased security.
Hub torque spring provides extra resistance to lever sag.
Snap-on inside rose (no exposed mounting screws).
Internal steel mechanisms are corrosion treated for normal atmospheric conditions.
Lockset reversible for either hand of door without removing keyed lever.

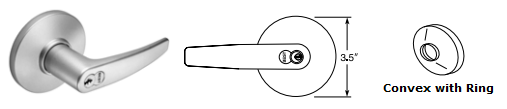

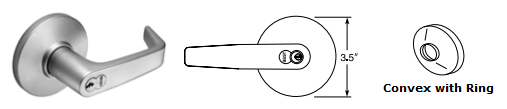

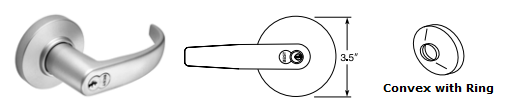

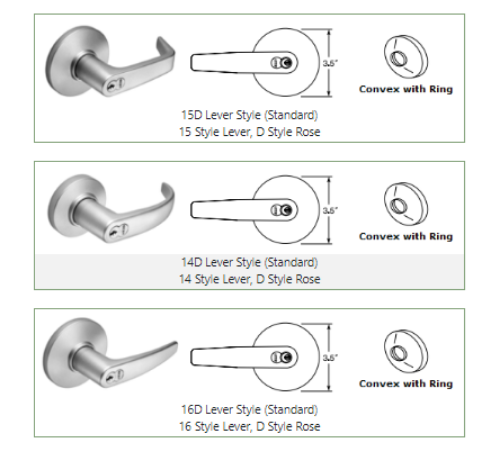

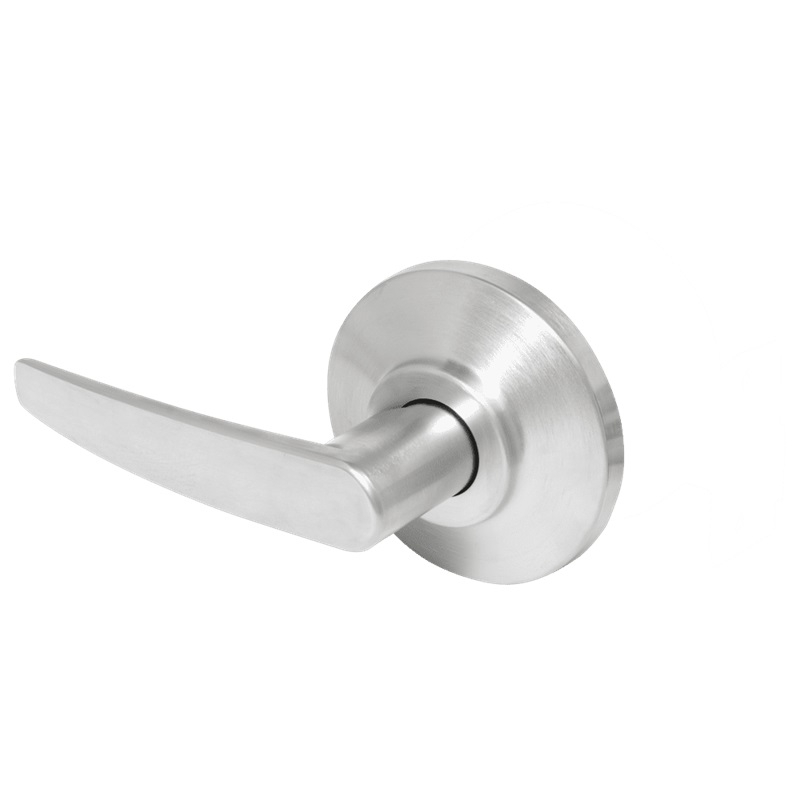

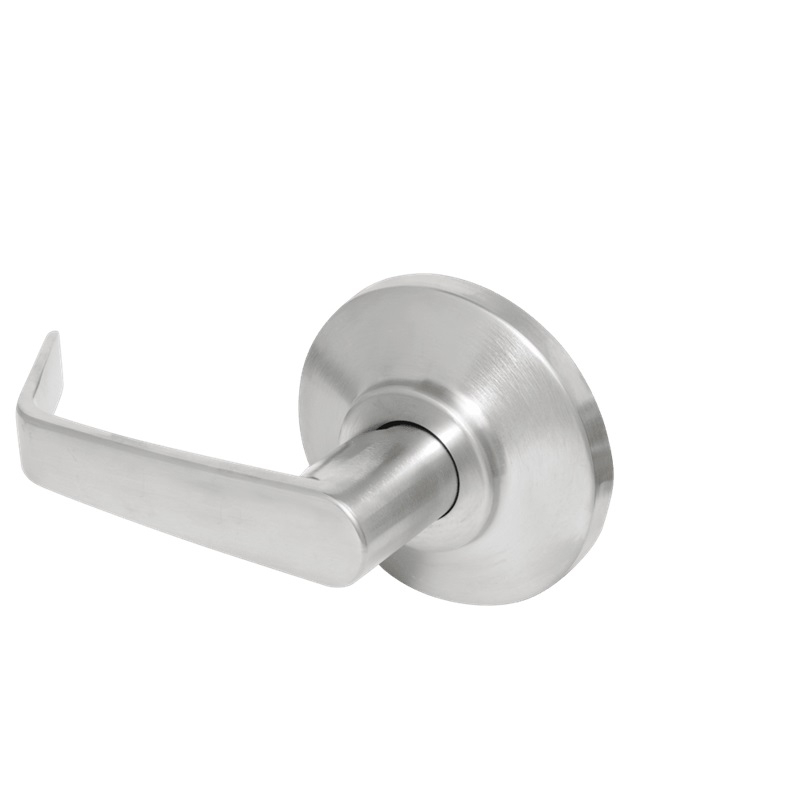

Model:Best7KC-01DT14D-605, 7KC-01DT14D-612, 7KC-01DT14D-613, 7KC-01DT14D-626, 7KC-01DT15D-605, 7KC-01DT15D-612, , 7KC-01DT15D-613, 7KC-01DT15D-626, 7KC-01DT16D-605, 7KC-01DT16D-612, 7KC-01DT16D-613, 7KC-01DT16D-626
7KC01DT14D605, 7KC01DT14D612, 7KC01DT14D613, 7KC01DT14D26, 7KC01DT15D-605, 7KC01D15D612, , 7KC01DT15D613, 7KC01DT15D626, 7KC01DT16D605, 7KC01DT16D-12, 7KC01DT16D613, 7KC01DT16D626
