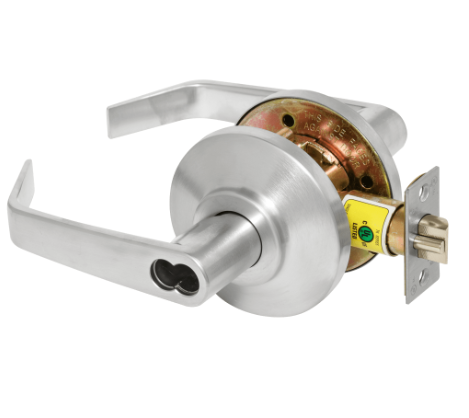

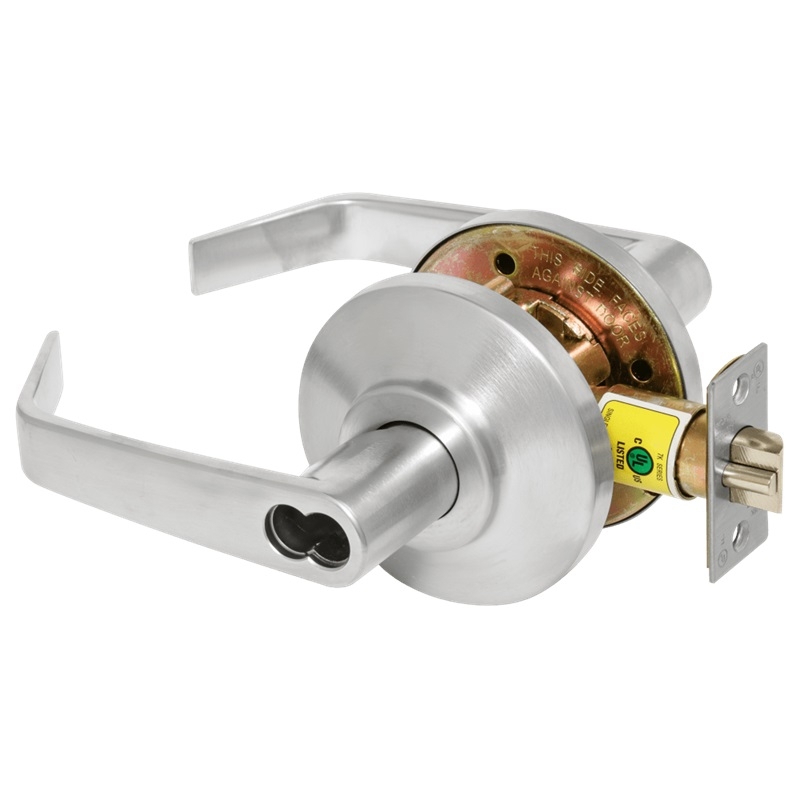

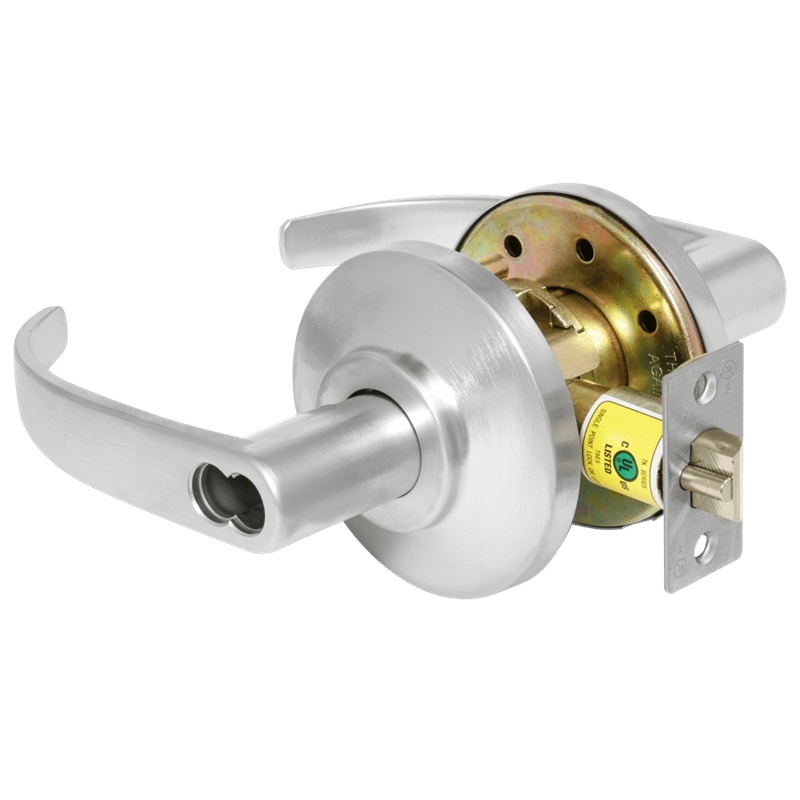

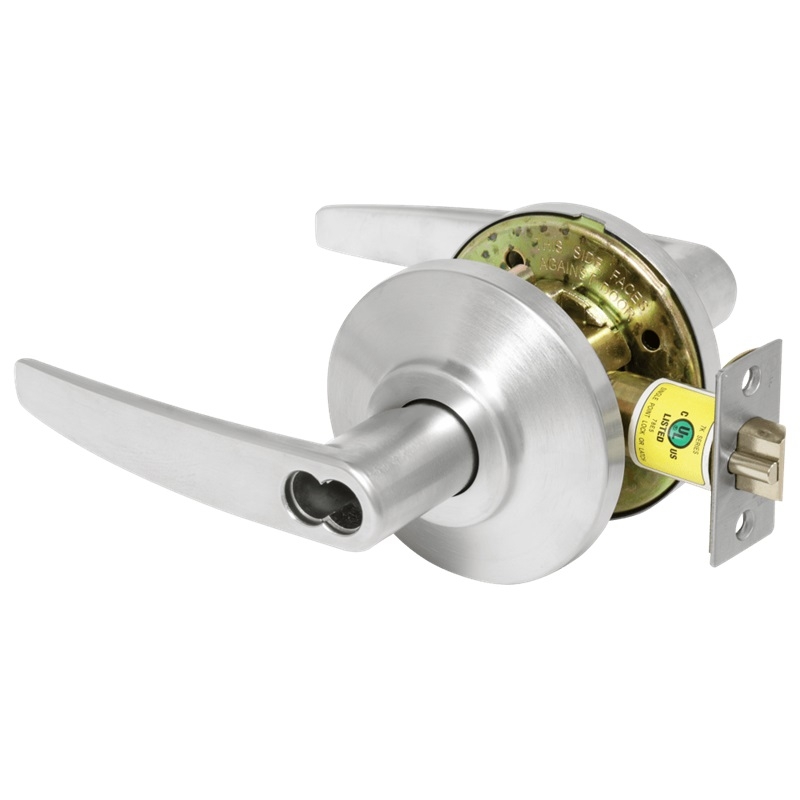

BEST 7KC37R Grade 2 Classroom Lever Lock

BEST 7KC-3-7-R Grade 2 Classroom Lever Lock

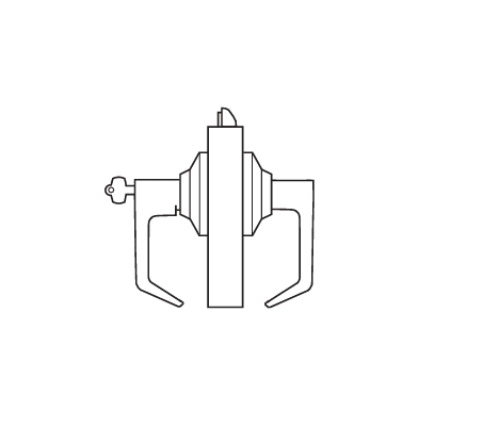

Function:ANSI # F84 Classroom Lock

Latch operated by:Rotating inside lever, Turning key in outside lever when outside lever is locked, Rotating outside lever when not locked by key

Outside Lever Locked by:Turning key in outside lever

Outside Lever Unlocked by:Turning key in outside lever

Inside Lever Locked by:Cannot be locked

Inside Lever Unlocked by:Always Unlocked

Backset2 3/4" standard. 2-3/8", 3 3/4" and 5" available.

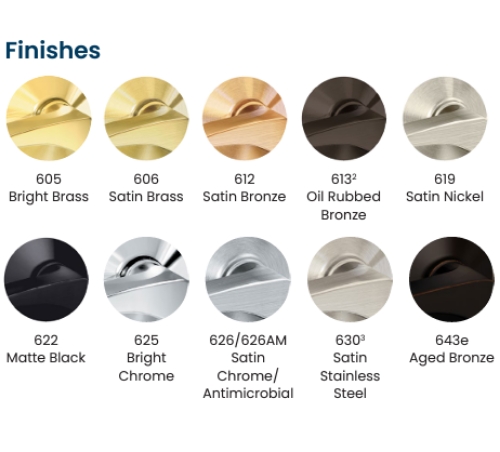

Finishes605 bright brass, 606 satin brass, 612 satin bronze, 613 oxidized satin bronze, oil rubbed, 625 bright chromium plated, 626 satin chromium plated

Interchangeable coreSolid brass, pin-tumbler type in lever with 7-pin core.

Latch1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.

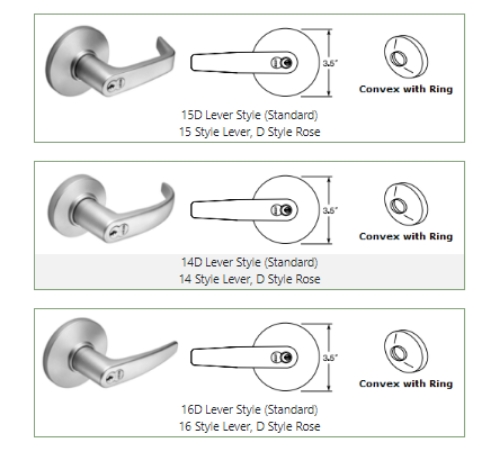

Lever5 1/4" long handle with return. Projection on door 2 1/2" . Zinc base, plated to match finish.

MaterialComponent parts include brass, bronze or zinc. Internal parts are zinc dichromate steel.

Mounting2 1/8" diameter bore for lock housing, 1" diameter for latch tube.

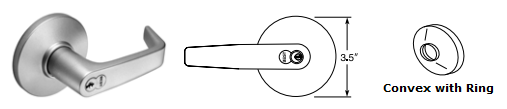

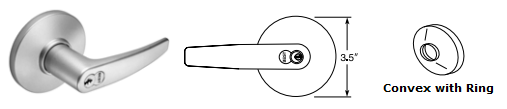

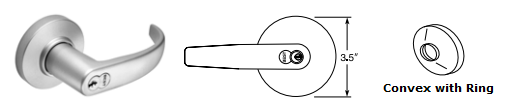

Rose*D*3 1/2" diameter mounting screws concealed.

Strike*S3*4 7/8" x 1 1/4" with curved lip & box.(ANSI A115.2 for 1 3/4" doors).

Door thickness1 3/8" to 2" .

Cylindrical chassis to fit common door preparation.

Through-bolt mounting studs increase torque resistance.

No exposed keeper hole on keyed levers for increased security.

Hub torque spring provides extra resistance to lever sag.

Snap-on inside rose (no exposed mounting screws).

Internal steel mechanisms are corrosion treated for normal atmospheric conditions.

Lockset reversible for either hand of door without removing keyed lever.

Model:Best  7KC37R14DS3, 7KC37R14DS3605, 7KC37R14DS3612, 7KC37R14DS3613, 7KC37R14DS3626, 7KC37R15DS3605, 7KC37R15DS3612, 7KC37R15DS3613, 7KC37R15DS3626, 7KC37R16DS3605, 7KC37R16DS3612, 7KC37R16DS3613, 7KC37R16DS3626, 7KC-37R14D-S3, 7KC-37R14DS3605, 7KC-37R14DS3-612, 7KC-37R14DS3-613, 7KC-37R14DS3-626, 7KC-37R15DS3-605, 7KC-37R15DS3-612, 7KC-37R15DS3-613, 7KC-37R15DS3-626, 7KC-37R16DS3-605, 7KC-37R16DS3-612, 7KC-37R16DS3-613, 7KC-37R16DS36-26

ADA Americans With Disabilities Act: 7KC series The design and operation of the BEST cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).

Underwriters Laboratories: 7KC series Listed by Underwriters Laboratories for use on 3 Hr, A label for single (4' x 8') doors.

Builders Hardware Manufacturers Association: 7KC series Listed by BHMA for A156.2, Series 4000, Grade 2.

ADA Americans With Disabilities Act: 7KC series The design and operation of the BEST cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).

California State Fire Marshal: 7KC - series 14 & 15 lever conforms with California Title 24.
