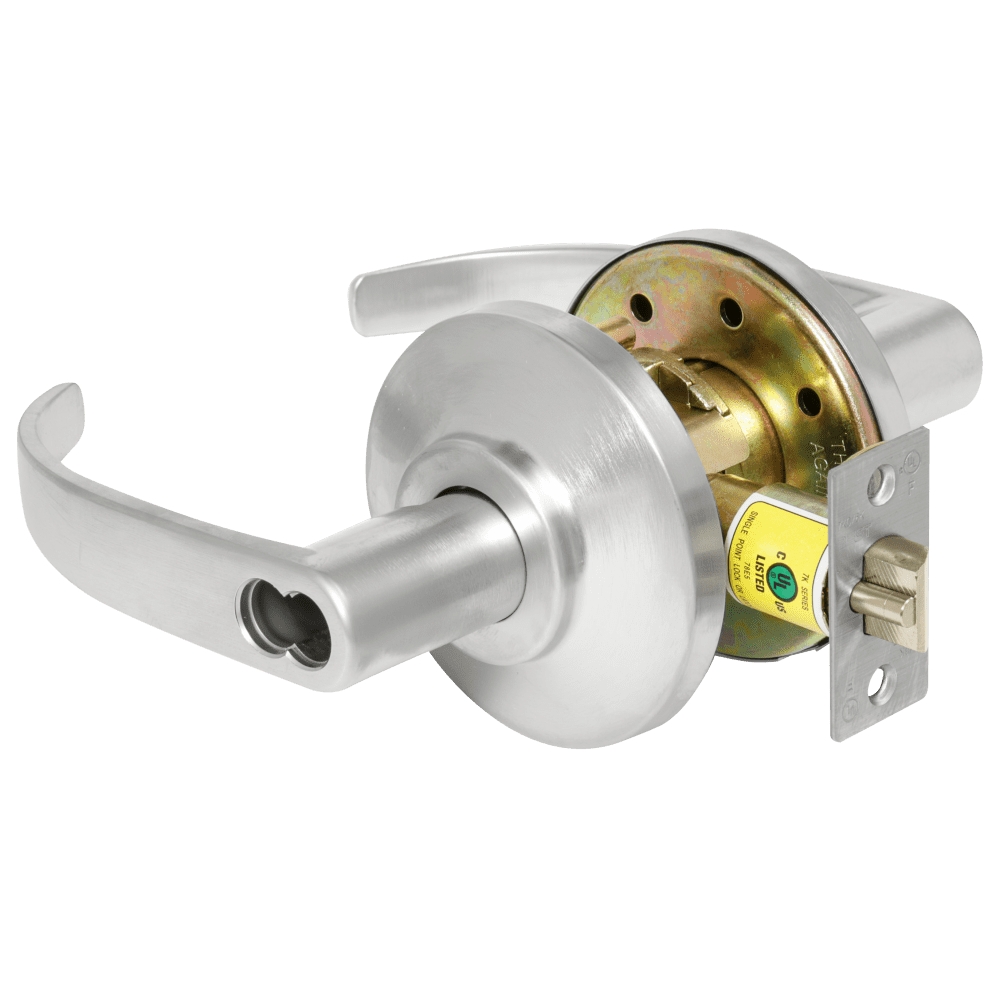

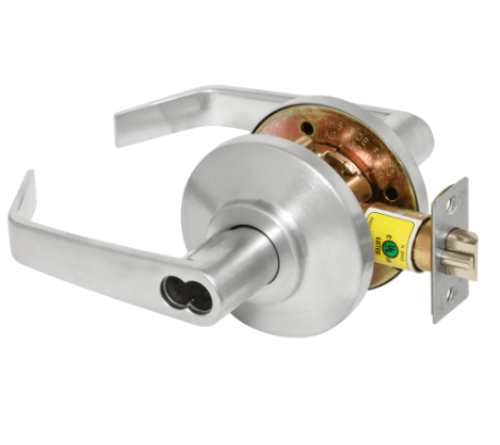

BEST 7KC37AB Grade 2 Entrance Lever Lock

BEST 7KC37AB Grade 2 Entrance Lever Lock

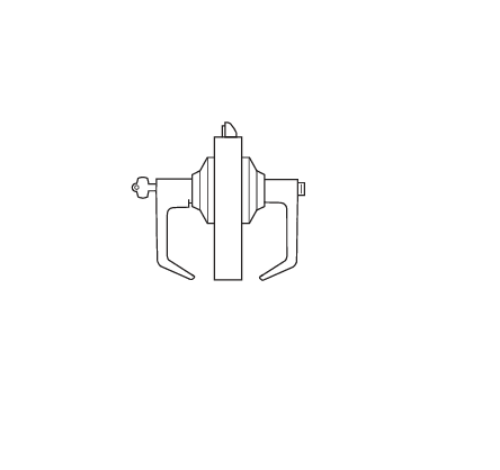

Function: ANSI # F109 Entrance Lock

Latch operated by: Rotating the inside lever - Rotating the outside lever– only when the inside push button is out - Turning the key in the outside lever.

Outside Lever Locked by: Pushing the inside button - Pushing and turning the inside button. Turning the button keeps the outside lever locked until the button is turned back

Outside Lever Unlocked by: Turning the key in the outside lever, (only when the button is not turned) - Rotating the inside lever, (only when the button is not turned) - Closing the door (only when the button is not turned.

Inside Lever Locked by: Cannot be locked

Inside Lever Unlocked by: Always Unlocked

Backset: 2 3/4" standard. 2-3/8", 3 3/4" and 5" available.

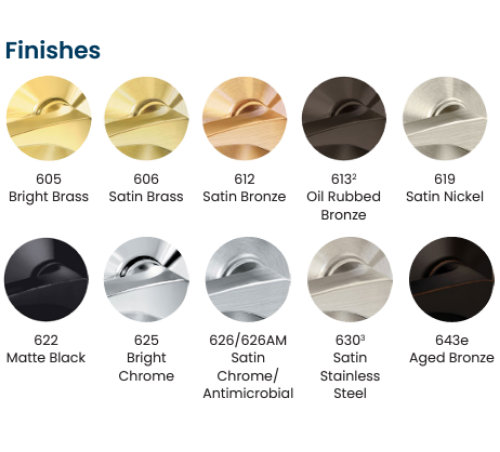

Finishes: 606 satin brass, 612 satin bronze, 613 oxidized satin bronze, oil rubbed, 626 satin chromium plated

Interchangeable core: Solid brass, pin-tumbler type in lever with 7-pin core.

Latch: 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.

Lever: 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.

Material: Component parts include brass, bronze or zinc. Internal parts are zinc dichromate steel.

Mounting: 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.

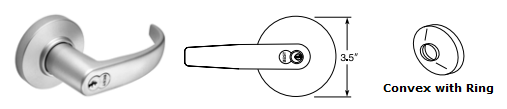

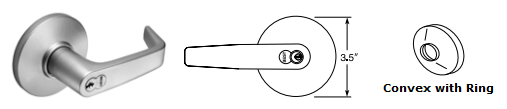

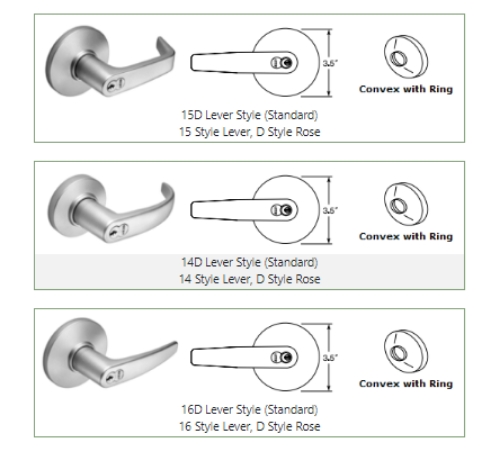

Rose: D3 1/2" diameter mounting screws concealed.

Strike: S34 7/8" x 1 1/4" with curved lip & box.(ANSI A115.2 for 1 3/4" doors).

Door thickness: 1 3/8" to 2" .

Cylindrical chassis to fit common door preparation.

Through-bolt mounting studs increase torque resistance.

No exposed keeper hole on keyed levers for increased security.

Hub torque spring provides extra resistance to lever sag.

Snap-on inside rose (no exposed mounting screws).

Internal steel mechanisms are corrosion treated for normal atmospheric conditions.

Lockset reversible for either hand of door without removing keyed lever.

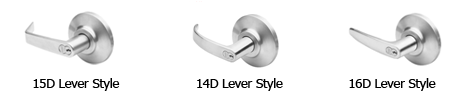

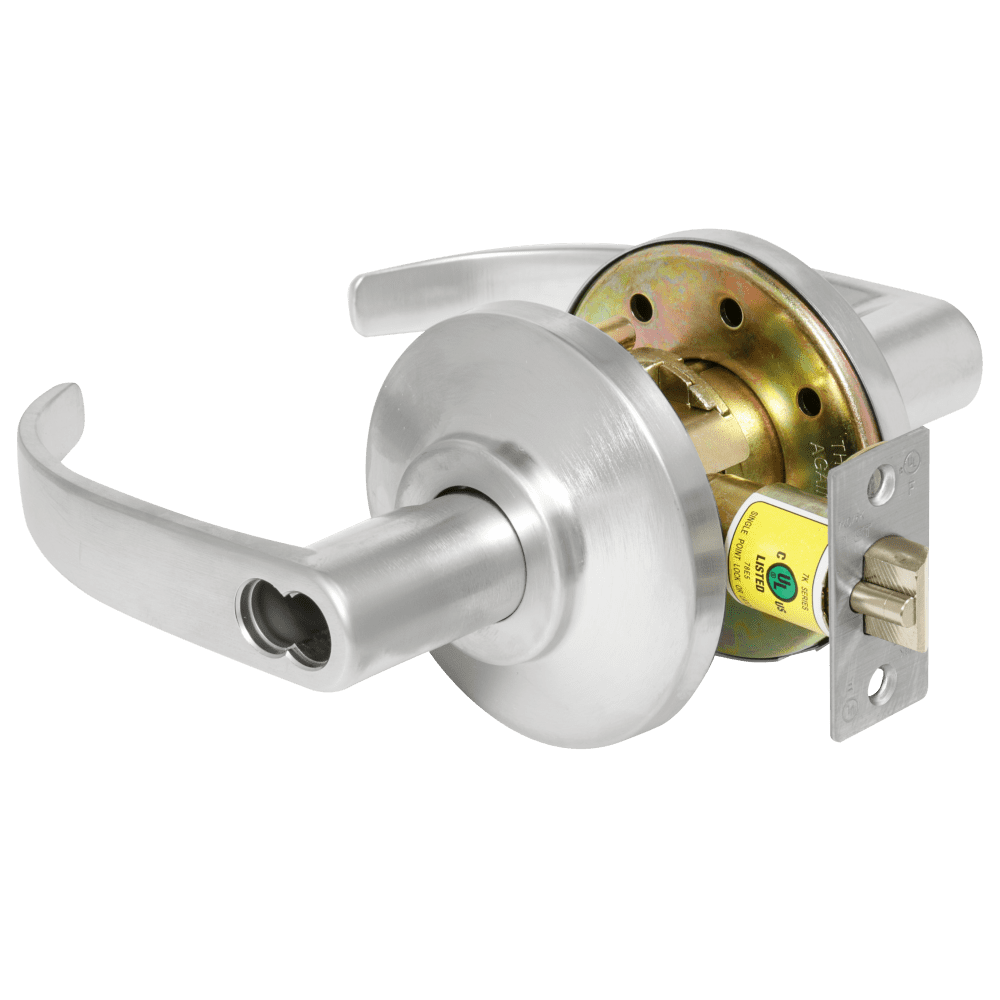

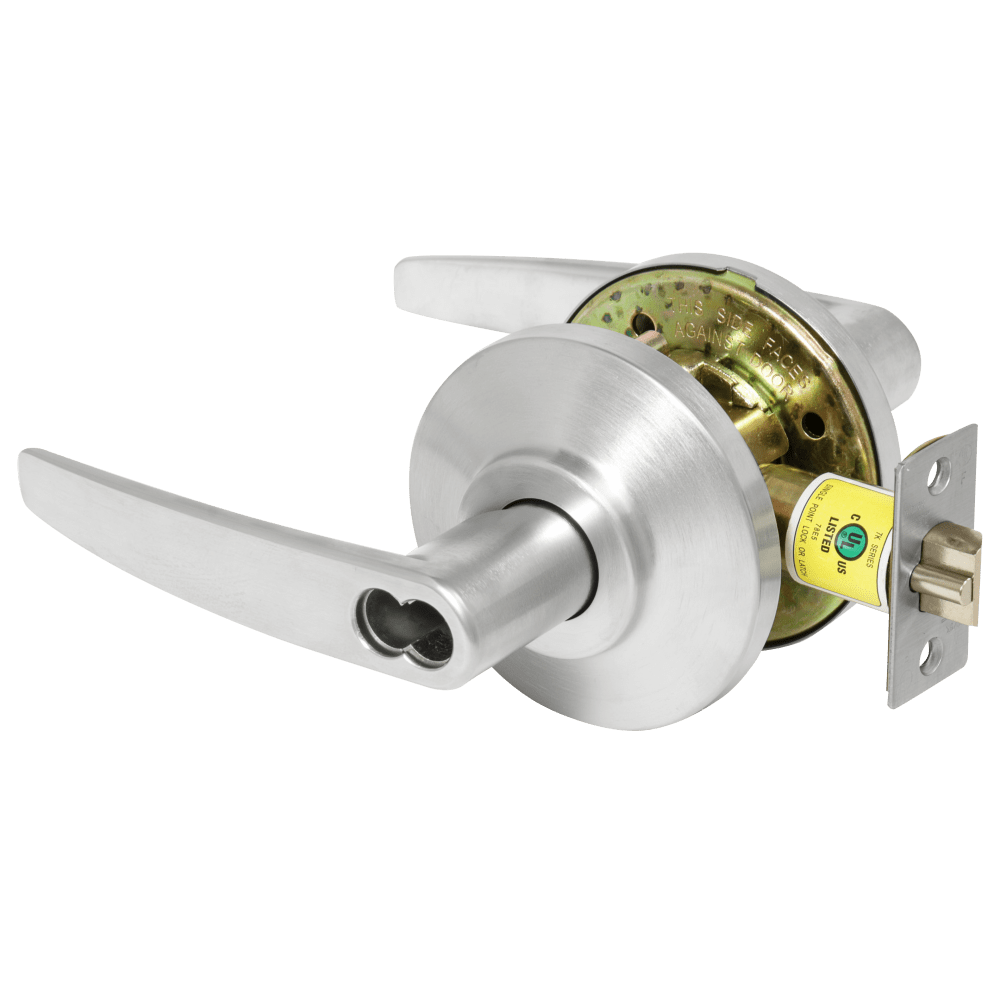

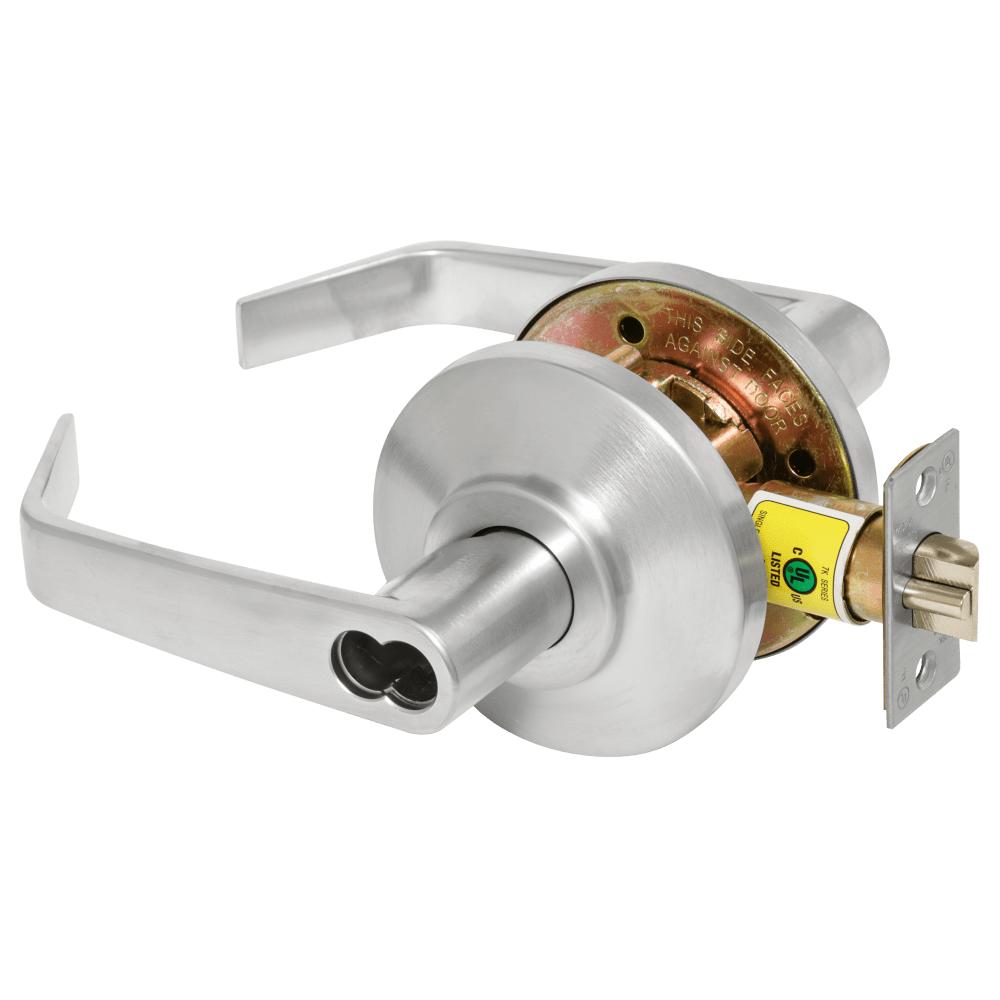

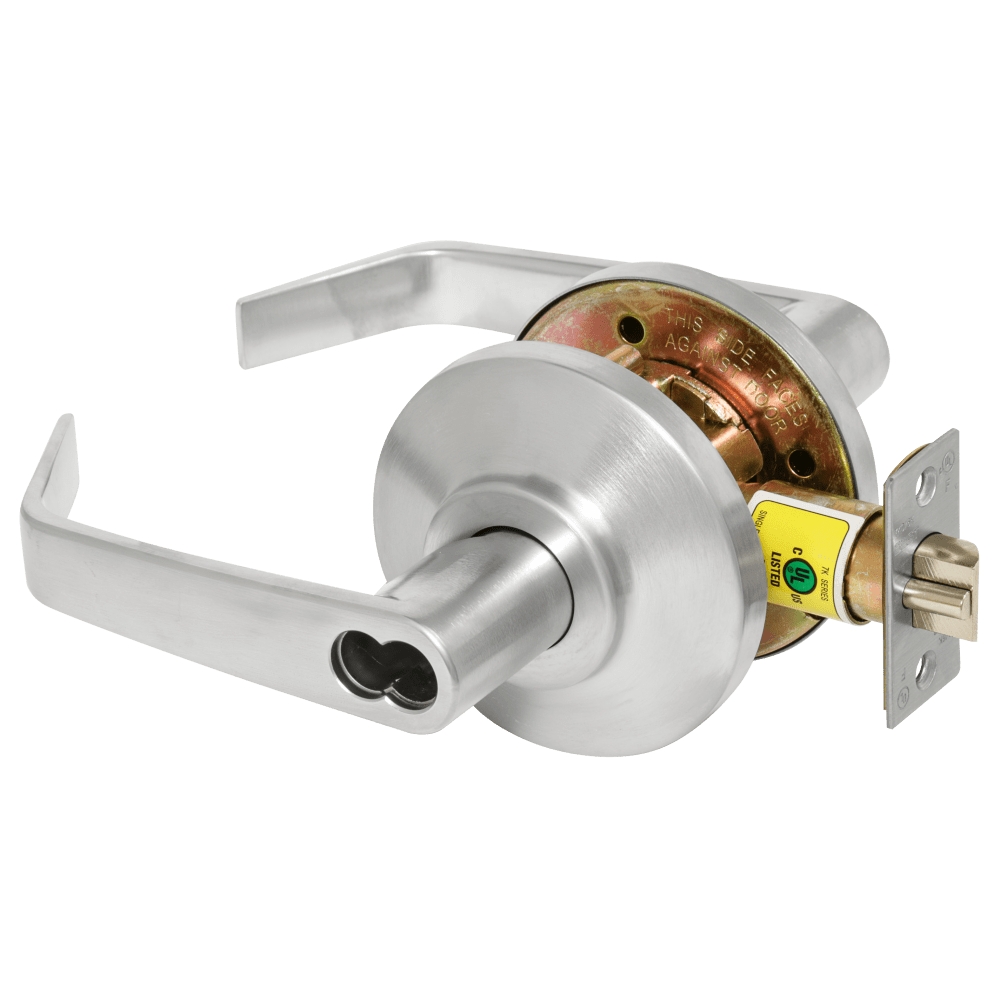

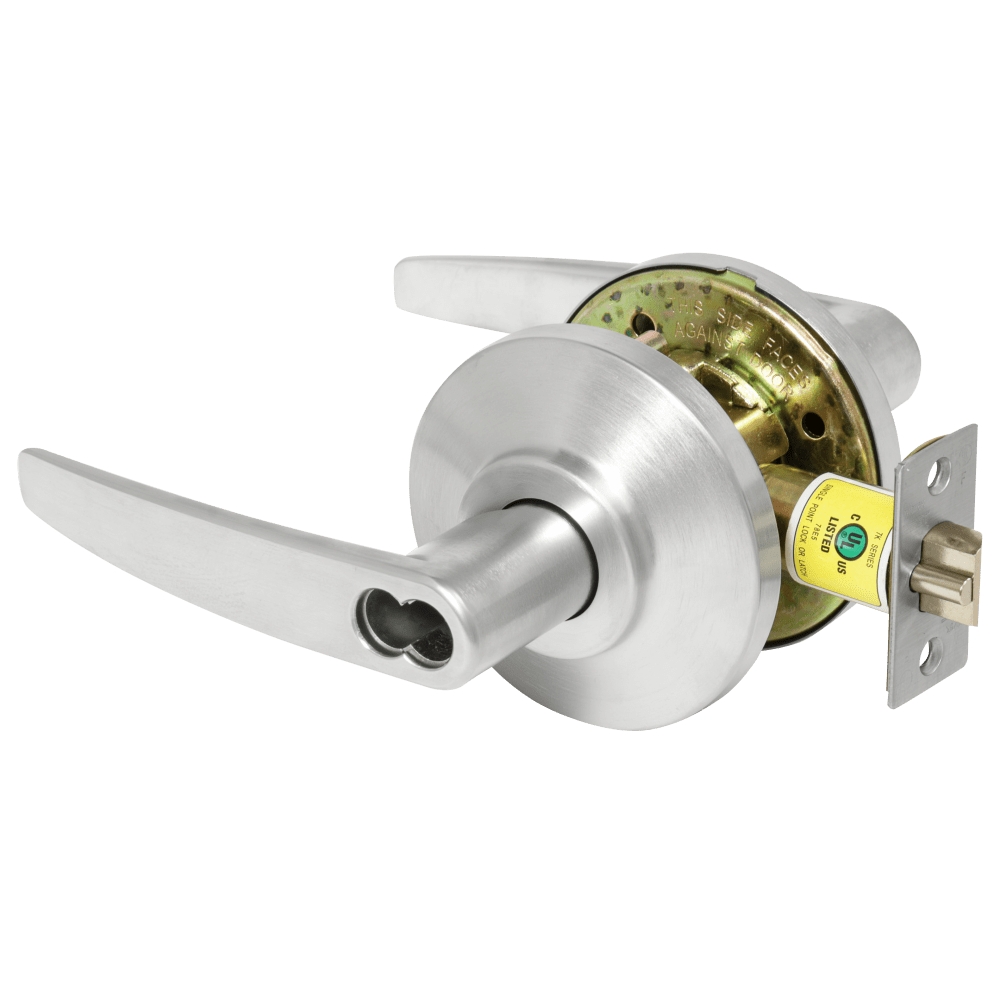

Model: Best Stanley7KC37AB14DS 7KC37AB14DS3605, 7KC37AB14DS3612, 7KC37AB14DS3613, 7KC37AB14DS3626, 7KC37AB15DS3605, 7KC37AB15DS3612, 7KC37AB15DS3613, 7KC37AB15DS3626, 7KC37AB16DS3605, 7KC37AB16DS3612, 7KC37AB16DS3613, 7KC37AB16DS3626,

7KC-37AB14DS3 7KC-37AB14DS3-612, 7KC-37AB14DS3-613, 7KC-37AB14DS3-626, 7KC-37AB15DS3-605, 7KC-37AB15DS3-612, 7KC-37AB15DS3-613, 7KC-37AB15DS3-626, 7KC-37AB16DS3-605, 7KC-37AB16DS3-612, 7KC-37AB16DS3-613, 7KC37AB16DS3626, 7KC37AB14D

ADA Americans With Disabilities Act: 7KC series The design and operation of the BEST cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).

Underwriters Laboratories: 7KC series Listed by Underwriters Laboratories for use on 3 Hr, A label for single (4' x 8') doors.

Builders Hardware Manufacturers Association: 7KC series Listed by BHMA for A156.2, Series 4000, Grade 2.

ADA Americans With Disabilities Act: 7KC series The design and operation of the BEST cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).

California State Fire Marshal: 7KC - series 14 & 15 lever conforms with California Title 24.
