Product Details

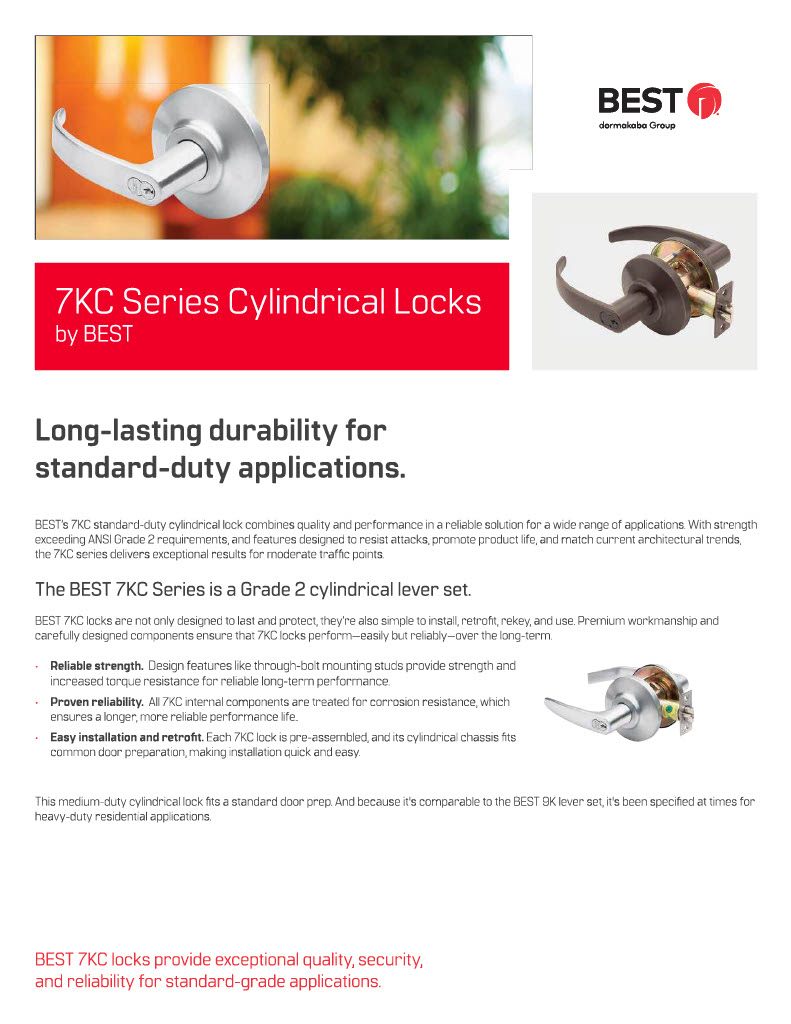

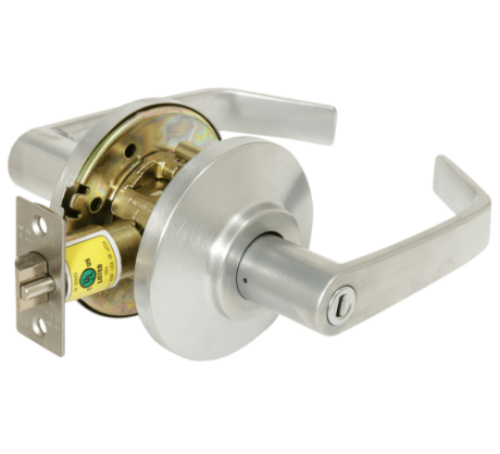

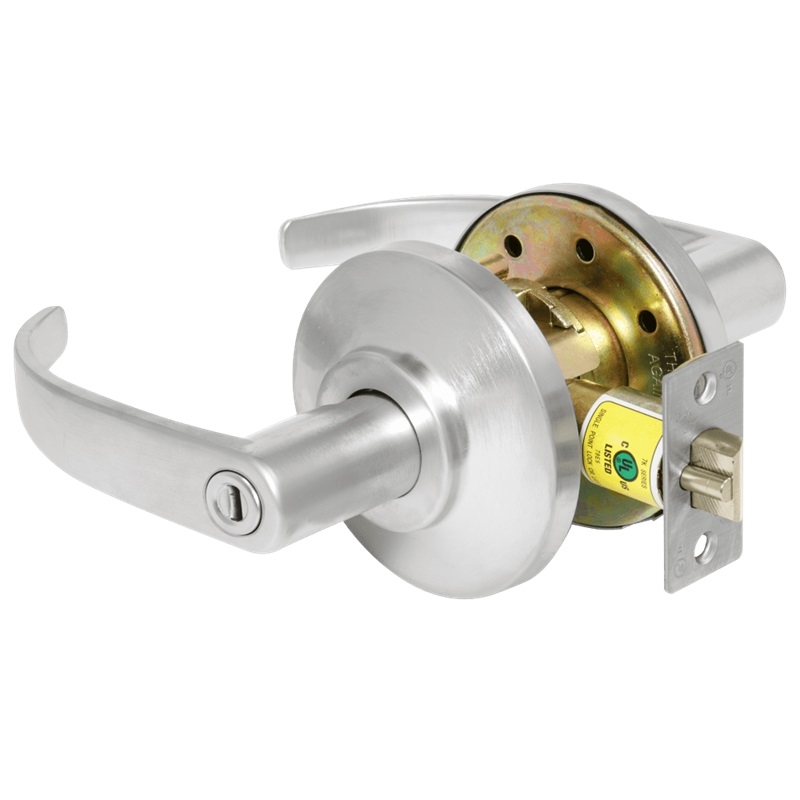

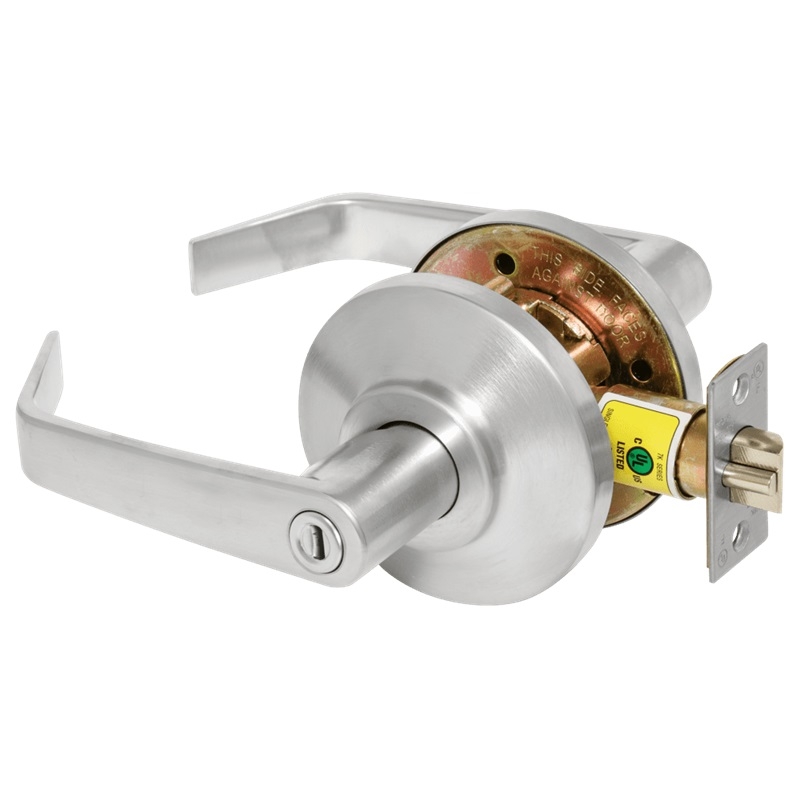

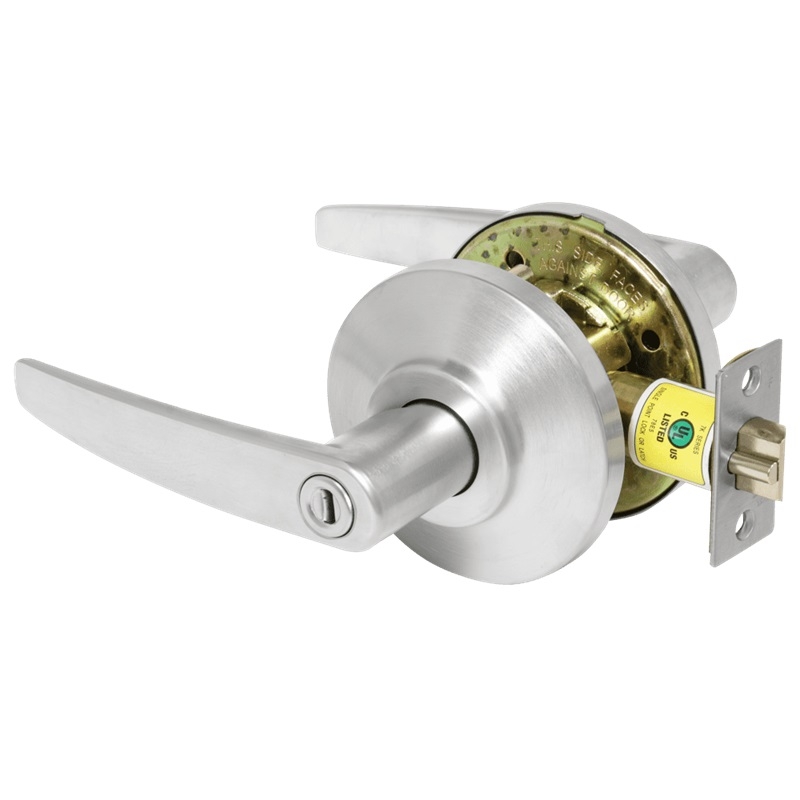

BEST 7KC30L Grade 2 Privacy Lever Lock

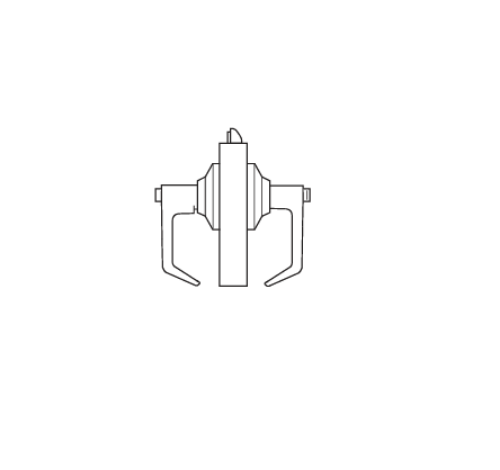

Function: ANSI # F76 Privacy Lock
Latch operated by: Rotating inside lever, Rotating outside leveronly when inside push button is out
Outside Lever Locked by: Pushing inside button
Outside Lever Unlocked by: Rotating the outside slotted button, Rotating the inside lever, Closing the door
Inside Lever Locked by: Cannot be locked
Inside Lever Unlocked by: Always Unlocked
Backset: 2 3/4" standard. 2-3/8", 3 3/4" and 5" available.
Finishes: 606 satin brass, 612 satin bronze, 613 oxidized satin bronze, oil rubbed, 626 satin chromium plated
Latch: 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1x 5/32" for 2 3/8" backset.

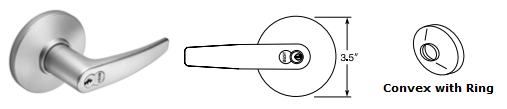

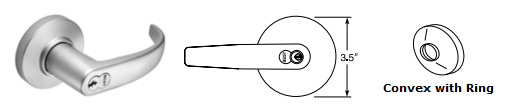

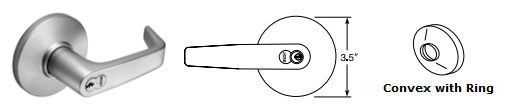

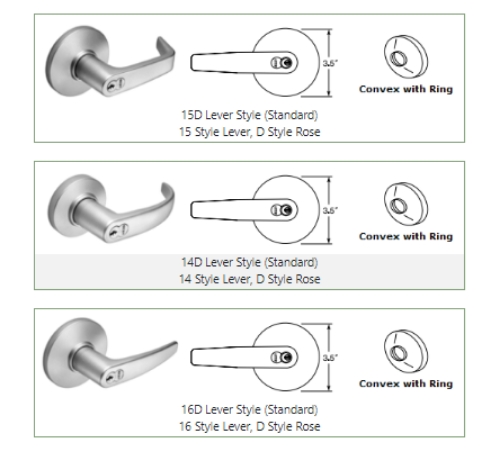

Lever: 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
Material: Component parts include brass, bronze or zinc. Internal parts are zinc dichromate steel.
Mounting: 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
Rose: D3 1/2" diameter mounting screws concealed.
Strike: S3 4 7/8" x 1 1/4" with curved lip & box.(ANSI A115.2 for 1 3/4" doors).
Door thickness: 1 3/8" to 2".
Cylindrical chassis to fit common door preparation.
Through-bolt mounting studs increase torque resistance.
No exposed keeper hole on keyed levers for increased security.
Hub torque spring provides extra resistance to lever sag.
Snap-on inside rose (no exposed mounting screws).
Internal steel mechanisms are corrosion treated for normal atmospheric conditions.
Lockset reversible for either hand of door without removing keyed lever.
Model: Best7KC30L14DS3605, 7KC30L14DS3612, 7KC30L14DS3613, 7KC30L14DS3626,7KC30L15DS3605, 7KC30L15DS3612, 7KC30L15DS3613, 7KC30L15DS3626, 7KC30L16DS3605, 7KC30L16DS3612, 7KC30L16DS3613, C30L16DS3626,7KC-30L14DS3-605, 7KC-30L14DS3-612, 7KC-30L14DS3-613, 7KC3-0L14DS3-626,7KC3-0L15DS3-605, 7KC-30L15DS3-612, 7KC-30L15DS3-613, 7KC-30L15DS3-626,, 7KC30L16DS3605, 7KC-30L16DS3-612, 7KC3-0L16DS3-613, 7KC-30L16DS3-626
