About this item

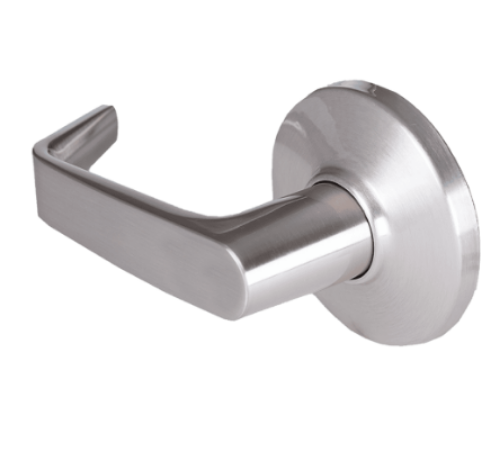

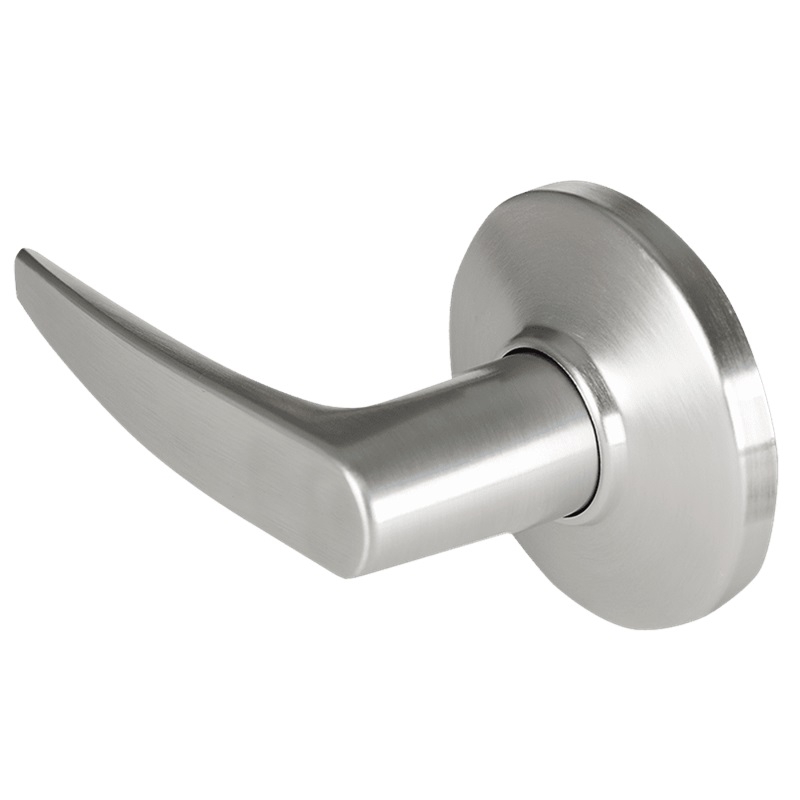

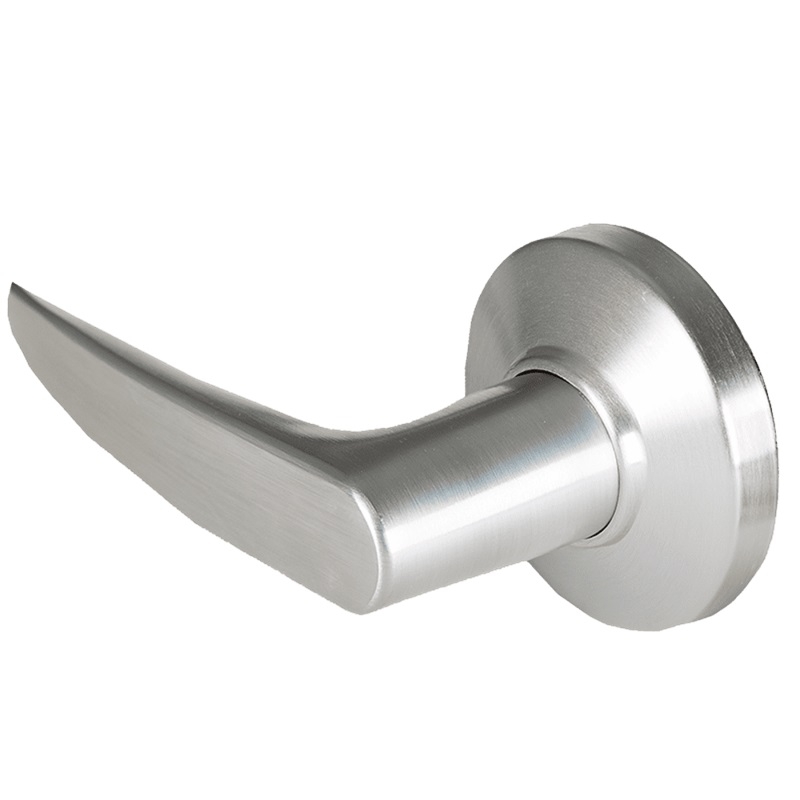

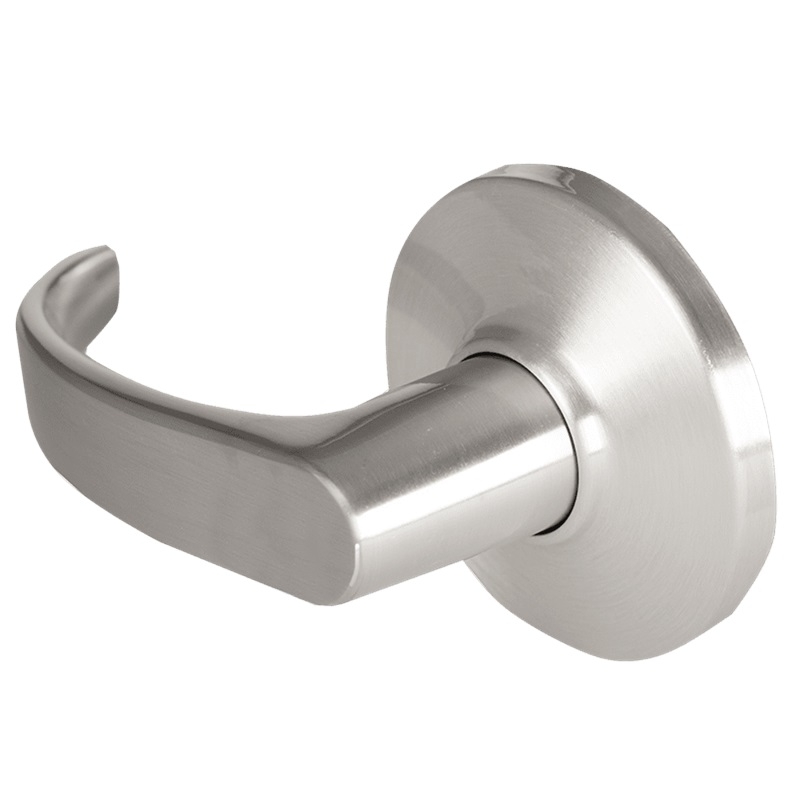

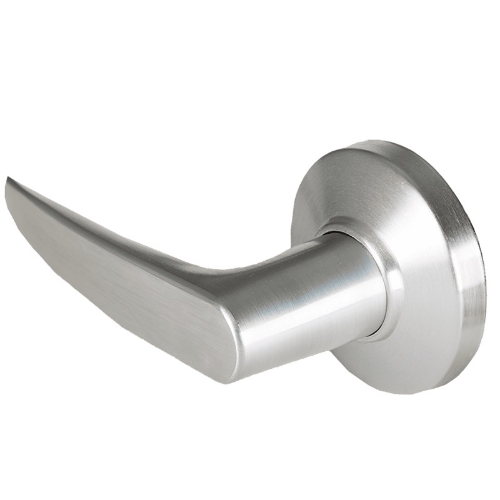

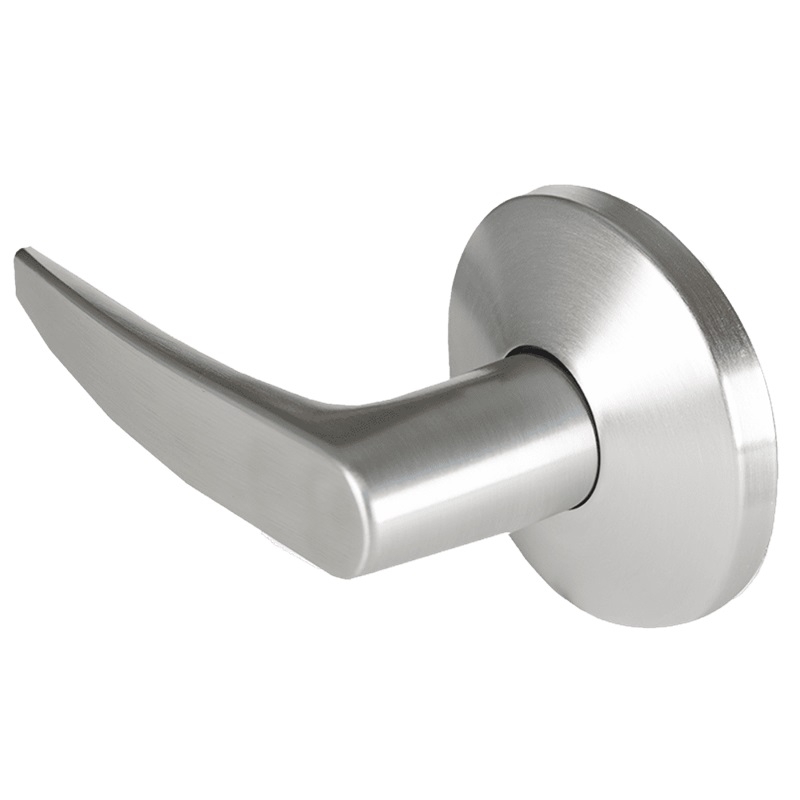

The BEST 9K01DT is a Grade 1 single dummy trim from the BEST 9K Series. It is a through-bolt mounted pair of matching lever handles for an inactive door leaf or non-latching door. The levers do not turn and do not operate any latching mechanism; they are decorative and structural only, providing a matching aesthetic on doors that need lever appearance without locking function. Conforms to ANSI A115.2. Construction uses high-quality zinc alloy lever with brass or bronze trim components and a seamless one-piece hardened steel alloy outside lever sleeve. Twelve configurations are available across three ADA-compliant lever styles (14, 15, 16) and four rose options (3" convex, 3-1/2" convex, 3" convex without ring, 3-1/2" convex without ring), in Satin Chrome (626), Oil Rubbed Bronze (613), Satin Nickel (619), or Matte Black (622). SKU 9K01DT. In stock.

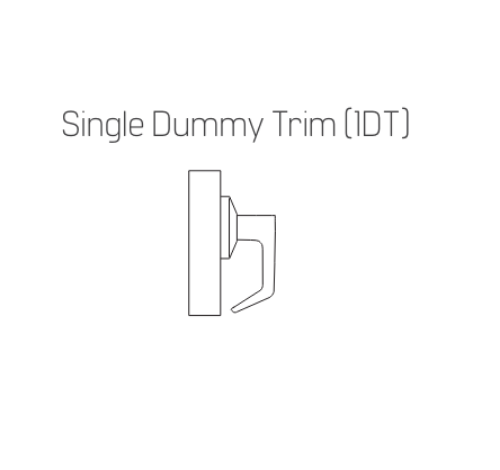

What Is a Single Dummy Trim
A single dummy trim is a non-functional pair of matching levers installed on doors that do not need to latch. The dummy lever does not retract a latchbolt and has no chassis or spindle through-mechanism. "Single" means one matching pair (one inside, one outside) through-bolted together. Common applications include the inactive leaf of a double-door pair (the leaf that does not actively swing on a daily basis but matches the active leaf in the door schedule), closet and pantry doors that pull open by hand, decorative or false doors in commercial entries, and any opening where lever-and-rose aesthetic continuity is required without locking function.
Specifications

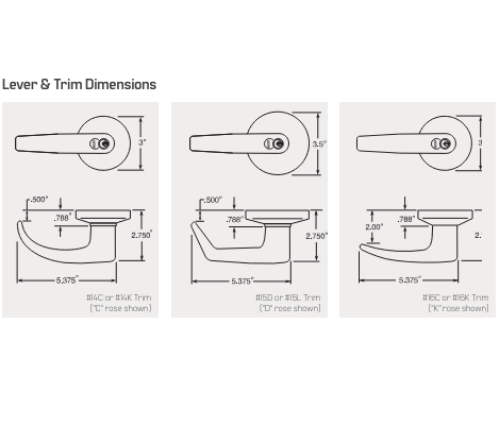

Function: single dummy trim, non-latching, through-bolt mounted pair of matching levers (inside and outside). Compliance: ANSI A115.2. Lever body: approximately 5/8" diameter. Handle length: approximately 4-3/4" from chassis center-line. Projection on door: approximately 2-3/4" when installed on 1-3/4" door. Construction: zinc alloy lever with brass or bronze trim, hub-mounted torsion spring, strong retractor springs, through-bolt mounting studs, heavy rose liner, zinc hubs with shrouded locking lug. Outside lever sleeve: seamless one-piece hardened steel alloy for additional reinforcement. Handing: non-handed (universal). ADA: lever styles 14 and 15 conform to California Administrative Code Title 19 and Title 24; all three styles (14, 15, 16) conform to the Illinois Accessibility Standard.

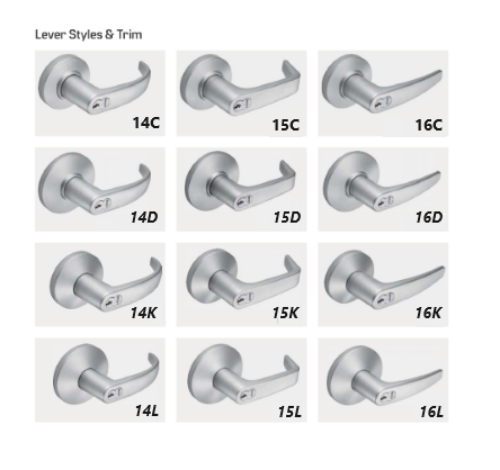

Lever Styles, Rose Options, and Finishes

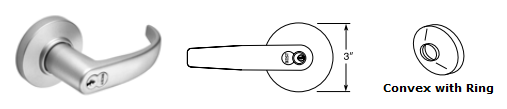

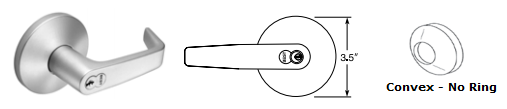

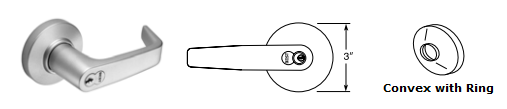

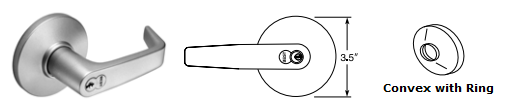

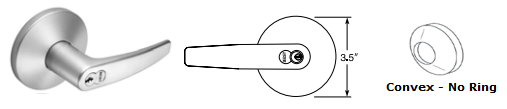

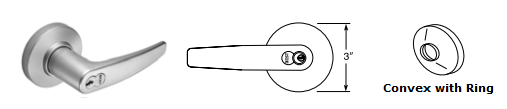

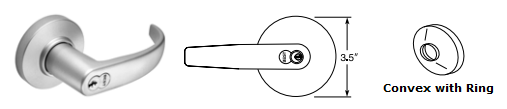

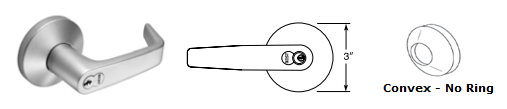

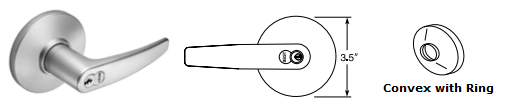

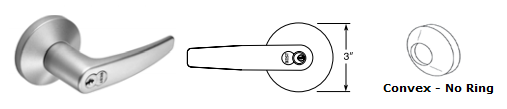

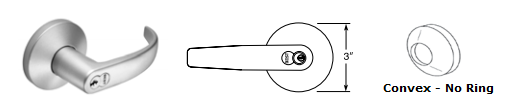

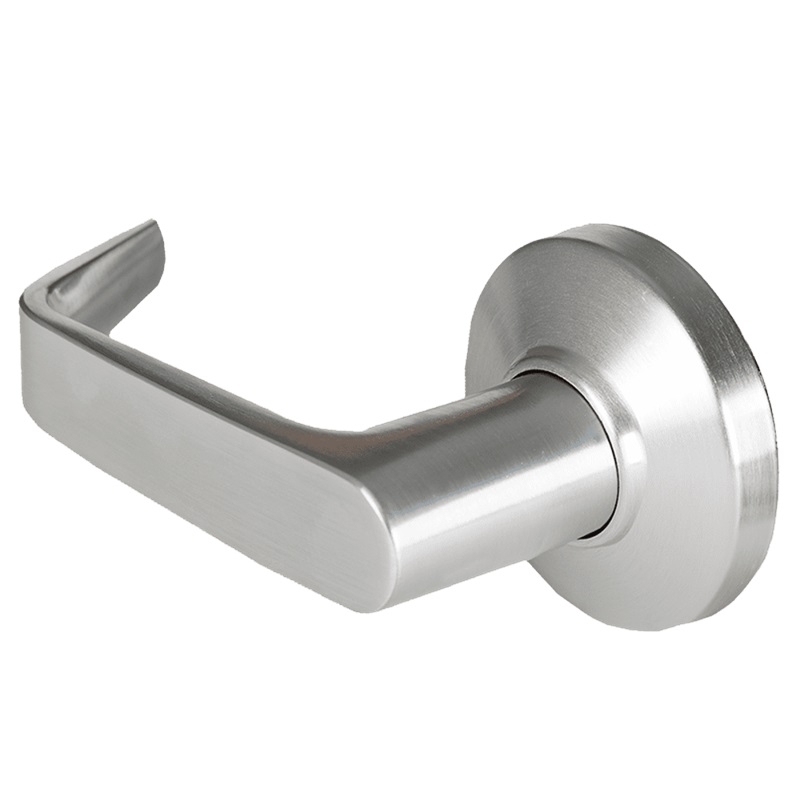

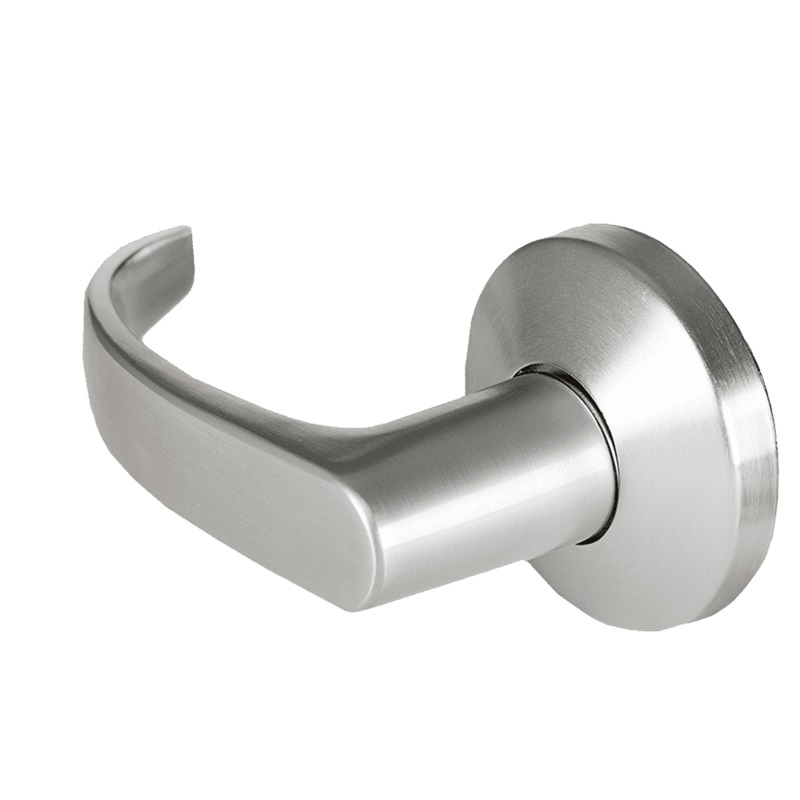

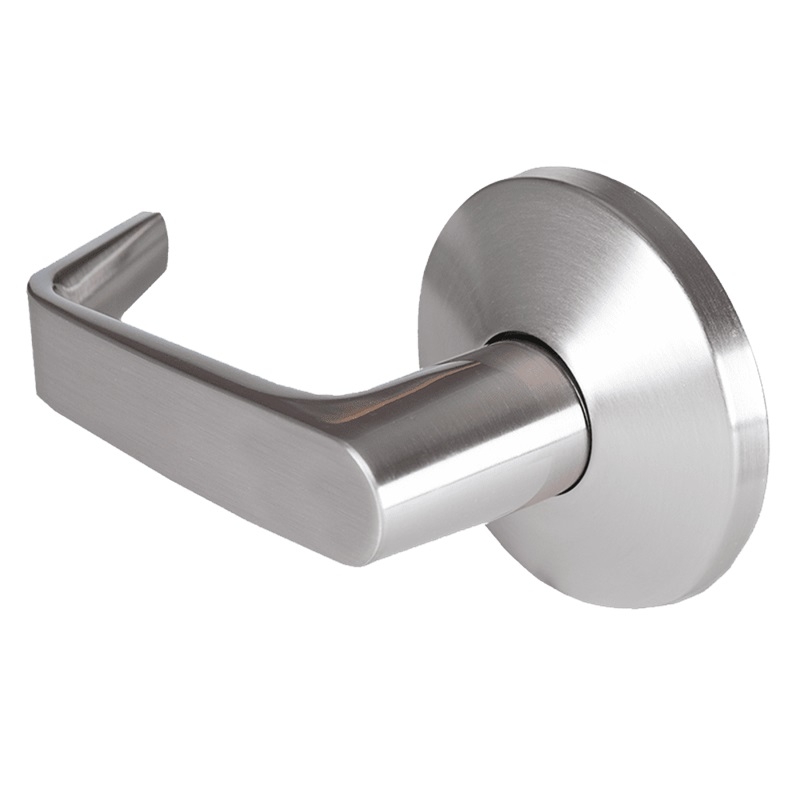

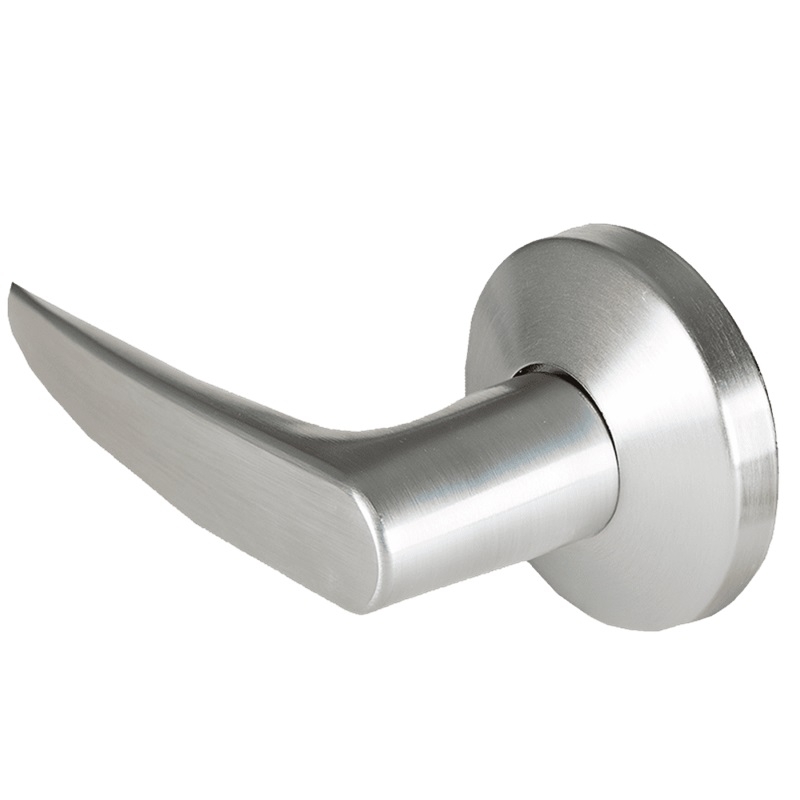

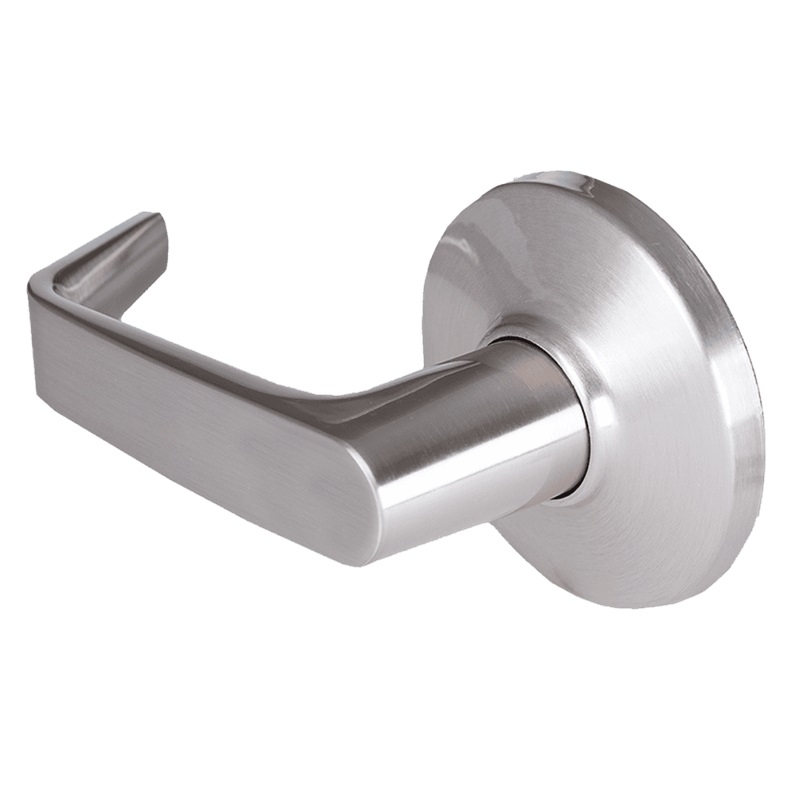

Lever styles: 14, 15, 16. Rose styles: C (3" convex), D (3-1/2" convex), K (3" convex without ring), L (3-1/2" convex without ring). Finishes: 626 Satin Chrome, 613 Oil Rubbed Bronze, 619 Satin Nickel, 622 Matte Black. The 12 model variants combine each lever with each rose: 15D, 14D, 16D, 15C, 14C, 16C, 15K, 14K, 16K, 15L, 14L, 16L. Specify lever style, rose, and finish at order.
How to Install and Remove the BEST 9K01DT Dummy Trim
Installation uses standard ANSI A115.2 cylindrical door prep. The 9K01DT mounts via through-bolt studs that pass through the door and thread into the outside lever sub-assembly. To install, position the outside lever and rose against the door face, pass the through-bolts through the prepared door holes, align the inside rose, and tighten the through-bolt screws to spec. To remove the dummy trim, loosen the through-bolt screws on the inside rose first, lift the inside rose and lever off the bolt studs, then pull the outside lever and rose off the opposite side of the door. Because the 9K01DT has no chassis or spindle through-mechanism, no internal disassembly is required. Full installation and removal drawings are in the BEST 9K Cylindrical Installation Instructions PDF.
When to Specify
Specify the 9K01DT to match active 9K Series lever locks across a multi-leaf door schedule, on non-latching closet or pantry doors that need lever appearance, or on inactive double-door leaves that need aesthetic continuity with the active leaf. For Grade 2 budgets, the BEST 7KC01DT Grade 2 Single Dummy Cylindrical Lock is the equivalent product in the 7KC series.
Where This Sits in the BEST Catalog

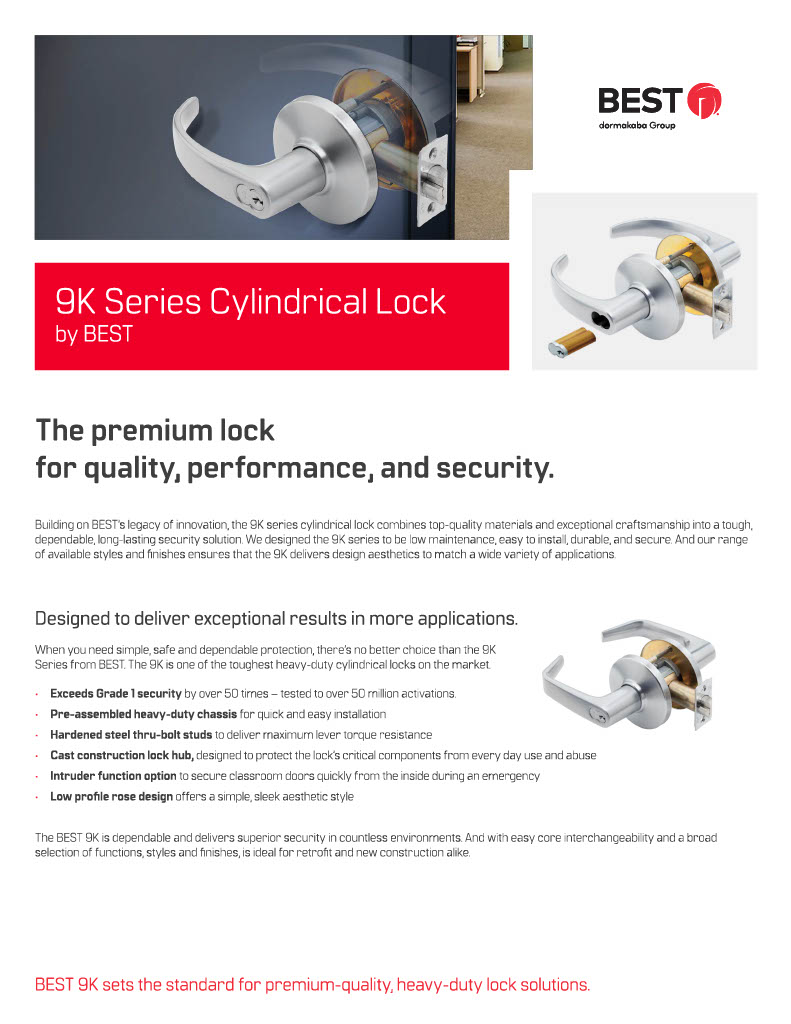

The 9K01DT is a non-functional dummy trim within the BEST 9K Series Grade 1 heavy-duty cylindrical lockset family, listed under BEST Lever Locks in the Cylindrical Lever Locks section of Commercial Locks.
