Cal-Royal 5000EO / F5000EO Rim Push Bar Exit Panic

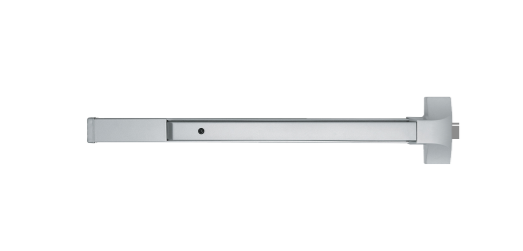

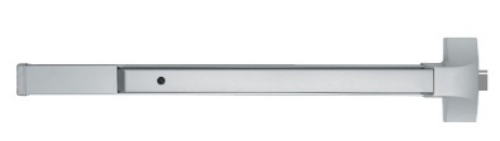

Cal-Royal 5000EO / F5000EO Rim Push Bar Exit Panic Device

For Doors: 1 3/4" thick standard 3 3/4" minimum stile width required for single or double door application using standard 938 strike and pull or lever trims

Chassis: Steel (Panic Grade), steel (Fire Grade)

Cover: Covers stock hollow metal doors with 161-cutout

Mounting: Furnished standard with wood and machine screws. Available with thru-bolts on request. Thru-bolts are standard packaging on fire rated devices

End Cap: Steel construction

Hand: Non-handed, center hub

Latch Bolt: Stainless steel 3/4" throw

Spring: Steel throughout

ANSI Standard: A156.3, Grade 2

Rail Assembly: Heavy gauge steel, painted

Strike: 938 packed standard (See strike page)

Dogging Feature: Allen-type key furnished standard on non-fire labeled devices

Mullion: Available

UL and ULC Listed: 5000 Series for panic. F5000 Series for fire exit hardware for all types of 3' x 7' single doors and 6' x 7' double doors for up to 3 hour fire labeled installations. Conforms to standards UL10C and UBC 7-2-1997 codes

5500EO 36" - Actual Lenght: 32"  - for Door Size: 30to 36door width

5500EO 48"  - Actual Lenght: 39"  - for Door Size: 36to 48door width

Model: Cal Royal, Cal-Royal, 5000EO36, 5000EO48, F5000EO36, F5000EO48. ALUM, Aluminum, US32D, Satin Stainless Steel
