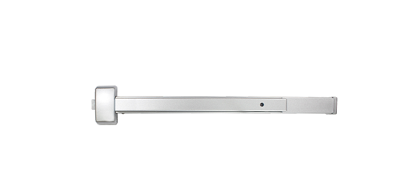

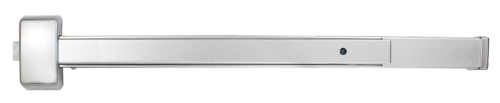

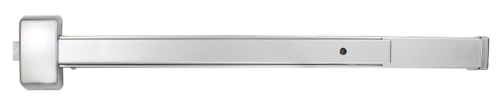

Cal-Royal A2200EO / AF2200EO Rim Push Bar Exit Panic Device

Cal-Royal A2200EO / AF2200EO Rim Push Bar Exit Panic DeviceRetrofits Sargent 12-2828 & 12-2838 Series

Door Thickness: 1-3/4" thick.

Stile: 4-1/2" minimum stile width required for single or double door application using standard 239 strike and pull or lever trims.

Chassis - Nonferrous alloy (Panic Grade), steel (Fire Grade)

Cover - Nonferrous alloy. Covers stock hollow metal doors with 161 cutout.

Mounting - Furnished standard with wood and machine screws. Available with thru bolts on request. Thru bolts are included and standard packaging on fire rated devices.

End Cap - Steel construction.

Hand - Non handed, center hub.

Latch Bolt - Stainless steel 3/4" throw.

Spring - Stainless steel throughout.

ANSI Standard - A156.3, Grade 1.

Rail Assembly - Heavy gauge steel, painted.

Strike - 239 packed standard

Dogging Feature - Allen-type key furnished standard on non-fire labeled devices. Cylinder dogging available.

UL and ULC Listed - 2200 Series for panic. F2200 Series for fire exit hardware for all types of 4' x 8' single doors and 8' x 8' double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.

Dimensions:

Touchbar height to finished floor: 41" (1041mm) at center

Touchbar projection: Neutral 2- 1/2" (64mm), Depressed 1-3/4" (45mm)

A2200EO36 and AF2200EO36Actual Length: 32" -Max Cut Down:6" Door size:30" to 36" door width

A2220EO48 and AF2220EO48 Actual Length:44" -Max Cut Down:12" Door size:36" to 48" door width

A2220EO24 and AF2220EO24 Actual Length:20" -Max Cut Down:2" Door size:22" to 24" door width

A2220EO32 and AF2220EO32 Actual Length:28" -Max Cut Down:6" Door size:26" to 32" door width

Model: Cal Royal, Cal-Royal, A2200EO36, AF2200EO36,A2220EO48, AF2220EO48, A2220EO24,  AF2220EO24, A2220EO32, AF2220EO32,**AL, DURO, GO, Aluminum, Duranodic, Gold
