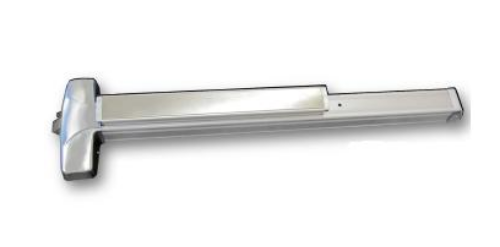

Cal-Royal A7700EO / AF7700EO Rim Push Bar Exit Panic Device

A7700 & AF7700 Rim Type Panic And Fire Exit Device

Fits same hole pattern as Von Duprin 99 & 98

Features & Construction:For use in institutions, schools, universities, commercial buildings where heavy duty reliable operation is a requirement.

ANSI A156.3, Grade 1 heavy duty exit device

Rail assemblies are heavy duty extruded aluminum body with stainless steel push pad and end caps are made of brass, bronze or stainless steel. Rail travels in direction of the door swing.

Trims are thru bolted for additional security.

Conforms & Meets ADA Regulations.

UL Listed for Panic and ULC10C, UBC 7-2-1777 codes. UL Listed for Fire Exit Hardware. 3 hours. (A) label rating on pairs of doors up to 8'0" x 8'0" swinging in same or opposite directions.

Uncompromising security and safety in single and double fire exit doors.

Chassis mounted unit construction.

Non-handed and easily reversible.

Available in many different functions. Lever and escutcheon trims are grade 1 construction with clutch free-wheeling mechanism. Rose and escutcheon covers 161 cut out. (See Below)

For Doors:1-3/4" thick standard optional 2-1/4" thick. 4-1/2" minimum stile width for single or double door application using standard 938 strike and pull lever, thumbpiece and escutcheon trims.

Chassis:Non-ferrous alloy (Panic Grade), steel (Fire Grade). Cover: Brass, bronze or stainless steel. Covers stock hollow metal doors with 161 cut out.

Mounting:Furnished with wood and machine screws. Available thrubolts on request. Thru bolts are included and standard packaging on fire rated devices.

End Cap:Brass, bronze or stainless steel construction.

Latch Bolt:Stainless steel 3/4" throw with anti-pick feature.

Spring:Stainless steel throughout.

Strike:938 packed standard

Dogging Feature:Allen-type key furnished standard on non-fire labeled devices.

For Electrical Latch Retraction:See Specification Tab

For Signal Switch:See Specification Tab

*Dimensions: *Touchbar height to finished floor 41 (1034mm) at center

Touchbar projection:Neutral 3-3/8" (92mm), depressed 2-7/8" (73mm)

Center case:8-1/16" x 2 3/4" x 2 1/2" (205mm x 68mm x 62mm)

Model:A7700EO36 and AF7700EO36 Actual lenght: 32" Max cut down: 6" Door size: 30" to 36" door width

Model:A7700EO48 and AF7700EO48 Actual lenght: 44 Max cut down: 12" Door size: 36 to 48 door width

Model: A7700EO36, A7720EO48, AF7700EO36, AF7720EO48, US32D, US10B, US3

Suggested Architects Specifications All exit devices shall be of touch bar design with smooth operation and be operative over ⅔ of the doors clear opening width.

All exit devices must be listed under Panic Hardware in the Accident Equipment List of Underwriters Laboratories, Inc.

Where labeled doors are used as exits, they must be equipped with labeled Fire Exit Hardware and UL10C, UBC-7-2-1777 codes.

All springs shall be of stainless steel throughout. All exit devices shall be of chassis mounted unit construction.

All exit devices shall be ANSI A1563.3, Grade 1.

(ELR) Electric Latch Retraction:

MUST USE CRP POWER SUPPLIES TO HONOR WARRANTY

Our motor driven electrified latch pullback exit device allows for remote keyless access control in high occupancy / high traffic conditions where exit devices are required. Common applications include conditions such as hospitals, airports, schools, churches and they are commonly specified in applications that require automatic door openers. The device may be continuously energized allowing for a push / pull condition if desired.

Features: Available on 7700 Series, including rim, vertical rod, concealed vertical rod, mortise exit device, fire and non fire-rated devices

MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues

"PTS" (Push to Set Technology): 5 second electronic adjustment for easy post installation adjustment

Electric dogging rated for continuous duty - Auto retraction if dogged push pad is pulled from position

Low Current Draw - Field switchable to "High Torque" mode

Up to 300" wire run with (2) 18ga wire - Long wire runs provides installer with convenience of placing the locking device power supply in a centralized location; i.e. the same closet as the access panel

8' cable with Quick Connect for MM4S module to easily connect to power supply lead

3-year "No Hassle" warranty

Specifications:

Voltage - 22 to 28V DC

System protection - unit shutdown when voltage exceeds 28V DC

Average In-rush Current - 900mA; Average Hold Current - 215mA

PTS adjustment - approx. 1/4"

Wire run: 300' with 18ga wire

Signal Switch RX and LX:

RX(request to exit) signal switch is used to signal the use of an opening from the push side. When the push pad is depressed, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the touch bar.

LX(latch bolt monitoring) signal switch monitors both egress and access of an opening. When the latch bolt is retracted, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the latch bolt position.

LXandRXswitches can be combined.

LX, RXswitches can be used in combination with ELR (electric latch retraction) option.

Specifications:

RXorLXSwitch rated 0.5 amps @ 24V AC / DC resistive

Low currentRXorLX.Switch rated 0.5 amps @ 24V AC / DC resistive
