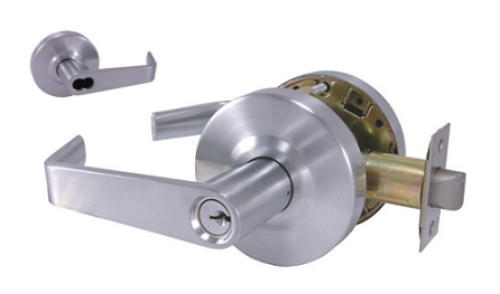

Design Hardware DH-X-86IC-F Storeroom Lever Lockset, Accepts Small Format IC Core (less core)

Design Hardware DH-X-86IC-F Grade 1 Storeroom*Lever Lockset, Accepts Small Format IC Core (less core)Function Description:*

Storeroom - Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked

ANSI No.F86

Backset & Latchface:2 3/4" backset std. with 1 1/8" x 2 1/4" latchface, 2 3/8" backset is available with 1" x 2 1/4" latchface both with self adjusting front for square or beveled edge doors Latchbolt: Stainless Steel with 1/2" projection, Deadlocking on keyed functions & exit latch Door Thickness: Factory Set for 1 3/4 can be adjusted to fit 1 3/8 up to 2 thick

Lever Style:F-Flat Lever

Trim :5" Solid zinc diecast levers, 3 3/8" wrought brass roses Series:  X Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder:Small format IC core (less core)

Handing :Non-Handed-Completely reversible

Model: DH-X-86IC-F-26D, DH-X-86IC-F-10B,

ANSI:Meets ANSI - A156.2, Series 4000, Grade 1 Standards

UL Listings :UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag Door Preparation : ANSI A115.2 - 2 1/8" crossbore with (2) 3/8" Thru bolt holes Standard Lever Design : Flat (standard - stocked in US26D and US10B) Standard Finish : US26D & US10B(in stock in flat lever) Fasteners : Combination screws for wood or metal doors & frames Warranty : Limited Lifetime Warranty
