Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome

Picture of Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome
Picture of Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome
Picture of Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome
Picture of Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome
Picture of Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome
Picture of Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome
naxt
prev

Product Details

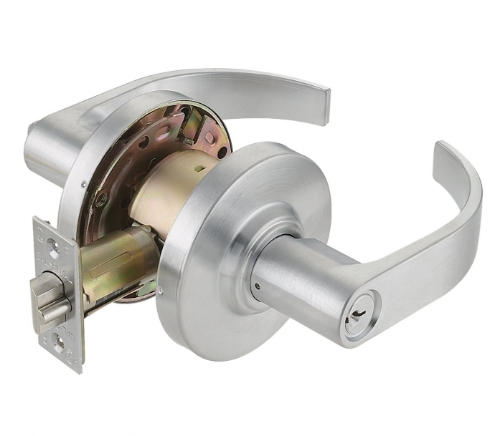

Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock -With Clutch, Satin Chrome

Outside lever fixed. Entrance by key only. Inside lever always unlocked.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Fits all Major Manufacturers Thru Bolt Locations.

Door Range - 1-3/8" to 2" thickness doors.

Backset - 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front - 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike - ASA strike standard, "T" and full lip strike available.

Latchbolt - 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Cylinders & Keyways - 6 pin solid brass "C" keyway standard

Keys: 2 keys per lock.

Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome

SKU: CXPRL05 US26D

In Stock
Picture for manufacturer Cal-Royal
icon Chat

$98.83

Backset *

2-3/4" Backset (Standard)
2-3/4" Backset (Standard)
2-3/8" Backset
2-3/8" Backset

Strike *

ANSI Strike - 4-7/8" (Standard)
ANSI Strike - 4-7/8" (Standard)
T Strike - 2-3/4"
T Strike - 2-3/4"

Keying *

About this item

ANSI Grade 2 Heavy Duty Cylindrical Leverset. Fits all Major Manufacturers Thru Bolt Locations. Applications - For offices, schools, hospitals, apartments, hotel/motel and other public buildings.

Resources

Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock -With Clutch, Satin Chrome

Outside lever fixed. Entrance by key only. Inside lever always unlocked.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Fits all Major Manufacturers Thru Bolt Locations.

Door Range - 1-3/8" to 2" thickness doors.

Backset - 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front - 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike - ASA strike standard, "T" and full lip strike available.

Latchbolt - 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Cylinders & Keyways - 6 pin solid brass "C" keyway standard

Keys: 2 keys per lock.

Picture of Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome
Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome

Product code: CXPRL05 US26D

In Stock

$98.83

$98.83

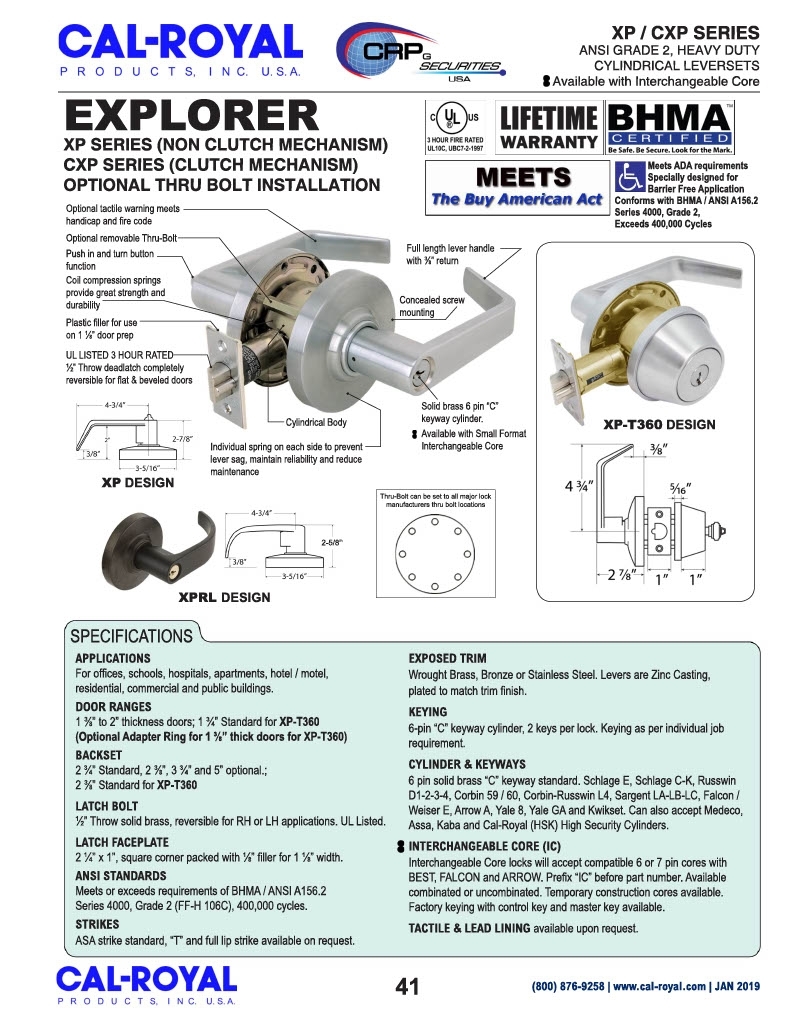

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.

Picture of Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome
Cal-Royal CXPRL05 US26D Grade 2, Storeroom Lock - With Clutch, Satin Chrome

Product code: CXPRL05 US26D

In Stock

$98.83

$98.83
