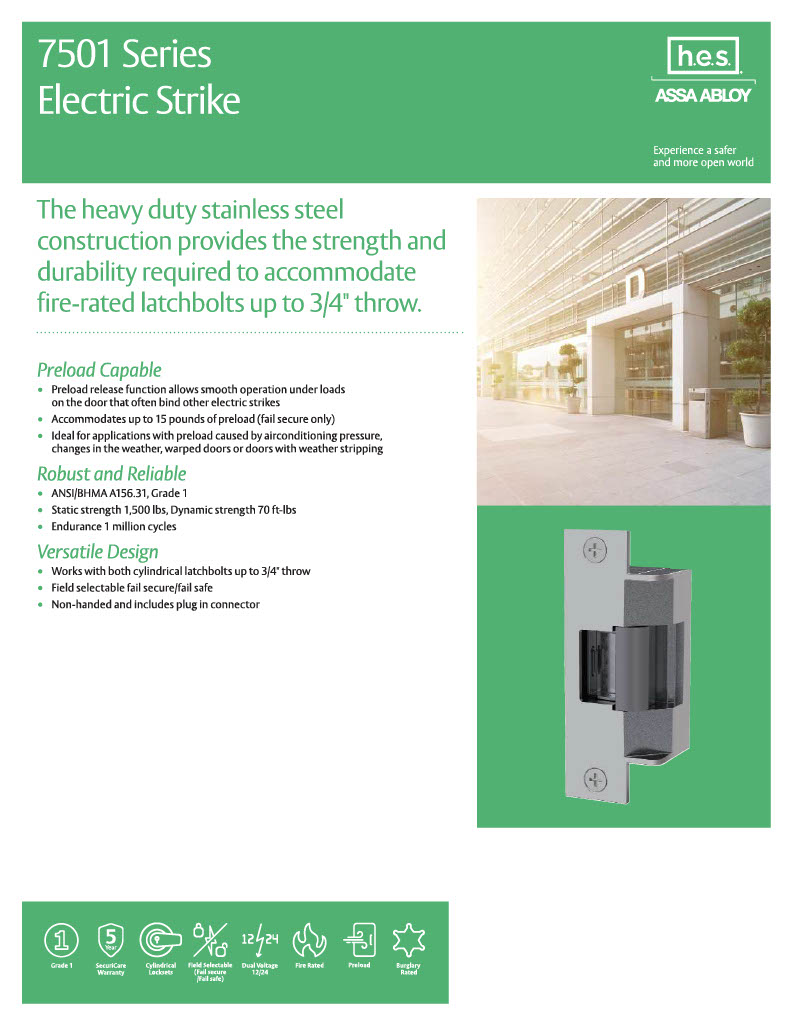

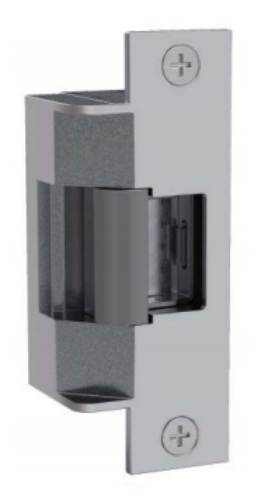

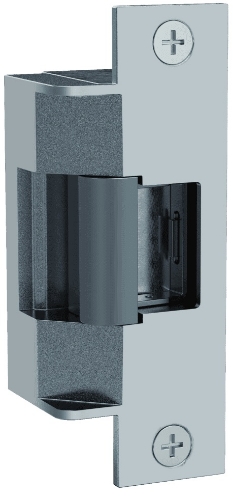

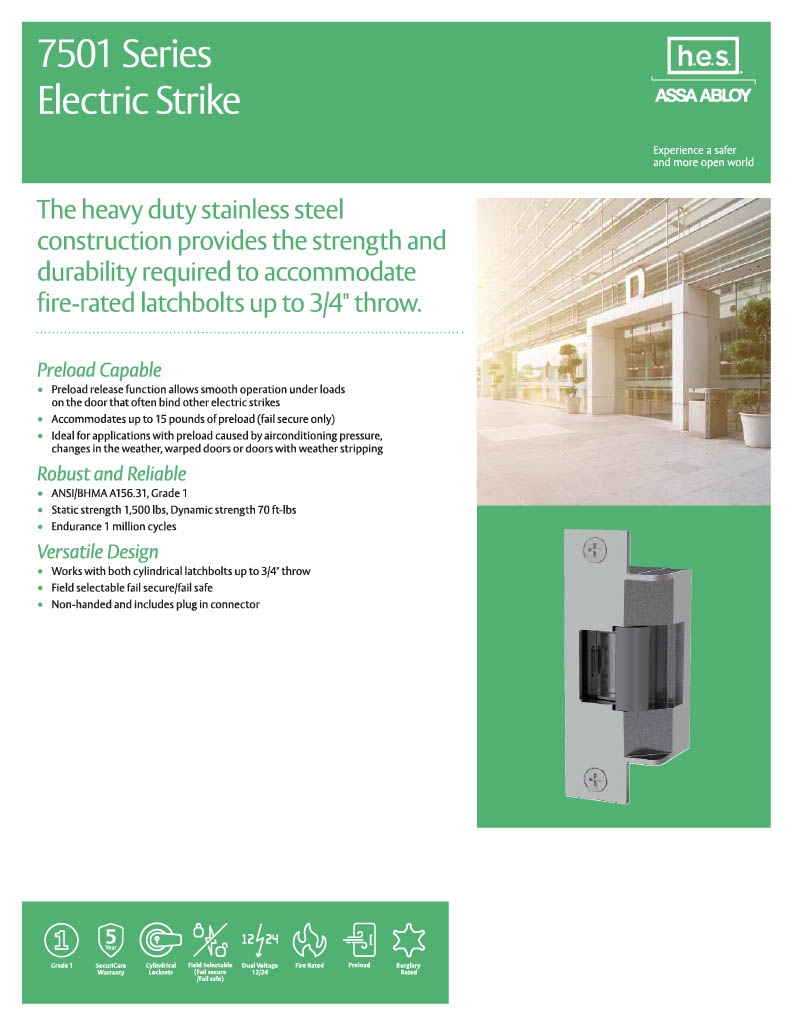

HES 7501 Electric Strike for fire-rated applications with pre-load conditions

HES 7501 Electric Strike for fire-rated applications with pre-load conditions

For use with cylindrical locksets with up to a 3/4" throw.

ANSI/BHMA Numbers: #E09321, #E09322, #E09323

The 7500 series electric strike is ideal for fire-rated applications with pre-load conditions which may be caused by a warped or misaligned door, weather stripping, a smoke seal or any other condition that could cause door bind.

The heavy duty stainless steel construction provides the strength and durability required to accommodate fire rated latchbolts up to 3/4" throw.

Frame application Metal, Wood

Electrical .45 Amps @ 12VDC continuous duty .25 Amps @ 24VDC continuous duty

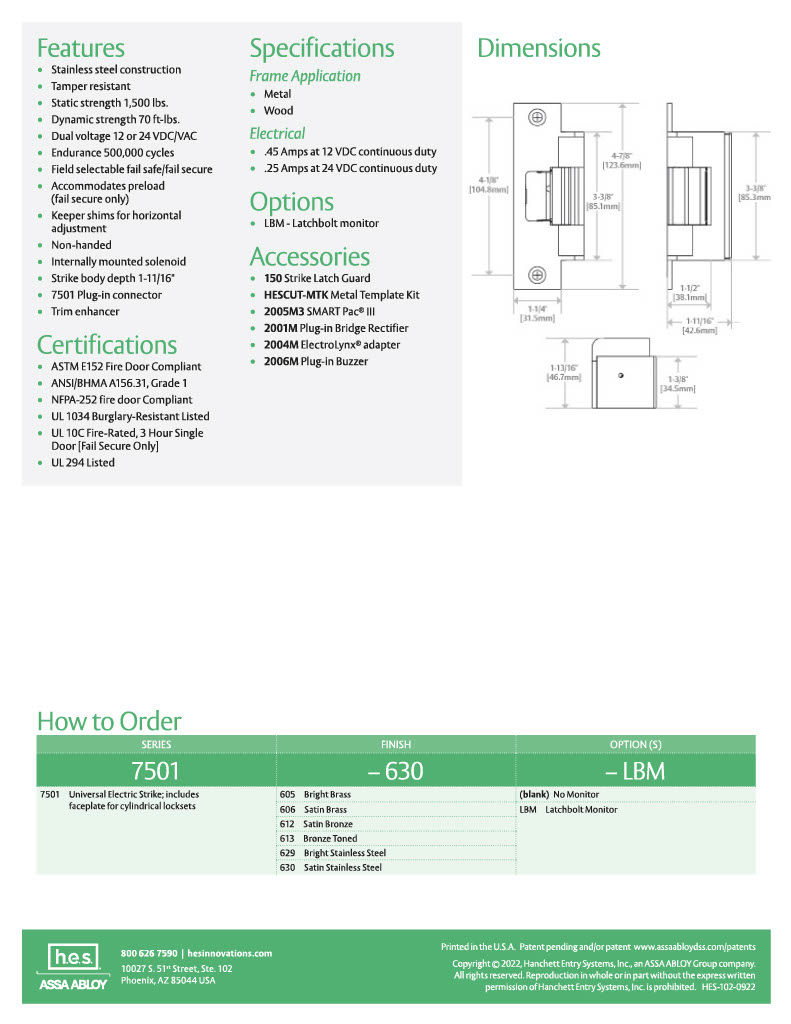

Standard Features

Stainless steel construction

Tamper resistant

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance 500,000 cycles

Field selectable fail safe/fail secure

Accommodates pre-load (fail secure only)

Keeper shims for horizontal adjustment

Non-handed

Internally mounted solenoid

Strike body depth 1-11/16"

Plug-in connector

Trim enhancer

Five year limited warranty

Finishes: 630 - Satin stainless, 605 - Bright brass, 606 - Satin brass, 612 - Satin bronze, 613 - Bronze toned, 629 - Bright stainless steel

Optional FeaturesLBM

• Latchbolt monitor

Model:HES, 750112605, 750112606, 750112612, 750112613, 750112629, 750112630, 750124605, 750124606, 750124612, 750124613, 750124629, 750124630, 750112LBM605, 750112LBM606, 750112LBM612, 750112LBM613, 750112LBM629, 750112LBM630, 750124LBM605, 750124LBM606, 750124LBM612, 750124LBM613, 750124LBM629, 750124LBM630, Electric Strike

Specifications

UL 10C, fire-rated, 3 hour (fail secure only)

CAN4-S104 (ULC-S104) fire door conformant

UL 1034, burglary-resistant listed

ANSI/BHMA A156.31, Grade 1

NFPA-252 fire door conformant, ASTM-E152 fire door conformant, MEA New York City accepted, Patent #5,484,180
