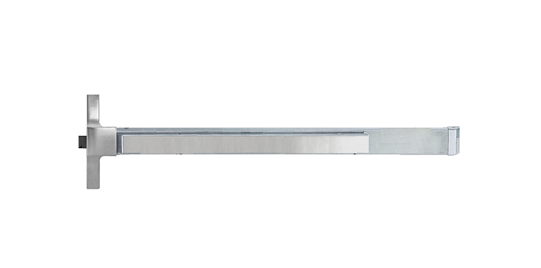

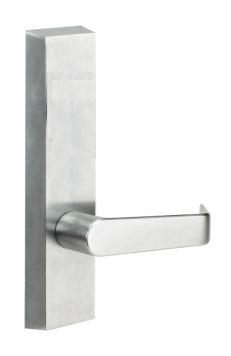

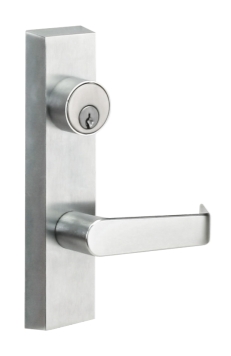

Cal-Royal GLS9800 / FGLS9800 Narrow Stile Rim Push Bar Exit Panic Device

Cal-Royal GLS9800 / FGLS9800 Narrow Stile Rim Type Panic And Fire Exit Devices

For Doors:Wood, Metal or Aluminum Glass doors with 1 3/4" minimum stile width, 1 3/4" thickness for single or double door application

Chassis:Non-ferrous Alloy (Panic Grade)

Cover:Non-ferrous plated material.

Mounting:Furnished with wood and machine screws. Thru-bolts available upon request.   Hand:Non-handed

Latch Bolt:Stainless Steel 3/4" throw

Spring:Stainless Steel throughout

ANSI Standard: A156.3, Grade 1

Rail Assembly:Heavy gauge extruded aluminum body with Stainless Steel push pad

Strike:246 packed standard. Optional 247 strike.

Dogging Feature:Available for 36" bar only. Allen-type key furnished standard.

For Electrical Latch Retraction:See Specification Tab

For Signal Switch:See Specification Tab

UL and ULC Listed*:*GLS9800 Series for Panic & Safety for all types of 4' x 8' single doors and 8' x 8' double doors. FGLS9800 Series for all types of 4' x 8' single doors for up to 3 hour fire labeled installations. Conforms to UL10C and UBC7-2-1997 codes.

Dnimensios:

Push Rail Height To Tinished Floor:41" (1041 mm) at center

Push Rail Projection:Neutral 2 3/4" (70 mm) - Depressed 1 7/8" (48 mm)

Center Case:8 1/16" x 1 - 1/8" x 2" (205 mm x 29 mm x 60 mm)

Model:GLS9800EO36 And FGLS9800EO36 Actual lenght: 34 17/32" Max cut down: 10" Door size:30" to 36" door width

Model:GLS9800EO48 And FGLS9800EO48 Actual lenght: 46 11/32" Max cut down: 12" Door size: 36 to 48 door width

Model: GLS9800EO36, FGLS9800EO36, GLS9800EO48 , FGLS9800EO48, US32D, US10B, US3

 (ELR) Electric Latch Retraction:

MUST USE CRP POWER SUPPLIES TO HONOR WARRANTY

Our motor driven electrified latch pullback exit device allows for remote keyless access control in high occupancy / high traffic conditions where exit devices are required. Common applications include conditions such as hospitals, airports, schools, churches and they are commonly specified in applications that require automatic door openers. The device may be continuously energized allowing for a push / pull condition if desired.

Features: Available on 7700 Series, including rim, vertical rod, concealed vertical rod, mortise exit device, fire and non fire-rated devices

MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues

"PTS" (Push to Set Technology): 5 second electronic adjustment for easy post installation adjustment

Electric dogging rated for continuous duty - Auto retraction if dogged push pad is pulled from position

Low Current Draw - Field switchable to "High Torque" mode

Up to 300" wire run with (2) 18ga wire - Long wire runs provides installer with convenience of placing the locking device power supply in a centralized location; i.e. the same closet as the access panel

8' cable with Quick Connect for MM4S module to easily connect to power supply lead

3-year "No Hassle" warranty

Specifications:

Voltage - 22 to 28V DC

System protection - unit shutdown when voltage exceeds 28V DC

Average In-rush Current - 900mA; Average Hold Current - 215mA

PTS adjustment - approx. 1/4"

Wire run: 300' with 18ga wire

Signal Switch RX and LX:

RX(request to exit) signal switch is used to signal the use of an opening from the push side. When the push pad is depressed, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the touch bar.

LX(latch bolt monitoring) signal switch monitors both egress and access of an opening. When the latch bolt is retracted, the switch is activated. These devices are equipped with an internal SPDT (single pole double throw) switch that monitors the latch bolt position.

LXandRXswitches can be combined.

LX, RXswitches can be used in combination with ELR (electric latch retraction) option.

Specifications:

RXorLXSwitch rated 0.5 amps @ 24V AC / DC resistive

Low currentRXorLX.Switch rated 0.5 amps @ 24V AC / DC resistive
