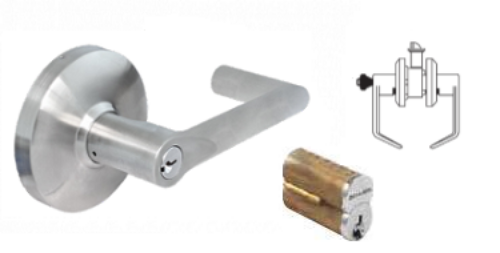

Cal-Royal ICC2-AUG03 Grade 2 Classroom Lock - Accepts SFIC Core

Cal-Royal ICC2-AUG03*Grade 2,ClassroomLock - Accepts Small-format Interchangeable Core (SFIC) (core not included) - With Clutch - ANSI F84*

Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.

CLUTCH:Free turning handle in the lock position without retracting the latch, to deter breaking of handle.

DOOR RANGES:1 ⅜" to 1 3/4" thickness. 2" to 2 1/4" thickness also available on request.

ANSI STANDARDS: Meets or exceeds BHMA/ANSI A 156.2 Series 4000, Grade 2 (FF-H 106C)

LATCH FACEPLATE:Standard 2 1/4" x 1 1/8" for 2 3/4" backset.

LATCH OPTIONS:2 3/4" standard, brass with 1/2" throw. 2 3/8", 3 3/4" and 5" backset optional. GND750 deadlatch reversible for flat and beveled door. 3/4" throw anti-friction deadlatch for pair of fire doors.

TRIM:Optional thru-bolted assembly through door with separate spring cage for each lever.

STRIKES:ASA 1 1/4" x 4 ⅞" standard. Other strikes available upon request.

HOUSING:Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛" diameter bore.

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

GENERAL: Full length 4 3/4" lever handle with ⅜" return. Rose diameter 3 ⅜". Key removable outside lever for fast re-keying. Non-handed levers. Concealed mounting screws.
