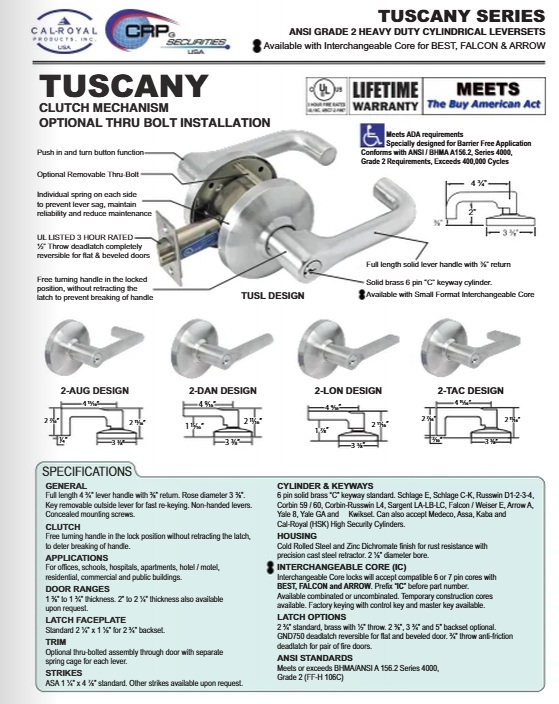

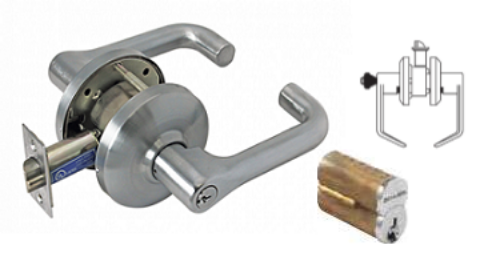

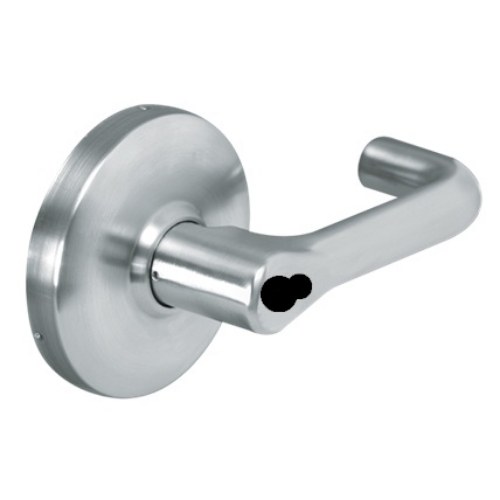

Cal-Royal ICCTUSL05 US26D Grade 2 Storeroom Lock - Accepts SFIC Core, Satin Chrome

Cal-Royal ICCTUSL05 US26D Grade 2, Storeroom Lock, Satin Chrome - Accepts Small-format Interchangeable Core (SFIC) (core not included) - With Clutch

ANSI F86

Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.

CLUTCH: Free turning handle in the lock position without retracting the latch, to deter breaking of handle.

DOOR RANGES: 1 ⅜" to 1 3/4" thickness. 2" to 2 1/4" thickness also available on request.

ANSI STANDARDS: Meets or exceeds BHMA/ANSI A 156.2 Series 4000, Grade 2 (FF-H 106C)

LATCH FACEPLATE: Standard 2 1/4" x 1 1/8" for 2 3/4" backset.

LATCH OPTIONS: 2 3/4" standard, brass with 1/2" throw. 2 ⅜", 3 3/4" and 5" backset optional. GND750 deadlatch reversible for flat and beveled door. 3/4" throw anti-friction deadlatch for pair of fire doors.

TRIM: Optional thru-bolted assembly through door with separate spring cage for each lever.

STRIKES: ASA 1 1/4" x 4 ⅞" standard. Other strikes available upon request.

HOUSING: Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛" diameter bore.

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

GENERAL: Full length 4 3/4" lever handle with ⅜" return. Rose diameter 3 ⅜". Key removable outside lever for fast re-keying. Non-handed levers. Concealed mounting screws.
