Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome

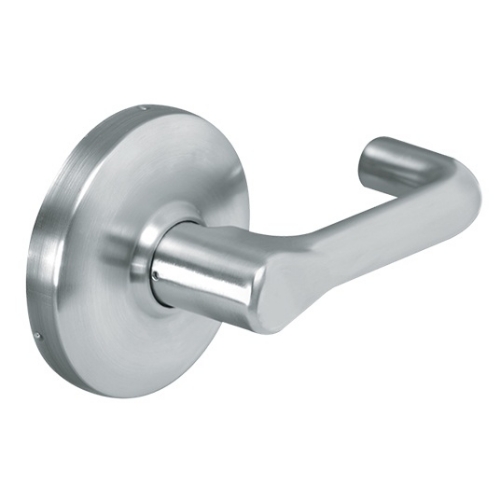

Picture of Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome
Picture of Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome
Picture of Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome
Picture of Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome
Picture of Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome
Picture of Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome
naxt
prev

Product Details

Cal-Royal TUSL50 US26D Grade 2, Exit Lock, Satin Chrome

ANSI F89

Blank plate outside. Inside lever always unlocked.

DOOR RANGES: 1 ⅜" to 1 3/4" thickness. 2" to 2 1/4" thickness also available on request.

ANSI STANDARDS: Meets or exceeds BHMA/ANSI A 156.2 Series 4000, Grade 2 (FF-H 106C)

LATCH FACEPLATE: Standard 2 1/4" x 1 1/8" for 2 3/4" backset.

LATCH OPTIONS: 2 3/4" standard, brass with 1/2" throw. 2 ⅜", 3 3/4" and 5" backset optional. GND750 deadlatch reversible for flat and beveled door. 3/4" throw anti-friction deadlatch for pair of fire doors.

TRIM: Optional thru-bolted assembly through door with separate spring cage for each lever.

STRIKES: ASA 1 1/4" x 4 ⅞" standard. Other strikes available upon request.

HOUSING: Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛" diameter bore.

GENERAL: Full length 4 3/4" lever handle with ⅜" return. Rose diameter 3 ⅜". Non-handed levers. Concealed mounting screws.



Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome

SKU: TUSL50 US26D

In Stock
Picture for manufacturer Cal-Royal
icon Chat

$84.03

Backset *

2-3/4" Backset (Standard)
2-3/4" Backset (Standard)
2-3/8" Backset
2-3/8" Backset

Strike *

ANSI Strike - 4-7/8" (Standard)
ANSI Strike - 4-7/8" (Standard)
T Strike - 2-3/4"
T Strike - 2-3/4"

About this item

Cal-Royal security locksets for commercial, and institutional uses. Our door locksets have been used for over 20 years and have been used in house design and remodeling, school and health care security, and other commercial locking applications.

Resources

No resources added to this product.

Cal-Royal TUSL50 US26D Grade 2, Exit Lock, Satin Chrome

ANSI F89

Blank plate outside. Inside lever always unlocked.

DOOR RANGES: 1 ⅜" to 1 3/4" thickness. 2" to 2 1/4" thickness also available on request.

ANSI STANDARDS: Meets or exceeds BHMA/ANSI A 156.2 Series 4000, Grade 2 (FF-H 106C)

LATCH FACEPLATE: Standard 2 1/4" x 1 1/8" for 2 3/4" backset.

LATCH OPTIONS: 2 3/4" standard, brass with 1/2" throw. 2 ⅜", 3 3/4" and 5" backset optional. GND750 deadlatch reversible for flat and beveled door. 3/4" throw anti-friction deadlatch for pair of fire doors.

TRIM: Optional thru-bolted assembly through door with separate spring cage for each lever.

STRIKES: ASA 1 1/4" x 4 ⅞" standard. Other strikes available upon request.

HOUSING: Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛" diameter bore.

GENERAL: Full length 4 3/4" lever handle with ⅜" return. Rose diameter 3 ⅜". Non-handed levers. Concealed mounting screws.



Picture of Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome
Cal-Royal TUSL50 US26D Grade 2 Exit Lock, Satin Chrome

Product code: TUSL50 US26D

In Stock

$84.03
