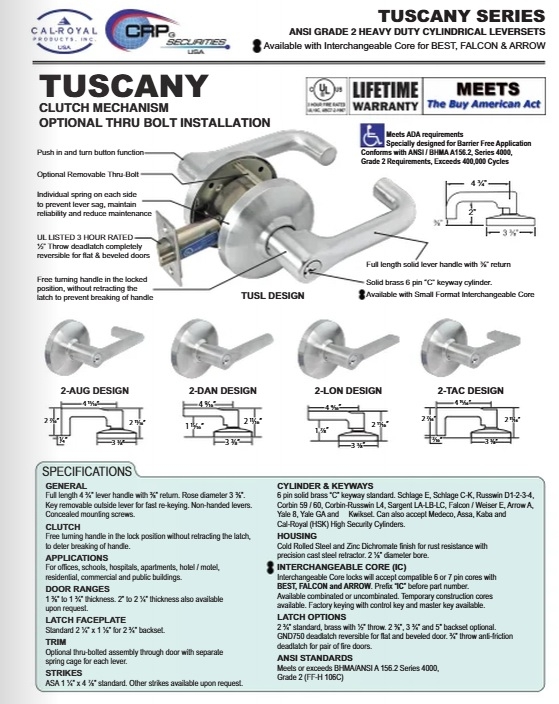

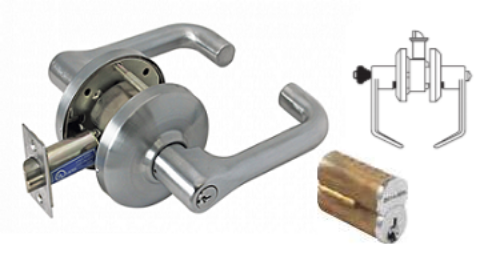

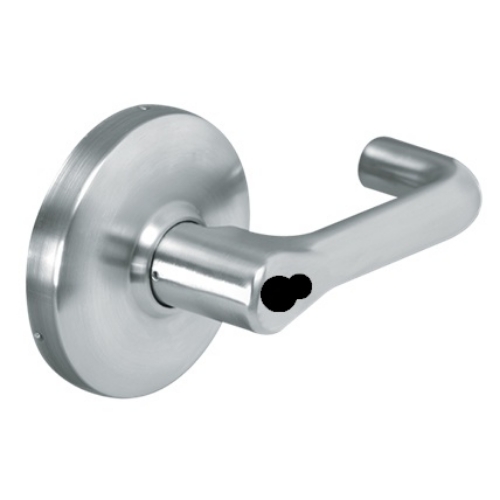

Cal-Royal ICCTUSL00 US26D Grade 2, Entrance Lock - Accepts SFIC Core, Satin Chrome

Cal-Royal ICCTUSL00 US26D Grade 2, Entrance Lock, Satin Chrome - Accepts Small-format Interchangeable Core (SFIC) (core not included) - With Clutch

ANSI F109

Turn / Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.

CLUTCH: Free turning handle in the lock position without retracting the latch, to deter breaking of handle.

GENERAL: Full length 4 3/4" lever handle with ⅜" return. Rose diameter 3 ⅜". Key removable outside lever for fast re-keying. Non-handed levers. Concealed mounting screws.

DOOR RANGES: 1 ⅜" to 1 3/4" thickness. 2" to 2 1/4" thickness also available on request.

ANSI STANDARDS: Meets or exceeds BHMA/ANSI A 156.2 Series 4000, Grade 2 (FF-H 106C)

LATCH FACEPLATE: Standard 2 1/4" x 1 1/8" for 2 3/4" backset.

TRIM: Optional thru-bolted assembly through door with separate spring cage for each lever.

STRIKES: ASA 1 1/4" x 4 ⅞" standard. Other strikes available upon request.

HOUSING: Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛" diameter bore.

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

LATCH OPTIONS: 2 3/4" standard, brass with 1/2" throw. 2 ⅜", 3 3/4" and 5" backset optional. GND750 deadlatch reversible for flat and beveled door. 3/4" throw anti-friction deadlatch for pair of fire doors.
