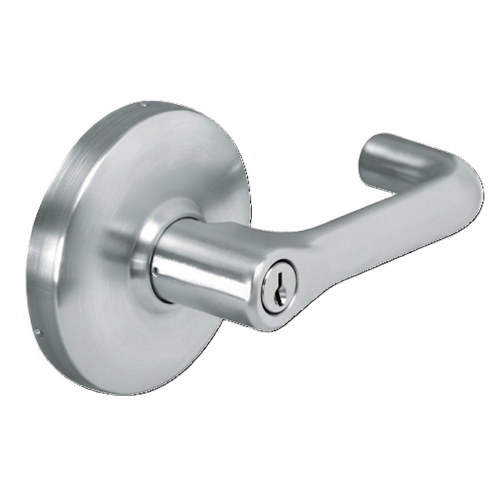

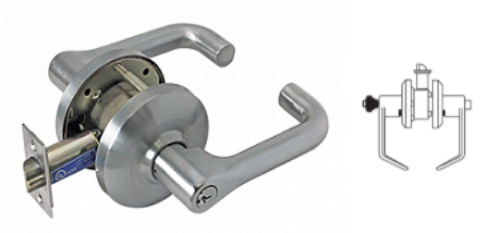

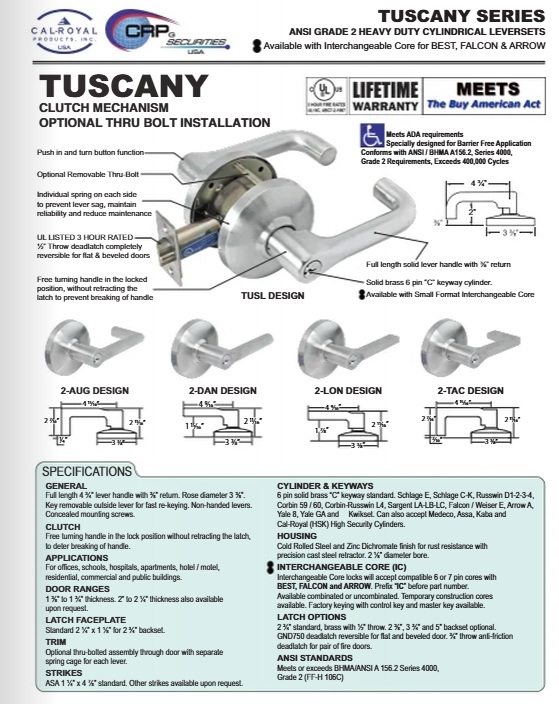

Cal-Royal CTUSL01 Grade 2, Entrance Push Button Lock

Cal-Royal CTUSL01 Grade 2,*Entrance Push Button Lock*- With Clutch - ANSI F82

Pushing button in inside lever locks outside lever. Turning inside lever or operating key in outside lever releases button automatically. Closing door does not release button. Button cannot be fixed in lock position. Inside lever always free. Latch bolt automatically deadlocks when door is closed.

CLUTCH:Free turning handle in the lock position without retracting the latch, to deter breaking of handle.

DOOR RANGES:1 ⅜" to 1 3/4" thickness. 2" to 2 1/4" thickness also available on request.

ANSI STANDARDS: Meets or exceeds BHMA/ANSI A 156.2 Series 4000, Grade 2 (FF-H 106C)

LATCH FACEPLATE:Standard 2 1/4" x 1 1/8" for 2 3/4" backset.

LATCH OPTIONS:2 3/4" standard, brass with 1/2" throw. 2 ⅜", 3 3/4" and 5" backset optional. GND750 deadlatch reversible for flat and beveled door. 3/4" throw anti-friction deadlatch for pair of fire doors.

TRIM:Optional thru-bolted assembly through door with separate spring cage for each lever.

STRIKES:ASA 1 1/4" x 4 ⅞" standard. Other strikes available upon request.

HOUSING:Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛" diameter bore.

Cylinders & Keyways:6 pin solid brass "C" keyway standard. GENERAL : Full length 4 3/4" lever handle with ⅜" return. Rose diameter 3 ⅜". Key removable outside lever for fast re-keying. Non-handed levers. Concealed mounting screws.
