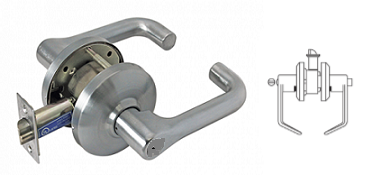

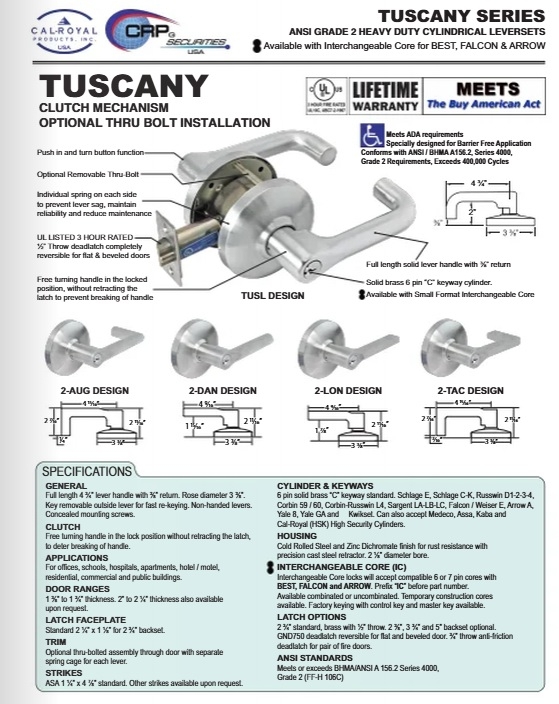

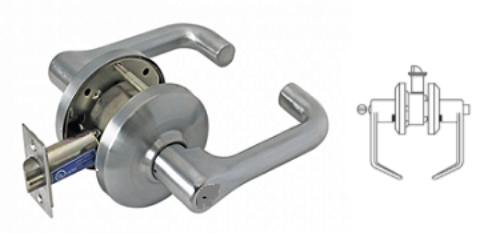

Cal-Royal CTUSL20 Grade 2 Privacy Lock

Cal-Royal CTUSL20 Grade 2,*Privacy*Lock - With Clutch - ANSI F76

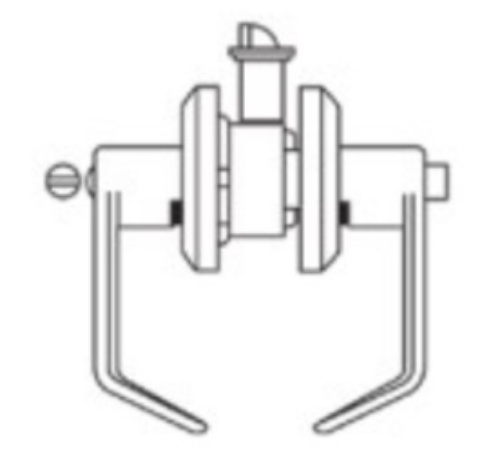

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door releases push button.

CLUTCH:Free turning handle in the lock position without retracting the latch, to deter breaking of handle.

DOOR RANGES:1 ⅜" to 1 3/4" thickness. 2" to 2 1/4" thickness also available on request.

ANSI STANDARDS: Meets or exceeds BHMA/ANSI A 156.2 Series 4000, Grade 2 (FF-H 106C)

LATCH FACEPLATE:Standard 2 1/4" x 1 1/8" for 2 3/4" backset.

LATCH OPTIONS:2 3/4" standard, brass with 1/2" throw. 2 ⅜", 3 3/4" and 5" backset optional. GND750 deadlatch reversible for flat and beveled door. 3/4" throw anti-friction deadlatch for pair of fire doors.

TRIM:Optional thru-bolted assembly through door with separate spring cage for each lever.

STRIKES:ASA 1 1/4" x 4 ⅞" standard. Other strikes available upon request.

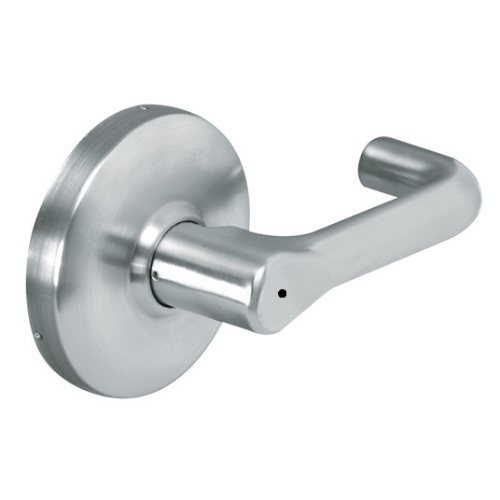

HOUSING:Cold Rolled Steel and Zinc Dichromate finish for rust resistance with precision cast steel retractor. 2 ⅛" diameter bore. GENERAL : Full length 4 3/4" lever handle with ⅜" return. Rose diameter 3 ⅜". Non-handed levers. Concealed mounting screws.
