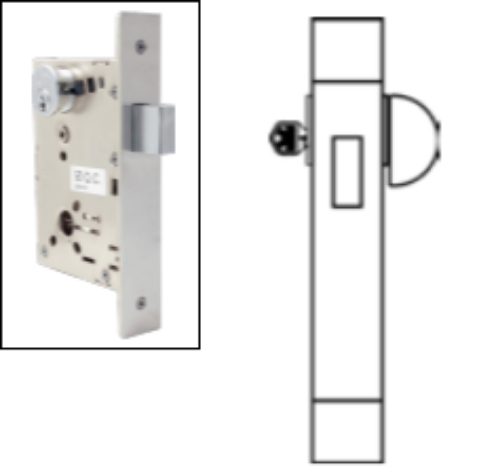

Cal Royal M8463 Heavy Duty Grade 1, Classroom Full Mortise Deadbolt Lockset

Cal Royal M8463*Heavy Duty Grade 1,ClassroomFull*Mortise Deadbolt Lockset

Function:  ANSI  F26 - Classroom -Deadbolt thrown or retracted by key from outside. Inside thumbturn cylinder retracts deadbolt but cannot project it.

Lock Case:4" x 5 3/4" x 1" (102 mm x 146 mm x 25.4 mm)

Face plate:1 1/4" x 8" x 1/8" (32 mm x 203 mm x 3.175 mm)

Strike:1 1/4" x 4 7/8" (32 mm x 124 mm)

Backset:2 3/4" ( 70 mm )

Door Range:1 3/4" ( 44 mm ), available to 2 1/4" (57 mm ). Specify thickness if other than 1 3/4".

Deadbolt:1" ( 25 mm ) throw, stainless steel, can withstand cutting or sawing

Cylinder:1 1/8" Mortise cylinder Schlage "C" (standard). Otherwise specify

Heavy Gauge Steel Lock Case

Brass Deadbolt with Hardened Steel Inserts 1" Throw

Architectural Finishes including stainless steel available Mortise Cylinder

Cylinder length is 1 1/8" (under shoulder including cam)

With clover leaf cam

Warranty:Lifetime warranty

Model:Cal Royal M8462
